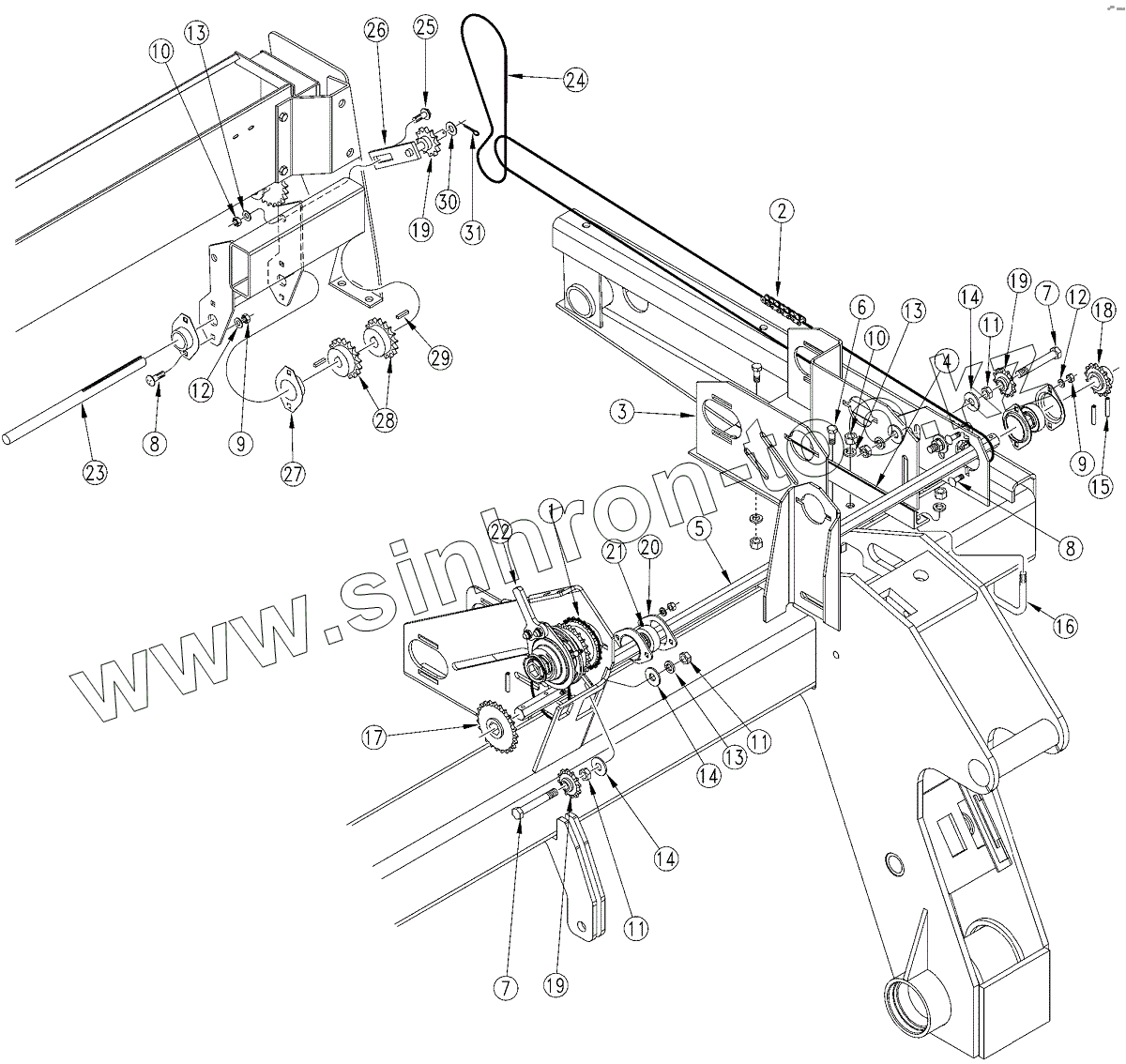

Каталог запасных частей к технике: Great Plains 2S-2600, 2S-2600F. Small Seeds Drive
1
2
3
3
4
5
6
7
7
8
8
9
9
10
10
11
11
11
12
12
13
13
13
14
14
14
15
16
17
18
19
19
19
20
21
22
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 136-064D | CHAIN RL | |
| 2 | 136-183D | CHAIN RL | |
| 3 | 195-145H | FERTILIZER DRIVE WELDMENT LH | |
| 3 | 195-250H | FERTILIZER DRIVE WELDMENT RH | |
| 4 | 195-212D | ANGLE, FERTILIZER DRIVE MOUNT | |
| 5 | 195-241D | AUXILIRY POWER HEX | |
| 6 | 802-034C | HHCS | |
| 7 | 802-041C | HHCS | |
| 8 | 802-282C | RHSNB | |
| 9 | 803-008C | NUT HEX | |
| 10 | 803-020C | NUT HEX | |
| 11 | 803-036C | NUT HEX JAM | |
| 12 | 804-009C | WASHER LOCK SPRING | |
| 13 | 804-015C | WASHER LOCK SPRING | |
| 14 | 804-113C | WASHER FLAT | |
| 15 | 805-180C | PIN ROLL | |
| 16 | 806-060C | U-BOLT | |
| 17 | 808-256C | SPKT | |
| 18 | 808-259C | SPKT | |
| 19 | 817-025C | NO | |
| 20 | 822-032C | FLANGETTE | |
| 21 | 822-119C | BRG | |
| 22 | 195-187K | LH WING CLUTCH ASSY | |
| 22 | 195-186K | RH WING CLUTCH ASSY | |
| 23 | 133-024D | RND SHAFT | |
| 24 | 136-104D | CHAIN RL | |
| 25 | 802-214C | RHSNB | |
| 26 | 133-051H | SLOTTED IDLER ARM | |
| 27 | 822-126C | BRG FLG | |
| 28 | 808-170C | SPKT | |
| 29 | 168-127D | KEY | |
| 30 | 804-016C | WASHER FLAT | |
| 31 | 805-067C | PIN COTTER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
