Каталог запасных частей к технике: Great Plains 1200TM - 4000TM. Rolling Harrow Assembly
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
7
7
7
7
7
7
8
8
8
8
9
9
9
9
10
10
10
11
11
12
12
13
13
13
14
14
14
14
14
14
14
15
15
15
16
16
16
17
17
17
18
18
19
19
20
21
22
22
23
23
24
24
25
25
25
26
26

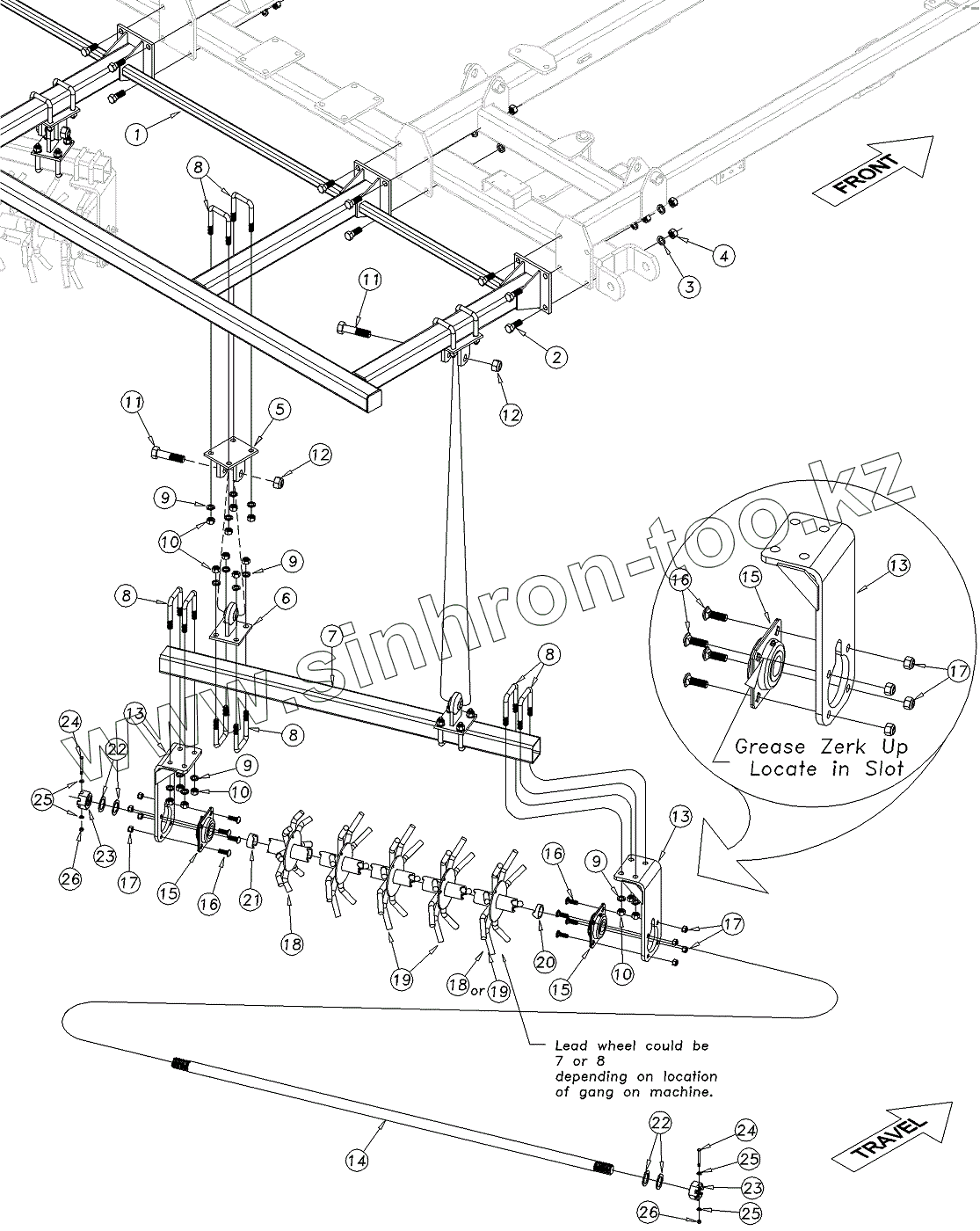

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 586-404H | CENTER DRAG FRAME 1500 | |
| 1 | 586-405H | CENTER DRAG FRAME 1200 | |
| 1 | 589-446H | 40 WING DRAG FRAME | |
| 1 | 589-442H | 35 WING DRAG FRAME | |
| 1 | 589-388H | WING DRAG FRAME 3000 | |
| 1 | 589-389H | WING DRAG FRAME 2400 | |
| 1 | 589-441H | 35-40 CTR DRAG FRAME | |
| 1 | 589-387H | CENTER DRAG FRAME | |
| 1 | 589-425H | CENTER DRAG FRAME | |
| 1 | 589-426H | WING DRAG FRAME 1800TM | |
| 2 | 802-064C | HHCS 3/4-10X2 GR5 | |
| 3 | 804-023C | WASHER LOCK SPRING | |
| 4 | 803-027C | NUT HEX | |
| 5 | 589-220H | BRACKET - ROLLING HARROW LH | |
| 6 | 589-064H | BALL JOINT BRACKET | |
| 7 | 578-001D | ROLLING SPIKE TUBE (52) | |
| 7 | 578-009D | ROLLING SPIKE TUBE (88) | |
| 7 | 578-006D | ROLLING SPIKE TUBE (82) | |
| 7 | 578-005D | ROLLING SPIKE TUBE (76) | |
| 7 | 578-004D | ROLLING SPIKE TUBE (70) | |
| 7 | 578-003D | ROLLING SPIKE TUBE (64) | |
| 7 | 578-002D | ROLLING SPIKE TUBE (58) | |
| 8 | 806-183C | U-BOLT 5/8-11X3 1/32X4 1/2 SPT | |
| 9 | 804-022C | WASHER LOCK SPRING | |
| 10 | 803-021C | NUT HEX | |
| 11 | 802-073C | HHCS 1-8X4 GR5 | |
| 12 | 803-038C | NUT HEX 1-8 NYLON INSERT PLT | |
| 13 | 589-257H | BEARING HANGER (LONG) | |
| 14 | 578-011D | ROLLING SPIKE BOLT (56 1/4) | |
| 14 | 578-012D | ROLLING SPIKE BOLT (62 1/4) | |
| 14 | 578-013D | ROLLING SPIKE BOLT (68 1/4) | |
| 14 | 578-014D | ROLLING SPIKE BOLT (74 1/4) | |
| 14 | 578-015D | ROLLING SPIKE BOLT (80 1/4) | |
| 14 | 578-016D | ROLLING SPIKE BOLT (86 1/4) | |
| 14 | 578-010D | ROLLING SPIKE BOLT (92.25) | |
| 15 | 822-208C | BRGFLG1.50ID4BOLTSQ | |
| 16 | 802-106C | RHSNB 1/2-13X1 1/2 GR5 | |
| 17 | 803-342C | NUT HEX TOP LOCK 1/2-13 PLT | |
| 18 | 589-251H | SPIKE WHEEL SMALL | |
| 19 | 589-258H | SPIDER WHEEL LARGE | |
| 20 | 890-860C | SPIDER WHEEL FRONT SPACER | |
| 21 | 890-861C | SPIDER WHEEL REAR SPACER | |
| 22 | 804-063C | WASHER MACH 2.25 X 1.50 X 10GA | |
| 23 | 803-301C | NUT HEX SLOTTED 1 1/2-6 PLT | |
| 24 | 802-804C | HHCS 1/4-20X2 3/4 GR8 PLT | |
| 25 | 804-007C | WASHER FLAT | |
| 26 | 803-255C | NUT HEX NYLOCK 1/4-20 |
