Каталог запасных частей к технике: Great Plains 1200, 1500, 2000. Small Seeds Y-Tube Drop

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 1200, 1500, 2000 (2017) 1200TM - 4000TM (2013) 2S-2600, 2S-2600F (2016) 3N-4010 (2016) 3S-4010HD (2017) CPH12, CPH15, CPH20 (2020) CTA4000 HD (2017) NP4000-1630 (2014) PH-15, PH-20, PFH-15, PFH-20 (2019)

Схема > Не выбрано 1200 Small Seeds Box Mount 1200 Small Seeds Box With Fertilizer 1500 Small Seeds Box Mount 1500 Small Seeds Box With Fertilizer 2000 Small Seeds Box Mount 2000 Small Seeds Box With Fertilizer Agitator Assembly (Option) Box to Frame (1200 S/N 1774D-)(1500 S/N 11780C-)(2000 S/N 8961B-) Box to Frame (1200 S/N 1775D+) (1500 S/N 11781C+) (2000 S/N 8962B+) Fertilizer Box Mount Fertilizer Lid Assembly Fertilizer Walkboard Lid To Box Parking Stand (Option) Seed Level Indicator Small Seeds Box & Lid Assembly Small Seeds Walkboard Walkboard Assembly Decal Placement Small Seeds Decal Placement Ball Valve Drill Boom Mounting Drill Boom Plumbing Spraying Systems Check Valve (829-089C) Agitator Drive Fertilizer Drive Gauge Wheel Drive Gearbox (890-282C) Gearbox And Gearbox Cover Jackshaft Drive Small Seeds Drive Small Seeds Drive With Fertilizer 1200 And 1500 Drive Gauge Wheel Arm (1993-2002) 1200 And 1500 Drive Gauge Wheel Arm (2003+) 1200 And 1500 Nondrive Gauge Wheel (1993-2002) 1200 And 1500 Nondrive Gauge Wheel (2003+) 2000 Drive Gauge Wheel Arm 2000 Nondrive Gauge Wheel 2000 Weight Bracket Drive Gauge Wheel Mount Gauge Wheel Axle Field Update Kits Gauge Wheel Tire Spring Tine Harrow (1994 <-> 1995) Spring Tine Harrow (1996 And Later) Energy Hydraulic Cylinder (810-005C) Flat Fold Dual Marker Hydraulics Flat Fold Marker Assembly Flat Fold Marker Hydraulic Cylinder (810-205C) Flat Fold Marker Saddle For 2000 Drills Flat Fold Marker Sequence Valve (810-197C) Flat Fold Marker Sequence Valve Hydraulics Marker Disc Assembly (113-563S) 1200 Drill Feeder Cup Spacing 1500 Drill Feeder Cup Spacing (Part 1) 1500 Drill Feeder Cup Spacing (Part 2) 1500 Drill Feeder Cup Spacing (Part 3) 2000 Drill Feeder Cup Spacing (Part 1) 2000 Drill Feeder Cup Spacing (Part 2) 2000 Drill Feeder Cup Spacing (Part 3) Feeder Cup Channel Fertilizer Metering Fertilizer Tray Adjustment Fertilizer Trays, Gates & Shafts Loup Shaft Monitor (2 Channel 116-282A) (3 Channel 116-283A) Seed Rate Handle Small Seeds Metering 5" & 6" Seed-Lok® (Option) Fertilizer Hose Retainer Option 00 Straight Arm Opener Option 10 Parallel Arm Opener Option 20 Series Opener (Aug. 31, 1997-) Option 20 Series Opener (Sept. 1, 1997+) Small Seeds Hose Retainer Small Seeds Hose Retainer With Fertilizer Small Seeds Y-Tube Drop Small Seeds Y-Tube Drop With Fertilizer Wiper Wheel 1" x 10" Double "V" Press Wheel (10/1/2000+) 1" x 10" Double "V" Press Wheel (9/30/2000-) 1" x 12" Double "V" Press Wheel 1" x 12" Press Wheel 2" x 13" Smooth Crown Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20' S/N 6099B-) 2" x 13" Smooth Crown Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20' S/N 6100B+) 3" x 13" Single "V" Crown Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20'S/N 6099B-) 3" x 13" Single "V" Crown Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20'S/N 6100B+) 3" x 14" Peaked Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20' S/N 6099B-) 3" x 14" Peaked Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20' S/N 6100B+) 4" x 12" "V" Groove Press Wheel Pull Hitch Frame Pull Hitch Tire & Hub

1

2

3

3

3

4

5

5

6

6

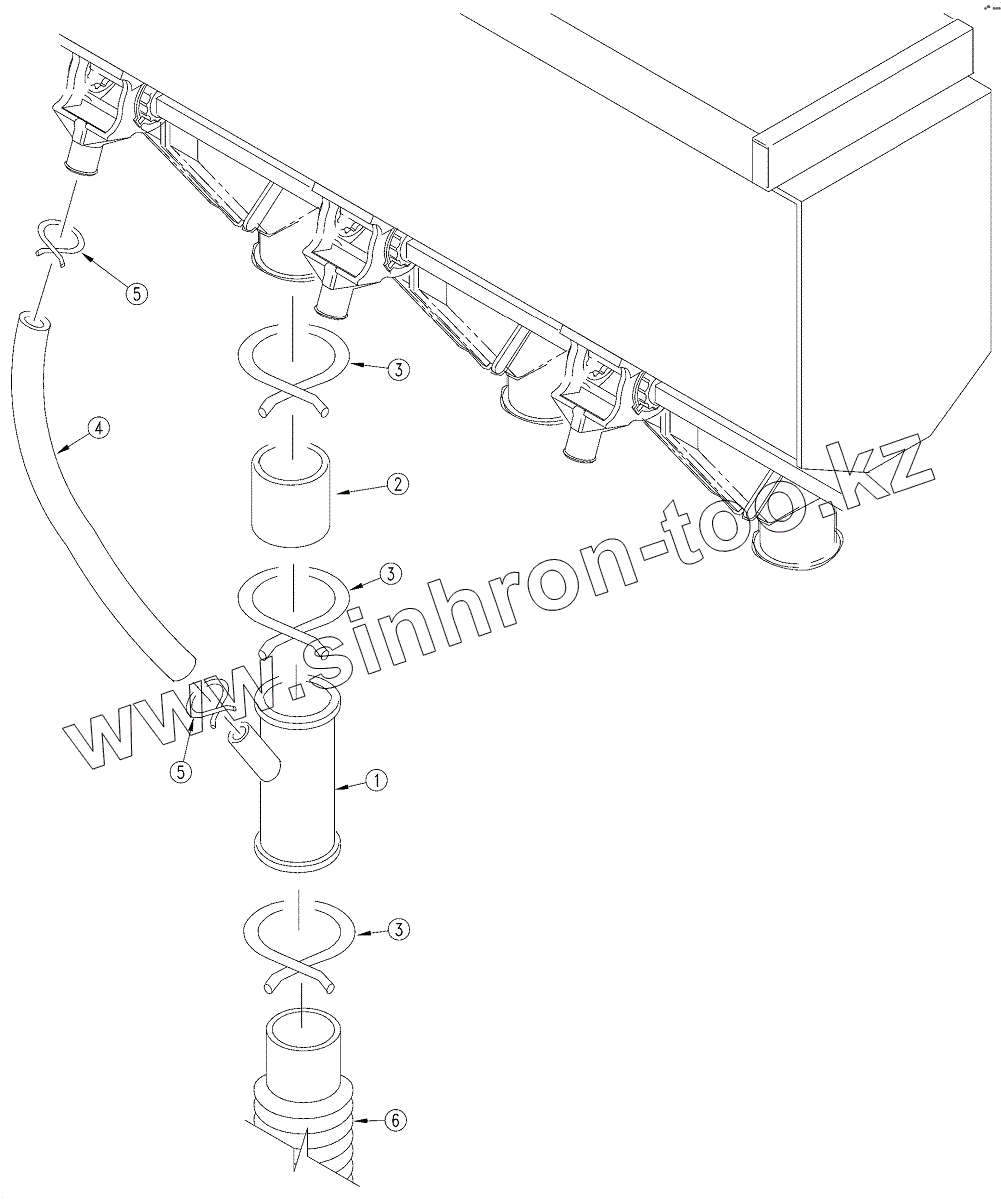

Позиция на иллюстрации	Заводской номер детали		Название детали
1	817-052C		GRASS SEED DROP TUBE
2	123-231D		GRASS SEED DROP TUBE CONN HOSE
3	800-009C		CLAMP HOSE
4	123-522D		GRASS SEED HOSE, 24IN.
5	800-029C		SINGLE WIRE HOSE CLAMP #14
6	816-114C		SEED HOSE 30 RIBS X7 1/2 LG
6	816-150C		SEED HOSE 22 RIBS 1.5-1.25

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
