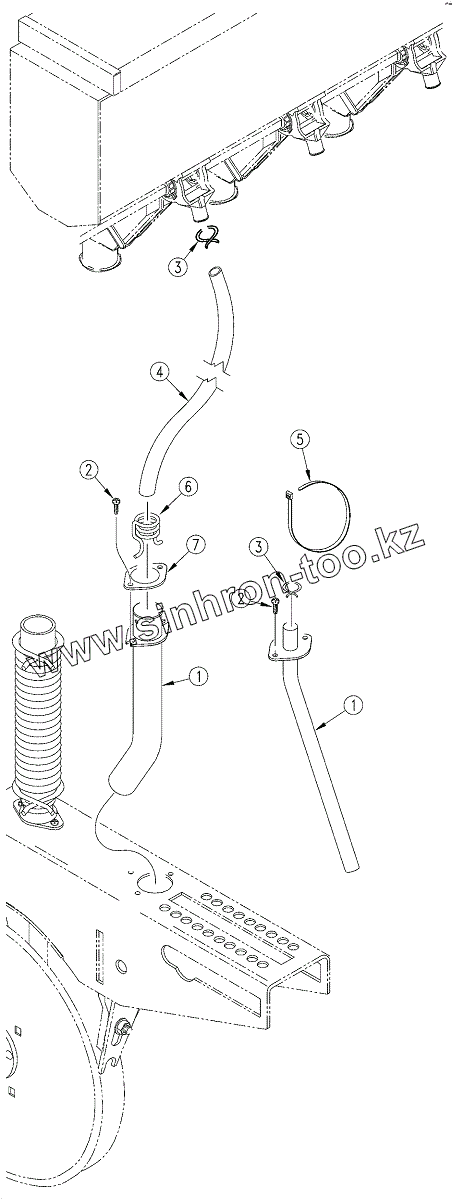

Позиция на иллюстрации
Заводской номер детали
Название детали
1
817-346C
PLASTIC FERTILIZER TUBE
1
123-939H
SMALL SEEDS TUBE WELDMENT
2
801-002C
SCREW HEX
3
800-029C
SINGLE WIRE HOSE CLAMP #14
4
123-232D
SML SDS HOSE 5/8 ID X 36LONG
4
123-521D
GRASS SEED HOSE, 40IN.
4
123-203D
SML SDS HOSE 5/8 ID X 56 LONG
4
816-358C
SGS HOSE
5
800-060C
CABLE TIE .19X14.25 3DIA 50LB
6
800-304C
SGS TUBE CLAMP
7
133-065D
SML SDS TB REINFORCEMENT RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
