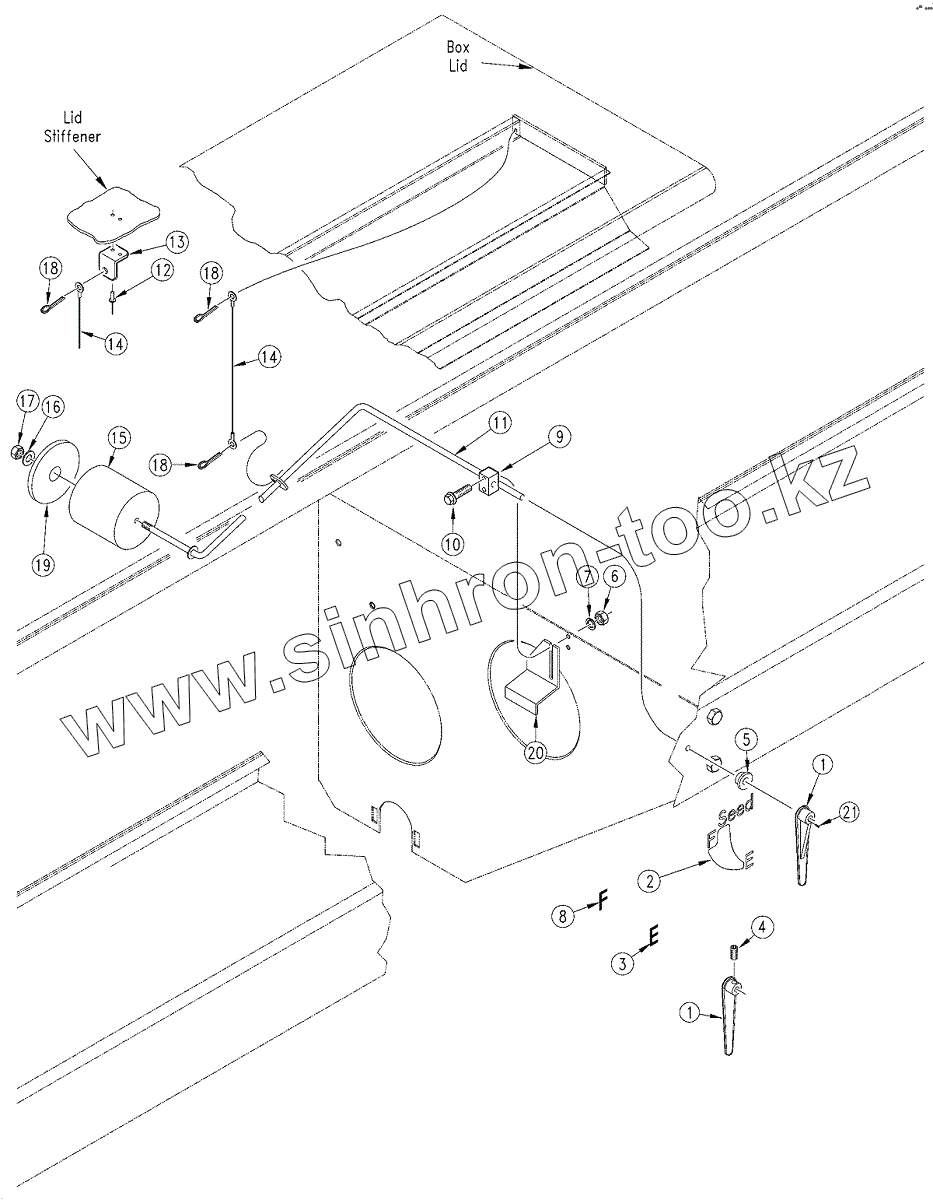

Каталог запасных частей к технике: Great Plains 1200, 1500, 2000. Seed Level Indicator
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
1200, 1500, 2000 (2017)
1200TM - 4000TM (2013)
2S-2600, 2S-2600F (2016)
3N-4010 (2016)
3S-4010HD (2017)
CPH12, CPH15, CPH20 (2020)
CTA4000 HD (2017)
NP4000-1630 (2014)
PH-15, PH-20, PFH-15, PFH-20 (2019)
Схема
>
Не выбрано
1200 Small Seeds Box Mount
1200 Small Seeds Box With Fertilizer
1500 Small Seeds Box Mount
1500 Small Seeds Box With Fertilizer
2000 Small Seeds Box Mount
2000 Small Seeds Box With Fertilizer
Agitator Assembly (Option)
Box to Frame (1200 S/N 1774D-)(1500 S/N 11780C-)(2000 S/N 8961B-)
Box to Frame (1200 S/N 1775D+) (1500 S/N 11781C+) (2000 S/N 8962B+)
Fertilizer Box Mount
Fertilizer Lid Assembly
Fertilizer Walkboard
Lid To Box
Parking Stand (Option)
Seed Level Indicator
Small Seeds Box & Lid Assembly
Small Seeds Walkboard
Walkboard Assembly
Decal Placement
Small Seeds Decal Placement
Ball Valve
Drill Boom Mounting
Drill Boom Plumbing
Spraying Systems Check Valve (829-089C)
Agitator Drive
Fertilizer Drive
Gauge Wheel Drive
Gearbox (890-282C)
Gearbox And Gearbox Cover
Jackshaft Drive
Small Seeds Drive
Small Seeds Drive With Fertilizer
1200 And 1500 Drive Gauge Wheel Arm (1993-2002)
1200 And 1500 Drive Gauge Wheel Arm (2003+)
1200 And 1500 Nondrive Gauge Wheel (1993-2002)
1200 And 1500 Nondrive Gauge Wheel (2003+)
2000 Drive Gauge Wheel Arm
2000 Nondrive Gauge Wheel
2000 Weight Bracket
Drive Gauge Wheel Mount
Gauge Wheel Axle Field Update Kits
Gauge Wheel Tire
Spring Tine Harrow (1994 <-> 1995)
Spring Tine Harrow (1996 And Later)
Energy Hydraulic Cylinder (810-005C)
Flat Fold Dual Marker Hydraulics
Flat Fold Marker Assembly
Flat Fold Marker Hydraulic Cylinder (810-205C)
Flat Fold Marker Saddle For 2000 Drills
Flat Fold Marker Sequence Valve (810-197C)
Flat Fold Marker Sequence Valve Hydraulics
Marker Disc Assembly (113-563S)
1200 Drill Feeder Cup Spacing
1500 Drill Feeder Cup Spacing (Part 1)
1500 Drill Feeder Cup Spacing (Part 2)
1500 Drill Feeder Cup Spacing (Part 3)
2000 Drill Feeder Cup Spacing (Part 1)
2000 Drill Feeder Cup Spacing (Part 2)
2000 Drill Feeder Cup Spacing (Part 3)
Feeder Cup Channel
Fertilizer Metering
Fertilizer Tray Adjustment
Fertilizer Trays, Gates & Shafts
Loup Shaft Monitor (2 Channel 116-282A) (3 Channel 116-283A)
Seed Rate Handle
Small Seeds Metering
5" & 6" Seed-Lok® (Option)
Fertilizer Hose Retainer
Option 00 Straight Arm Opener
Option 10 Parallel Arm Opener
Option 20 Series Opener (Aug. 31, 1997-)
Option 20 Series Opener (Sept. 1, 1997+)
Small Seeds Hose Retainer
Small Seeds Hose Retainer With Fertilizer
Small Seeds Y-Tube Drop
Small Seeds Y-Tube Drop With Fertilizer
Wiper Wheel
1" x 10" Double "V" Press Wheel (10/1/2000+)
1" x 10" Double "V" Press Wheel (9/30/2000-)
1" x 12" Double "V" Press Wheel
1" x 12" Press Wheel
2" x 13" Smooth Crown Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20' S/N 6099B-)
2" x 13" Smooth Crown Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20' S/N 6100B+)
3" x 13" Single "V" Crown Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20'S/N 6099B-)
3" x 13" Single "V" Crown Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20'S/N 6100B+)
3" x 14" Peaked Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20' S/N 6099B-)
3" x 14" Peaked Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20' S/N 6100B+)
4" x 12" "V" Groove Press Wheel
Pull Hitch Frame
Pull Hitch Tire & Hub
1
1
1
2
2
3
4
5
6
7
8
9
9
10
11
12
13
14
14
15
16
17
18
18
18
19
21
Позиция на иллюстрации
Заводской номер детали
Название детали
1
197-023H
INDICATOR OB RPLCD BY 817-350C
1
817-350C
SEED LEVEL INDICATOR
2
838-237C
DECAL SEED LEVEL LH
2
818-392C
DECAL SEED LEVEL, NOTCHED
3
818-295C
DECAL LETTER E
4
801-045C
SCREW SET 1/4-28X1/4 KNL CUP
5
817-086C
SEED LEVEL BUSHING
6
803-001C
NUT HEX
7
804-054C
WASHER LOCK#10
8
818-296C
DECAL LETTER F
9
817-202C
SEED LEVEL ARM MOUNT
9
197-090D
RPBY 817-202C
10
801-085C
SCR RD HD 10-24X1 1/2 LG PLT
11
118-474H
SEED LEVEL ARM, 6 3/4R. TAB
12
800-101C
RIVET POP
13
197-091D
SEED LEVEL CHAIN BRACKET
14
890-305C
CABLE
15
197-089D
FOAM FLOAT
16
804-075C
WASHER FLAT
17
803-003C
NYLOCK
18
805-067C
PIN COTTER
19
197-096D
FOAM FLOAT WASHER
20
118-498D
SEED FLOAT DOWN FLOAT STOP
21
801-154C
SCR HEX HD SHT MET
