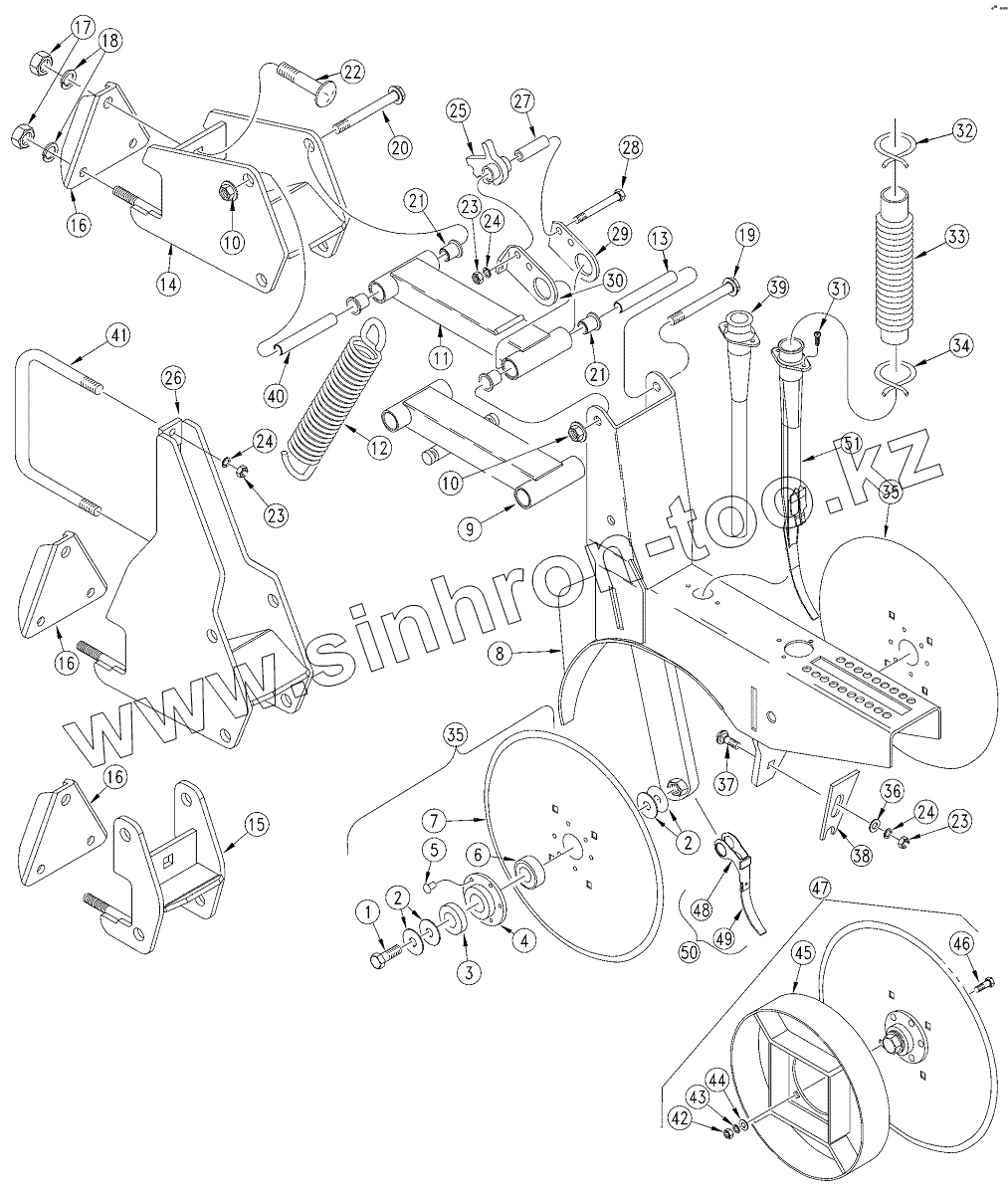

Каталог запасных частей к технике: Great Plains 1200, 1500, 2000. Option 10 Parallel Arm Opener
1
2
2
3
4
4
5
6
7
7
8
8
9
10
10
11
12
13
14
15
16
16
16
17
18
19
20
21
21
22
23
23
23
24
24
24
25
26
27
28
29
30
31
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 802-228C | HHCS | |
| 2 | 804-040C | WASHER MACH | |
| 3 | 107-111D | DD BRG FLANGE DUST COVER | |
| 4 | 890-452C | RPBY 107-112D | |
| 4 | 107-112D | BEARING FLANGE-3/16 DIA HOLES | |
| 5 | 800-212C | RIVET,BUTTON HEAD .203 X 9/16 | |
| 6 | 188-001V | BRG | |
| 7 | 107-134A | 13 1/2 BLADE UPDATE-1/4 RIVETS | |
| 7 | 820-080C | RPBY 107-134A | |
| 8 | 198-409H | PARALLEL LINKAGE OPENER WELD | |
| 8 | 198-092H | RPBY 198-946A | |
| 9 | 198-090H | BOTTOM PARALLEL ARM WELDMENT | |
| 10 | 803-169C | NUT HEX FLG. LOCK | |
| 11 | 198-089H | TOP PARALLEL ARM WELDMENT | |
| 12 | 807-116C | SPRING EXT 1 5/8OD X 6.6X.177 | |
| 13 | 198-139D | REAR PARALLEL ARM PIVOT TUBE | |
| 14 | 198-086H | 3PT PAR ARM OPENER REAR MNT | |
| 15 | 198-085H | 3PT PAR ARM OPENER FRNT MNT | |
| 16 | 198-179D | PARALLEL OPENER MOUNT PLATE | |
| 17 | 803-021C | NUT HEX | |
| 18 | 804-022C | WASHER LOCK SPRING | |
| 19 | 802-648C | HFS 1/2-13 X 5 1/4 | |
| 20 | 802-420C | HFS 1/2-13 X 5 1/2 | |
| 21 | 817-084C | PARALLEL ARM PIVOT BUSHING | |
| 22 | 802-415C | RHSNB 5/8-11 X 4 1/2 GR5 | |
| 23 | 803-014C | NUT HEX | |
| 24 | 804-013C | WASHER LOCK SPRING | |
| 25 | 812-204C | CASTING SPRING ADJUST | |
| 26 | 198-087H | 3PT PAR ARM OPNER EXTENDED MNT | |
| 27 | 198-134D | SPRING ADJUST PIVOT TUBE | |
| 28 | 802-147C | HHCS 3/8-16X3 1/2 GR5 | |
| 29 | 198-128D | SPRING ADJUST PLATE RH | |
| 30 | 198-127D | SPRING ADJUST PLATE LH | |
| 31 | 801-002C | SCREW HEX | |
| 32 | 800-009C | CLAMP HOSE | |
| 33 | 816-002C | RUBBER GRAIN TUBE | |
| 34 | 800-008C | CLAMP HOSE | |
| 35 | 107-138S | DD W/205 BRG-PLD FLNG-4MM | |
| 35 | 107-133S | RPBY | |
| 35 | 107-130S | RPBY 107-133S | |
| 36 | 804-012C | WASHER FLAT | |
| 37 | 802-015C | RHSNB | |
| 38 | 107-113D | D.D. SLOTTED SCRAPER | |
| 39 | 817-133C | PLASTIC OPENER SEED TUBE | |
| 40 | 198-140D | FRONT PARALLEL ARM PIVOT TUBE | |
| 41 | 806-051C | U-BOLT 3/8-16 X 6 1/32 X 7 | |
| 42 | 803-008C | NUT HEX | |
| 43 | 804-009C | WASHER LOCK SPRING | |
| 44 | 804-036C | WASHER FLAT | |
| 45 | 121-704H | 10 1/2 DEPTH BAND WLMT | |
| 46 | 802-029C | HHCS 7/16-14X1 1/2 GR5 | |
| 47 | 121-705A | 10 1/2 DEPTH BAND BUNDLE | |
| 48 | 121-164D | HEX SEED FLAP MOUNTING CLIP | |
| 49 | 816-302C | SEED FLAP, RUBBER, SEED-LOK | |
| 50 | 122-242S | SEED FLAP & HEX CLIP, SEEDLOK | |
| 51 | 817-314C | OPENER SEED TUBE, PLASTIC |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
