Каталог запасных частей к технике: Great Plains 1200, 1500, 2000. Fertilizer Drive
1
2
2
3
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
17
18
18
18
19
19
19
19
20
20
21
21
22
22
23
23
23
24
25
25
26
27
28
29
30
31
32
33
33
34
34
35
35
36
36
37
38
39
40
40

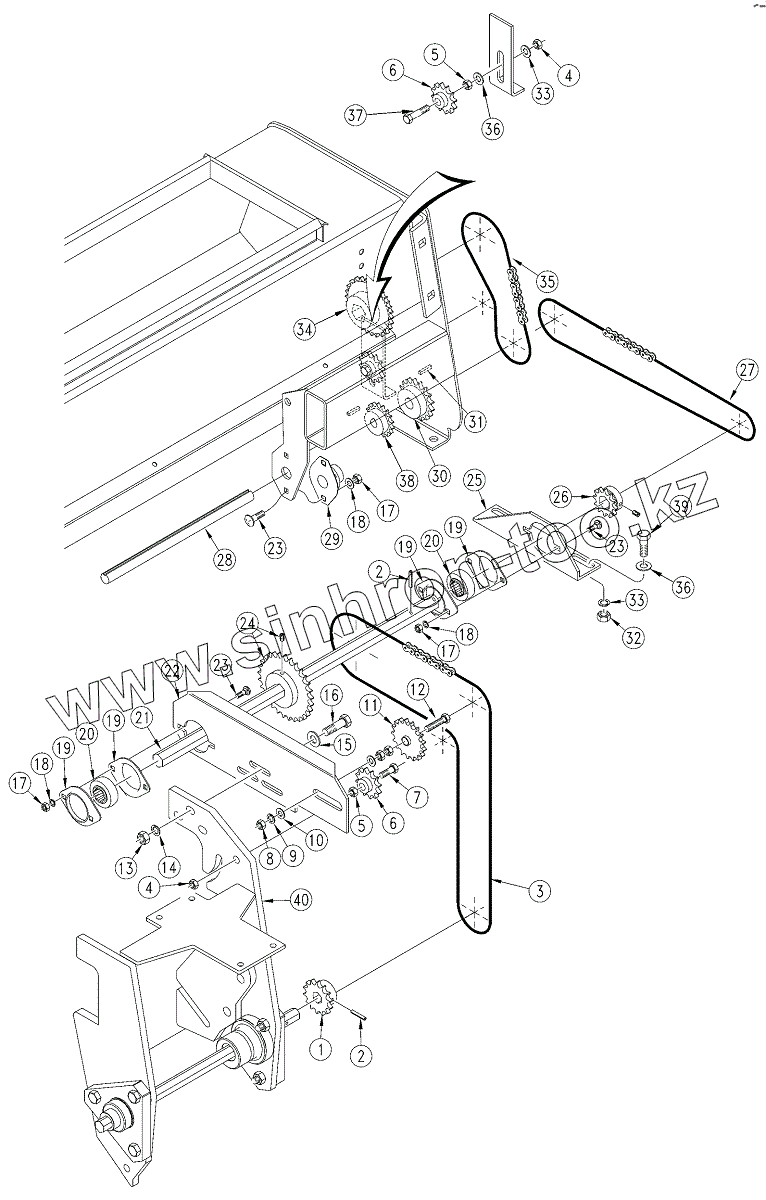

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 808-167C | SPKT 40B14 X 3/4 HEX BORE | |
| 2 | 805-023C | PIN ROLL | |
| 3 | 136-115D | CHAIN RL #40 142 PITCHES | |
| 3 | 809-147C | RPBY 136-115D | |
| 3 | 809-112C | CHAIN RL #40 X 132 PITCHES | |
| 4 | 803-178C | NUT NYLOCK JAM NUT 1/2-13 | |
| 5 | 803-036C | NUT HEX JAM | |
| 6 | 817-025C | NO | |
| 7 | 802-039C | HHCS | |
| 8 | 803-023C | NUT HEX JAM 5/8-11 PLT | |
| 9 | 804-022C | WASHER LOCK SPRING | |
| 10 | 804-019C | WASHER FLAT | |
| 11 | 808-046C | SPKT 40A17 IDLER | |
| 12 | 802-436C | HHCS 5/8-11X3 1/2 FTHD | |
| 13 | 803-014C | NUT HEX | |
| 14 | 804-013C | WASHER LOCK SPRING | |
| 15 | 804-011C | WASHER FLAT | |
| 16 | 802-022C | HHCS | |
| 17 | 803-008C | NUT HEX | |
| 18 | 804-009C | WASHER LOCK SPRING | |
| 19 | 822-032C | FLANGETTE | |
| 20 | 822-119C | BRG | |
| 21 | 120-226D | SHAFT HEX 7/8 X 18 1/4 | |
| 21 | 120-254D | 20' BEDDED IRRIGATION SHAFT | |
| 22 | 123-515D | IDLER AND BRG MOUNT PLATE | |
| 22 | 123-531D | IDLER AND BRG MNT PLT EXTENDED | |
| 23 | 802-282C | RHSNB | |
| 24 | 808-168C | SPKT 40B29 X 7/8 HEX BORE ANDSS | |
| 25 | 123-517D | REAR DRIVE BRG MOUNT PLATE LH | |
| 25 | 123-518D | REAR DRIVE BRG MOUNT PLATE RH | |
| 26 | 808-143C | SPKT | |
| 27 | 809-139C | CHAIN RL #40 X 100 PITCH W/CON | |
| 28 | 120-234D | RND SHAFT 3/4 X 13 3/8 W/KW | |
| 29 | 822-126C | BRG FLG | |
| 30 | 808-170C | SPKT | |
| 31 | 168-127D | KEY | |
| 32 | 803-020C | NUT HEX | |
| 33 | 804-015C | WASHER LOCK SPRING | |
| 34 | 808-086C | HEXBORE W/ SS | |
| 34 | 181-138D | RPBY 808-086C | |
| 35 | 136-059D | CHAIN RL #40 56 PITCHES | |
| 35 | 809-064C | RPBY 136-059D | |
| 36 | 804-016C | WASHER FLAT | |
| 37 | 802-044C | HHCS 1/2-13X4 GR5 | |
| 38 | 808-040C | SPKT 40B12 X 3/4 B W/KWANDSS | |
| 39 | 802-091C | HHCS | |
| 40 | 120-209H | GAUGE WHEEL MOUNT LH DRIVE | |
| 40 | 120-210H | GAUGE WHEEL MOUNT RH DRIVE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
