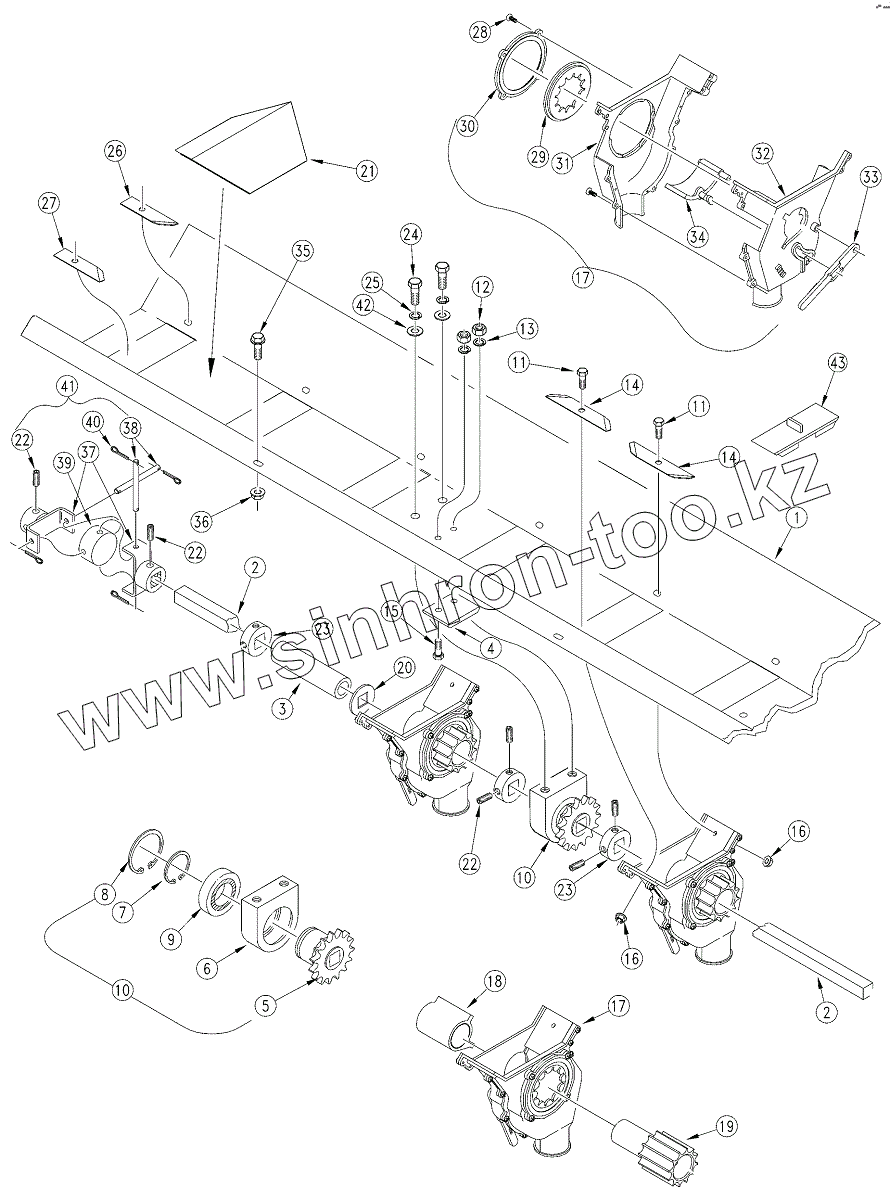

Каталог запасных частей к технике: Great Plains 1200, 1500, 2000. Feeder Cup Channel
1
2
2
3
4
5
5
6
7
8
9
10
10
11
11
12
13
14
14
15
16
16
17
17
18
19
19
20
21
22
22
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FEEDER CUP CHANNEL | FEEDER CUP CHANNEL | |
| 2 | FEEDER CUP SHAFT | FEEDER CUP SHAFT | |
| 3 | SPACER TUBE | SPACER TUBE | |
| 4 | 118-348D | RPBY 817-204C | |
| 5 | 118-508D | BEARING HUB | |
| 5 | 118-227E | RPBY 118-508D | |
| 6 | 118-336D | FEEDER CUP BEARING HOUSING | |
| 7 | 800-004C | SNAP RING EXT BASIC | |
| 8 | 800-107C | SNAP RING INTERNAL | |
| 9 | 822-103C | BRG | |
| 10 | 118-226S | FEEDER CUP BEARING ASSEMBLY | |
| 11 | 802-004C | HHCS | |
| 12 | 803-006C | NUT-HEX | |
| 13 | 804-006C | WASHER LOCK SPRING | |
| 14 | 118-341D | SEED BOX DIVIDER CLIP | |
| 15 | 802-078C | HHCS | |
| 16 | 803-194C | NUT HEX WHIZ | |
| 17 | 817-075C | SEED CUP ASSEMBLY | |
| 18 | 817-074C | SEED CUP SLEEVE | |
| 19 | 890-190C | PM SEED CUP SPROCKET | |
| 19 | 817-072C | RPBY 890-190C | |
| 20 | 804-031C | WASHER RETAINING | |
| 21 | BOX DIVIDER | BOX DIVIDER | |
| 22 | 801-035C | SCREW SET | |
| 23 | 182-022D | RPBY 890-350C | |
| 23 | 890-350C | SHAFT LOCKING COLLAR | |
| 24 | 802-014C | HHCS | |
| 25 | 804-013C | WASHER LOCK SPRING | |
| 26 | 118-453D | SEED BOX DIVIDER HALF CLIP LH | |
| 27 | 118-454D | SEED BOX DIVIDER HALF CLIP RH | |
| 28 | 801-057C | SCR SELF TAP | |
| 29 | 817-004C | NYLON WASHER-SPLIT | |
| 30 | 817-073C | SEED CUP WASHER RETAINER | |
| 31 | 817-068C | SEED CUP LEFT HALF | |
| 32 | 817-069C | SEED CUP RIGHT HALF | |
| 33 | 817-071C | SEED CUP ADJUSTMENT HANDLE | |
| 34 | 817-070C | SEED CUP DOOR | |
| 35 | 802-196C | HFSS | |
| 36 | 803-088C | NUT HEX LOCK | |
| 37 | 118-623H | FLEX COUPLER HUB AND PIN BRACKET | |
| 38 | 118-505D | COUPLER PIN | |
| 39 | 118-504D | FLEX COUPLER CENTER SLIDE | |
| 40 | 805-067C | PIN COTTER | |
| 41 | 118-624S | FLEX COUPLER ASSY-FIELD | |
| 42 | 804-012C | WASHER FLAT | |
| 43 | 817-087C | WIDE FEEDER CUP PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
