1" x 12" Press Wheel

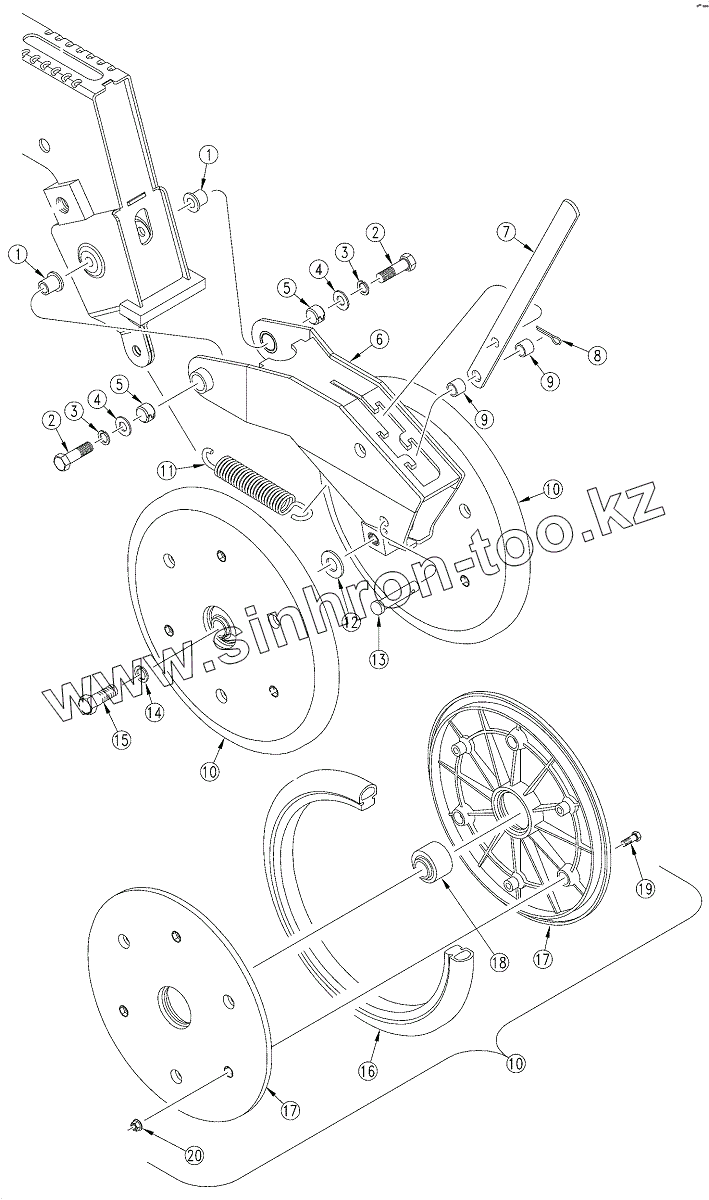

Каталог запасных частей к технике: Great Plains 1200, 1500, 2000. 1" x 12" Press Wheel
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
1200, 1500, 2000 (2017)
1200TM - 4000TM (2013)
2S-2600, 2S-2600F (2016)
3N-4010 (2016)
3S-4010HD (2017)
CPH12, CPH15, CPH20 (2020)
CTA4000 HD (2017)
NP4000-1630 (2014)
PH-15, PH-20, PFH-15, PFH-20 (2019)
Схема
>
Не выбрано
1200 Small Seeds Box Mount
1200 Small Seeds Box With Fertilizer
1500 Small Seeds Box Mount
1500 Small Seeds Box With Fertilizer
2000 Small Seeds Box Mount
2000 Small Seeds Box With Fertilizer
Agitator Assembly (Option)
Box to Frame (1200 S/N 1774D-)(1500 S/N 11780C-)(2000 S/N 8961B-)
Box to Frame (1200 S/N 1775D+) (1500 S/N 11781C+) (2000 S/N 8962B+)
Fertilizer Box Mount
Fertilizer Lid Assembly
Fertilizer Walkboard
Lid To Box
Parking Stand (Option)
Seed Level Indicator
Small Seeds Box & Lid Assembly
Small Seeds Walkboard
Walkboard Assembly
Decal Placement
Small Seeds Decal Placement
Ball Valve
Drill Boom Mounting
Drill Boom Plumbing
Spraying Systems Check Valve (829-089C)
Agitator Drive
Fertilizer Drive
Gauge Wheel Drive
Gearbox (890-282C)
Gearbox And Gearbox Cover
Jackshaft Drive
Small Seeds Drive
Small Seeds Drive With Fertilizer
1200 And 1500 Drive Gauge Wheel Arm (1993-2002)
1200 And 1500 Drive Gauge Wheel Arm (2003+)
1200 And 1500 Nondrive Gauge Wheel (1993-2002)
1200 And 1500 Nondrive Gauge Wheel (2003+)
2000 Drive Gauge Wheel Arm
2000 Nondrive Gauge Wheel
2000 Weight Bracket
Drive Gauge Wheel Mount
Gauge Wheel Axle Field Update Kits
Gauge Wheel Tire
Spring Tine Harrow (1994 <-> 1995)
Spring Tine Harrow (1996 And Later)
Energy Hydraulic Cylinder (810-005C)
Flat Fold Dual Marker Hydraulics
Flat Fold Marker Assembly
Flat Fold Marker Hydraulic Cylinder (810-205C)
Flat Fold Marker Saddle For 2000 Drills
Flat Fold Marker Sequence Valve (810-197C)
Flat Fold Marker Sequence Valve Hydraulics
Marker Disc Assembly (113-563S)
1200 Drill Feeder Cup Spacing
1500 Drill Feeder Cup Spacing (Part 1)
1500 Drill Feeder Cup Spacing (Part 2)
1500 Drill Feeder Cup Spacing (Part 3)
2000 Drill Feeder Cup Spacing (Part 1)
2000 Drill Feeder Cup Spacing (Part 2)
2000 Drill Feeder Cup Spacing (Part 3)
Feeder Cup Channel
Fertilizer Metering
Fertilizer Tray Adjustment
Fertilizer Trays, Gates & Shafts
Loup Shaft Monitor (2 Channel 116-282A) (3 Channel 116-283A)
Seed Rate Handle
Small Seeds Metering
5" & 6" Seed-Lok® (Option)
Fertilizer Hose Retainer
Option 00 Straight Arm Opener
Option 10 Parallel Arm Opener
Option 20 Series Opener (Aug. 31, 1997-)
Option 20 Series Opener (Sept. 1, 1997+)
Small Seeds Hose Retainer
Small Seeds Hose Retainer With Fertilizer
Small Seeds Y-Tube Drop
Small Seeds Y-Tube Drop With Fertilizer
Wiper Wheel
1" x 10" Double "V" Press Wheel (10/1/2000+)
1" x 10" Double "V" Press Wheel (9/30/2000-)
1" x 12" Double "V" Press Wheel
1" x 12" Press Wheel
2" x 13" Smooth Crown Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20' S/N 6099B-)
2" x 13" Smooth Crown Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20' S/N 6100B+)
3" x 13" Single "V" Crown Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20'S/N 6099B-)
3" x 13" Single "V" Crown Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20'S/N 6100B+)
3" x 14" Peaked Press Wheel (12' S/N 1412D-; 15' S/N 8876C- & 20' S/N 6099B-)
3" x 14" Peaked Press Wheel (12' S/N 1413D+; 15' S/N 8877C+ & 20' S/N 6100B+)
4" x 12" "V" Groove Press Wheel
Pull Hitch Frame
Pull Hitch Tire & Hub
1
1
2
2
3
3
4
4
5
5
6
7
8
9
9
10
10
10
11
12
13
14
15
16
17
17
18
19
20
Позиция на иллюстрации
Заводской номер детали
Название детали
1
890-524C
20 SER PW ARM PIVOT SPACER TB
2
802-029C
HHCS 7/16-14X1 1/2 GR5
3
804-014C
WASHER LOCK
4
804-041C
WASHER FLAT 7/16 SAE PLT
5
890-598C
BUSHING 3/4OD X 5/8ID X 1/2 LG
6
199-023H
1X12 PW OPENER PW MOUNT
7
199-011D
118-433DG HANDLE
8
805-067C
PIN COTTER
9
199-050D
LONG 1X12 PW HANDLE SPACER TB
10
814-174C
PRESS WHL ASSY
11
807-088C
SPRING EXT 1 5/8 OD X 8.2
12
804-040C
WASHER MACH
13
805-295C
PIN CLEVIS 7/16 X 2 9/64 USABL
14
804-022C
WASHER LOCK SPRING
15
802-058C
HHCS
16
814-034C
TIRE RUBBER
17
817-330C
PRESS WHEEL RIM HALF
18
822-170C
BRG
19
802-005C
HHCS
20
803-088C
NUT HEX LOCK
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
