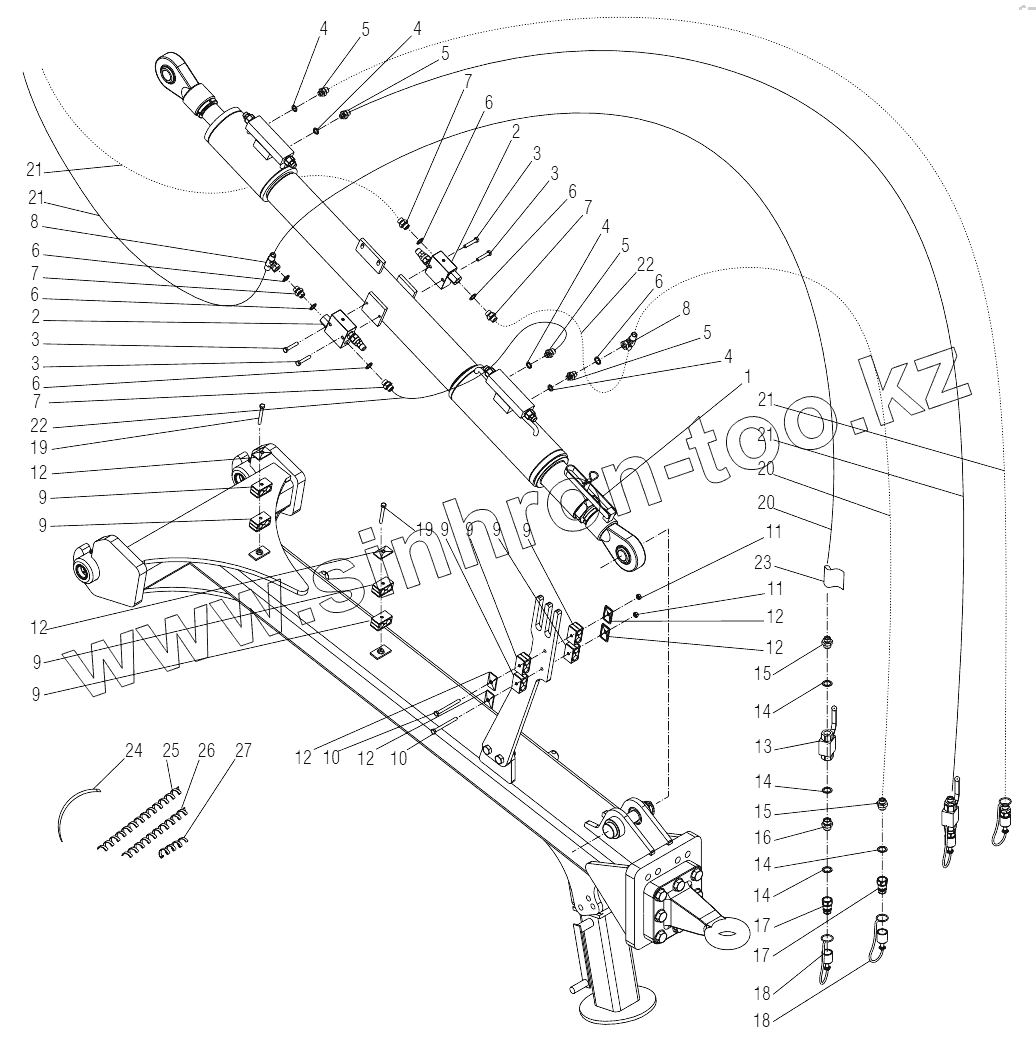

Каталог запасных частей к технике: Gaspardo UFO TZAR C. Hydraulic drawbar 600
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
6
6
6
6
7
7
7
7
8
8
9
9
9
9
9
9
9
9
10
10
11
11
12
12
12
12
12
12
13
14
14
14
14
15
15
16
17
17
18
18
19
19
20
20
21
21
21
21
22
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | R18150800 | Cylinder | |
| 2 | F03150597 | Valve seq. | |
| 3 | F01020451 | BOLT M8X45 | |
| 4 | F01500012 | WASHER | |
| 5 | F03150310 | Nipple galv.cyl.male | |
| 6 | F03100023 | Washer | |
| 7 | F03150321 | Nipple | |
| 8 | F03151221 | Connector | |
| 9 | F02350014 | Fixing block | |
| 10 | F01020088 | SCREW M8X1,25X90 U5737 8.8 ZN | |
| 11 | F01220022 | NUT M8X1,25 D980 8 ZN | |
| 12 | F03150993 | Plate | |
| 13 | F03150575 | Valve sfera | |
| 14 | F03151237 | COPPER WASHER 21X27X1,5 1/2 | |
| 15 | F03150222 | Nipple | |
| 16 | F03150255 | Niple | |
| 17 | F03150935 | QUICK CONNECT MALE CONE 1/2 | |
| 18 | F05150325 | COVER CONNECT F 1/2 RED | |
| 19 | F01020082 | Bolt | |
| 20 | F03050420 | Tube | |
| 21 | F03050421 | Tube | |
| 22 | F03050728 | Tube | |
| 23 | G19702910 | Label trailler move | |
| 24 | F05150058 | POLYAMIDE FASTENING STRAPS 9X5 | |
| 25 | F05150484 | Spiral guard | |
| 26 | F05150484 | Spiral guard | |
| 27 | F05150484 | Spiral guard |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
