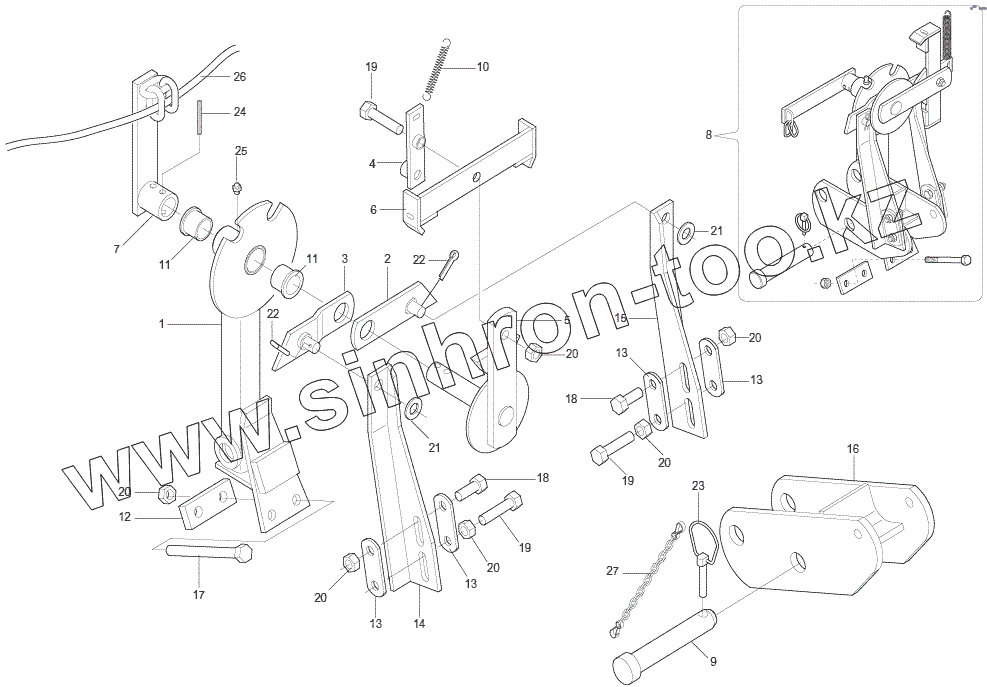

Каталог запасных частей к технике: Gaspardo SP DORADA. MECHANICAL ROW MARKER COMMAND
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
13
13
14
15
16
17
18
18
19
19
19
20
20
20
20
20
20
21
21
22
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 15410920 | COMMAND FOLDED | |
| 2 | 15410950 | LEVER FLAT | |
| 3 | 15410960 | LEVASTAMPATA | |
| 4 | 15410990 | LEVASCATTO ROW MARKER | |
| 5 | 15411110 | THE SUPPORT LEVER SNAP | |
| 6 | 15411120 | LATCH LEVERS COUPLING | |
| 7 | 15411130 | STATIONARY ROPES ROW MARKER | |
| 8 | 15411140 | AUTOMATIC RELEASE | |
| 9 | 15412340 | PLUG GASPARDO 25X128 | |
| 10 | 18902680 | SPRING TRAZ.ZN TANK | |
| 11 | 21120067 | BRONZE BUSHING | |
| 12 | 22220124 | CLASH | |
| 13 | 22220132 | CLASH OF ARMS | |
| 14 | 22270021 | ARM INF. SX COMMAND FOLDED | |
| 15 | 22270022 | ARM INF.DX COMMAND-ROW MARKER | |
| 16 | 13810341 | ATTACK COMMAND 3° POINT | |
| 17 | 41601068 | SCREW 12X140 5737 8.G * | |
| 18 | 41605050 | SCREW 12X30 5739 8.G ZN | |
| 19 | 41605054 | SCREW 12X50 5739 8.G ZN | |
| 20 | 43530008 | NUT 12 5588 6.8 ZN | |
| 21 | 44953006 | WASHER D14 UNI 6592 ZN | |
| 22 | 45961083 | PIN 5 X30 1336 ZN | |
| 23 | 45965007 | PLUG, SNAP-ON D 9 B/83 | |
| 24 | 46966127 | PLUG EL.8 X36 DIN 1481 | |
| 25 | 47969001 | GREASE NIPPLE BALL M6X1/A | |
| 26 | 63226001 | ROPE LEVILENE 10 | |
| 27 | 13812311 | CHAIN WITH CARABINER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
