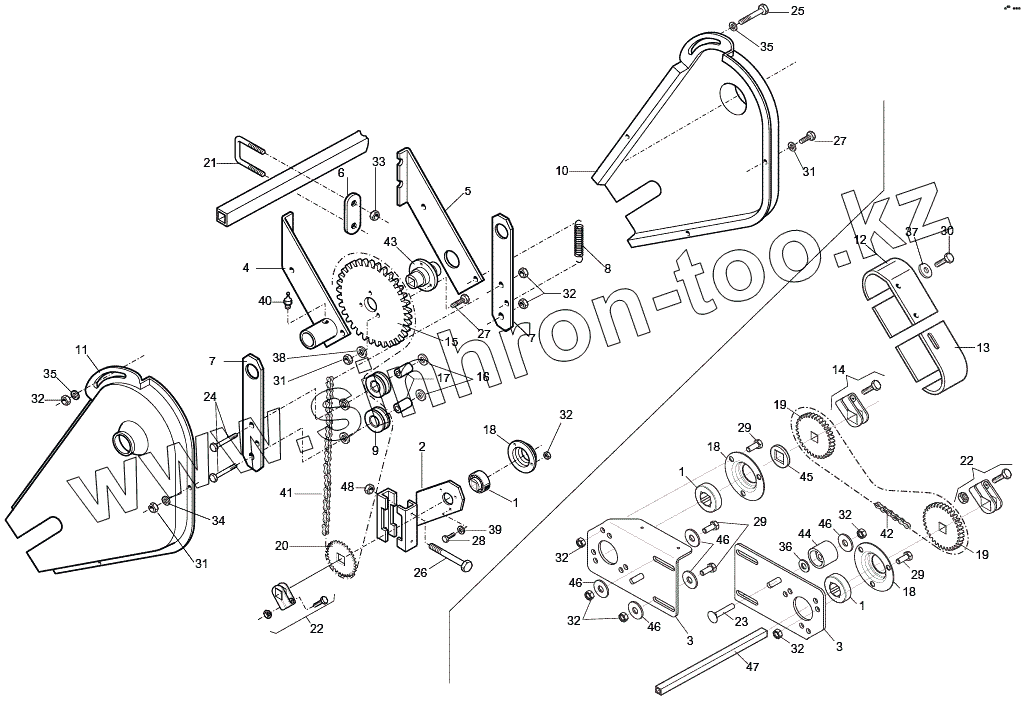

Каталог запасных частей к технике: Gaspardo SP DORADA. FERTILIZER SPREADER AND MICROGRANULATOR TRANSMISSION
1
1
1
2
3
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
19
20
21
22
22
23
24
25
26
27
27
28
29
29
29
30
31
31
31
32
32
32
32
32
32
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
46
46
46
47
47
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 14830390 | BEARING SQUARE HOLE | |
| 2 | 15470381 | SUPPORT REFERRAL FOR PIPE 150 | |
| 3 | 15470851 | SIDE SUPP.BROADCAST SPREADER | |
| 4 | 15475031 | SUPPORT TRANSMISSION LH | |
| 5 | 15475041 | SUPPORT TRANSMISSION DX | |
| 6 | 15475260 | CLASH | |
| 7 | 15475310 | SUPP ROLLER CHAIN TENSIONER MICRO | |
| 8 | 18902960 | SPRING TRAZ.TRANSMISSION WHEEL ZN | |
| 9 | 19000091 | SPOOL 2 META' | |
| 10 | 19002810 | CARTER REFERRAL MICRO DX | |
| 11 | 19002820 | CARTER REFERRAL MICRO SX | |
| 12 | 19002830 | TRANSMISSION CRANKCASE UPPER | |
| 13 | 19002880 | CARTER INF.BROADCAST SPREADER | |
| 14 | 20890115 | CLAMP PLASTIC COMPLETE | |
| 15 | 20890128 | CROWN Z-42 | |
| 16 | 20970032 | WASHER 32X4X8,5 | |
| 17 | 20980086 | BUSHING, DIST.D.8,5X16X31 | |
| 18 | 22230094 | BEARING SUPPORT | |
| 19 | 22250007 | GEAR HUB, 1/2-Z-20 | |
| 20 | 22250028 | PINION Z-15 | |
| 21 | 22250272 | U-BOLT DISC MEDIA. | |
| 22 | 22505085 | AXLE STOP PLATE | |
| 23 | 41182016 | SCREW 8 X45 5732 4.6 ZN | |
| 24 | 41602027 | SCREW 8 X55 5737 8.G ZN | |
| 25 | 41602030 | SCREW 8 X70 5737 8.G ZN | |
| 26 | 41602124 | SCREW 14X220 5737 8.G ZN | |
| 27 | 41605015 | SCREW 6 X16 5739 8.G ZN | |
| 28 | 41605027 | SCREW 8 X16 5739 8.G ZN | |
| 29 | 41605029 | SCREW 8 X20 5739 8.G ZN | |
| 30 | 41982002 | SCREW 4,2X25 DIN 7981 | |
| 31 | 43530004 | NUT 6 5588 6.8 ZN | |
| 32 | 43530006 | NUT 8 5588 6.8 ZN | |
| 33 | 43530007 | NUT 10 5588 6.8 ZN | |
| 34 | 44953002 | WASHER D6 UNI 6592 ZN | |
| 35 | 44953003 | WASHER D8 UNI 6592 ZN | |
| 36 | 44953004 | WASHER D10 UNI 6592 ZN | |
| 37 | 44953500 | ROND.FLAT 4.3 X 16X1,5 6593 ZN | |
| 38 | 44957004 | WASHER D6 DIN 6798 D. INT.ZN | |
| 39 | 44957006 | WASHER D8 DIN 6798 D. INT.ZN | |
| 40 | 47969001 | GREASE NIPPLE BALL M6X1/A | |
| 41 | 57158058 | CHAIN 1/2-3/16 107M.ISO 083-1 | |
| 42 | 57158030 | 'AN.CAT.1/2 ISO 083 56 LINKS | |
| 43 | 66248152 | HUB, TRANSMISSION MICRO | |
| 44 | 66248207 | CHAIN SPREADER | |
| 45 | 66248218 | SPACER SPREADER | |
| 46 | 44953503 | ROND.FLAT 9X 24X2 6593 ZN | |
| 47 | 22230138 | AXIS TRANSMISSION L. 1000 | |
| 47 | 22230142 | AXIS TRANSMISSION L. 800 | |
| 47 | 22270049 | AXIS TRANSMISSION L. 1260 | |
| 48 | 43530009 | NUT 14 5588 6.8 ZN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
