Каталог запасных частей к технике: Gaspardo SI. FRAME SI TC
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
21
22
23
23
23
24
24
25
26
26
27
28
29
29
30
31
31
32
32
33
33
34
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
48
49
50
51
52

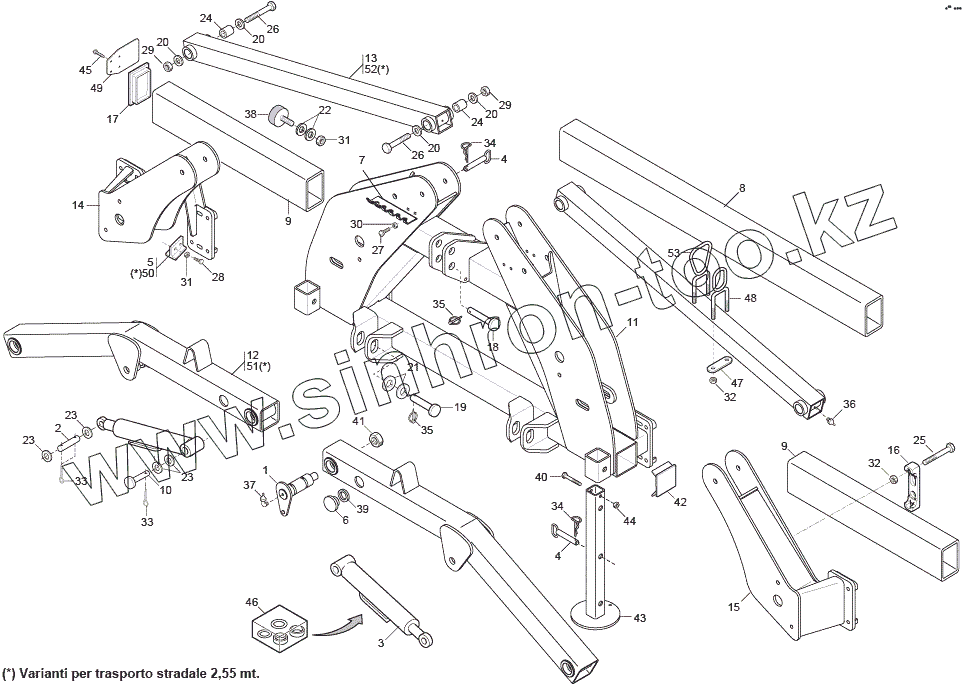

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | G14217540 | ROTATION PIN | |
| 2 | G14215270 | BOTTOM CYLINDER PIN | |
| 3 | G14215302 | Cylinder | |
| 4 | G14215360 | Pin | |
| 5 | G14215570 | Mobile frame stop | |
| 6 | G19003570 | Sliding plate | |
| 7 | G14217560 | Pipe support | |
| 8 | G14217260 | Rectangular pipe | |
| 9 | G14217270 | Rectangular pipe | |
| 10 | G14217470 | BOTTOM CYLINDER PIN | |
| 11 | G14217255 | SUPPORTING FRAME SHORT | |
| 12 | G14216613 | Lower arm | |
| 13 | G14216641 | Top arm | |
| 14 | G14217223 | RIGHT MOBILE FRAME SUPPORT | |
| 15 | G14217243 | LEFT MOBILE FRAME SUPPORT | |
| 16 | G19204030 | SCONTRO FISS.150 2F D15 | |
| 17 | G15211571 | PLUG PIPE 150X100 | |
| 18 | F20100063 | Pin gaspardo | |
| 19 | F20100074 | PIN FOR BAR LINKAGE | |
| 20 | G20970043 | Washer | |
| 21 | G20970120 | WASHER 70X8X28-5 | |
| 22 | G18701530 | WASHER 13X48X4 ZN | |
| 23 | G18701580 | Washer | |
| 24 | G18801380 | Bushing | |
| 25 | F01020225 | SCREW M14X160 5737 8.G | |
| 26 | F01020322 | Screw | |
| 27 | F01020476 | SCREW M10X1,5X30 5739 8.8 ZN | |
| 28 | F01020510 | BOLT M12X30 | |
| 29 | F01230131 | NUT M20X2,5 D982 6 ZN | |
| 30 | F01200270 | NUT M10X1,5 U5588 6.8 ZN | |
| 31 | F01200293 | NUT M12X1,75 U5588 6.8 ZN | |
| 32 | F01200306 | NUT M14X2 | |
| 33 | F02200246 | PIN 6X45 U1336 ZN | |
| 34 | F02200374 | Spring split pin | |
| 35 | F02200507 | SNAP PIN D9 B/83 ZN | |
| 36 | F01100011 | GREASE NIPPLE M6X1 7663-A ZN | |
| 37 | F01100061 | Grease nipple | |
| 38 | F05150459 | BUFFER-CYL. 75X25 M12 781103 | |
| 39 | G18701770 | Washer | |
| 40 | F01020166 | Screw | |
| 41 | F01230291 | Self-lock nut | |
| 42 | G15413210 | Frame cap | |
| 43 | G14219120 | PROP | |
| 44 | F01220048 | NUT M12X1,75 D980 8 ZN | |
| 45 | F01070078 | Selfthreading bolt | |
| 46 | F03100178 | Kit o-ring cylinder | |
| 47 | G22500070 | STRIKER PLATE FAN SUPP. | |
| 48 | G14215951 | PIPE GUIDE | |
| 48 | G14217110 | PIPE GUIDE - 3 PIPES | |
| 49 | G19002770 | SPINDLE PROTECTION | |
| 50 | G14218890 | Frame stop | |
| 51 | G14218851 | Lower arm long | |
| 52 | G14218830 | Long support arm coupling |
