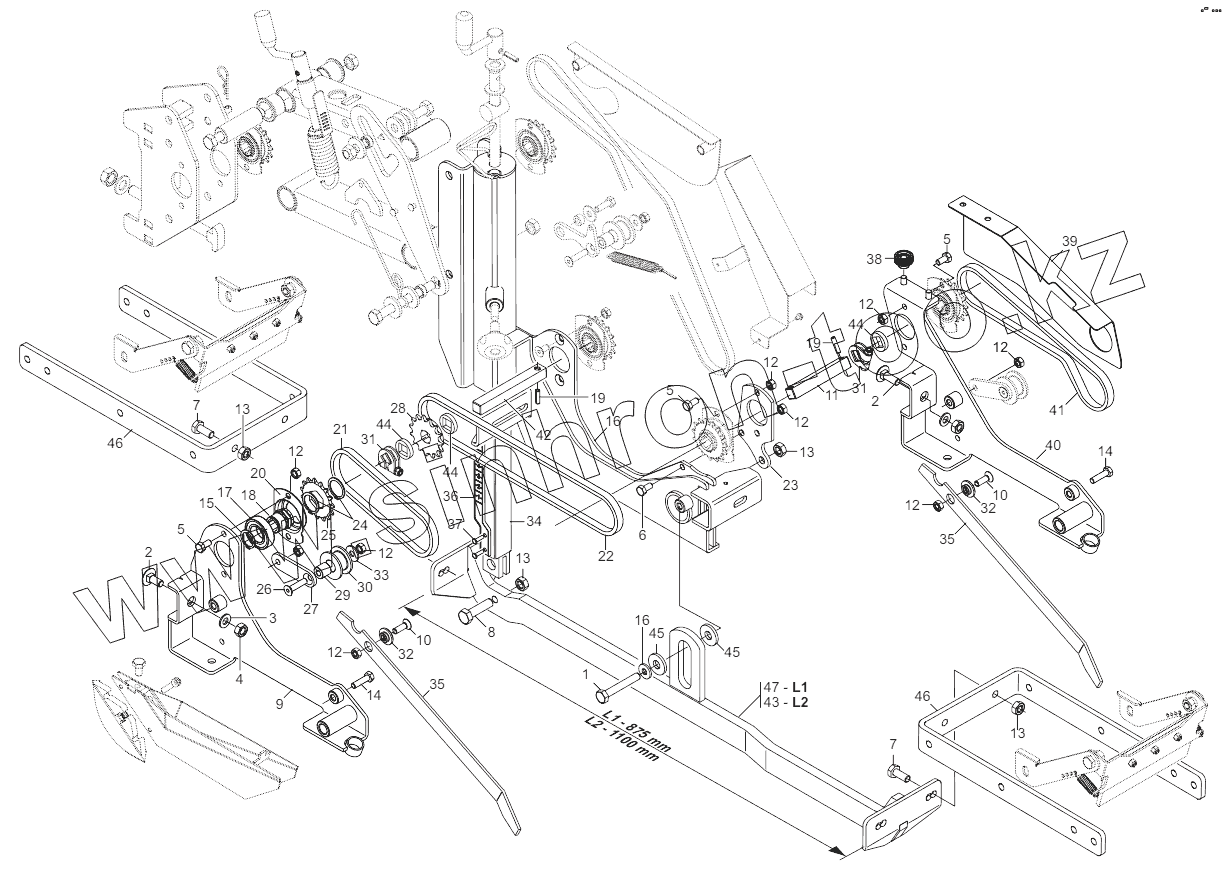

Каталог запасных частей к технике: Gaspardo Сеялка OLIMPIA, ORIETTA-C. VARIANTI ELEMENTO OLIMPIA «W»
1
2
2
3
4
5
5
5
6
7
7
8
9
10
10
11
12
12
12
12
12
12
12
12
13
13
13
14
14
15
16
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
33
34
35
35
36
37
38
39
40
41
42
43
44
44
44
45
45
46
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | F01020122 | BOLT 10X1,5X70 U5737 8.8 ZB | |
| 2 | F01060069 | Bolt | |
| 3 | F01410064 | WASHER M10 10,5X20X2 U6592 ZN | |
| 4 | F01200270 | NUT M10X1,5 U5588 6.8 ZN | |
| 5 | F01020432 | BOLT M8X16 | |
| 6 | F01020440 | BOLT M8X1,25X25 U5739 8.8 ZN | |
| 7 | F01020472 | BOLT 10X25 5739 8.G GALVANIZED | |
| 8 | F01020485 | Screw | |
| 9 | G15827700 | Attacco distributore ant. | |
| 10 | F01030056 | Bolt | |
| 11 | G15881260 | Shaft | |
| 12 | F01200244 | NUT M8X1,25 U5588 6.8 ZN | |
| 13 | F01200270 | NUT M10X1,5 U5588 6.8 ZN | |
| 14 | F01020445 | BOLT M8X30 | |
| 15 | F02050101 | SEEGER RING E. 25X1,2 7435 C70 | |
| 16 | F01410064 | WASHER M10 10,5X20X2 U6592 ZN | |
| 17 | F04010135 | Bearing | |
| 18 | G22250441 | PLANTING UNIT CROWN HUB SV/2 | |
| 19 | F02100109 | PIN EL. .6X24 DIN 1481 | |
| 20 | G15725030 | Bearing support | |
| 21 | F06080016 | Chain | |
| 22 | F06080197 | CHAIN 1/2 ISO 083 58 LINKS | |
| 23 | GA5820400 | Supporto cuscinetto olimpia w | |
| 24 | F02050615 | STOP RING 28 UNI 7435-75 | |
| 25 | G22250190 | PLANTING UNIT AXLE Z-15 RING G | |
| 26 | F01030060 | Bolt | |
| 27 | G15835360 | Braccio tendicatena | |
| 28 | G22250028 | Z-15 PINION SV | |
| 29 | G18801450 | Bushing | |
| 30 | G19005110 | Rullo tendicatena | |
| 31 | G22505085 | PLATE AXLE STOP | |
| 32 | G15821110 | Seed cover supp. Bushing | |
| 33 | F01420048 | WASHER M8 8,4X24X2 U6593 ZN | |
| 34 | G15881140 | Ass.tubo regolaz.profondita | |
| 35 | G15827811 | Copriseme | |
| 36 | G19003400 | Depth indicating rod | |
| 37 | F01070050 | Bolt | |
| 38 | F06220037 | Volantino | |
| 39 | G15881250 | Carter | |
| 40 | G15827860 | Attacco distributore post. | |
| 41 | F06080023 | Cut-down chain . | |
| 42 | G15829630 | Transmission axle | |
| 43 | GA5820350 | Bilanciere sagomato | |
| 44 | G66248218 | MAN. SPR. SPACER WASHER | |
| 45 | G19005460 | Rocker bushing | |
| 46 | GA5820310 | Supporto ruota compress. | |
| 47 | GA5820320 | Bilanciere sagomato |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
