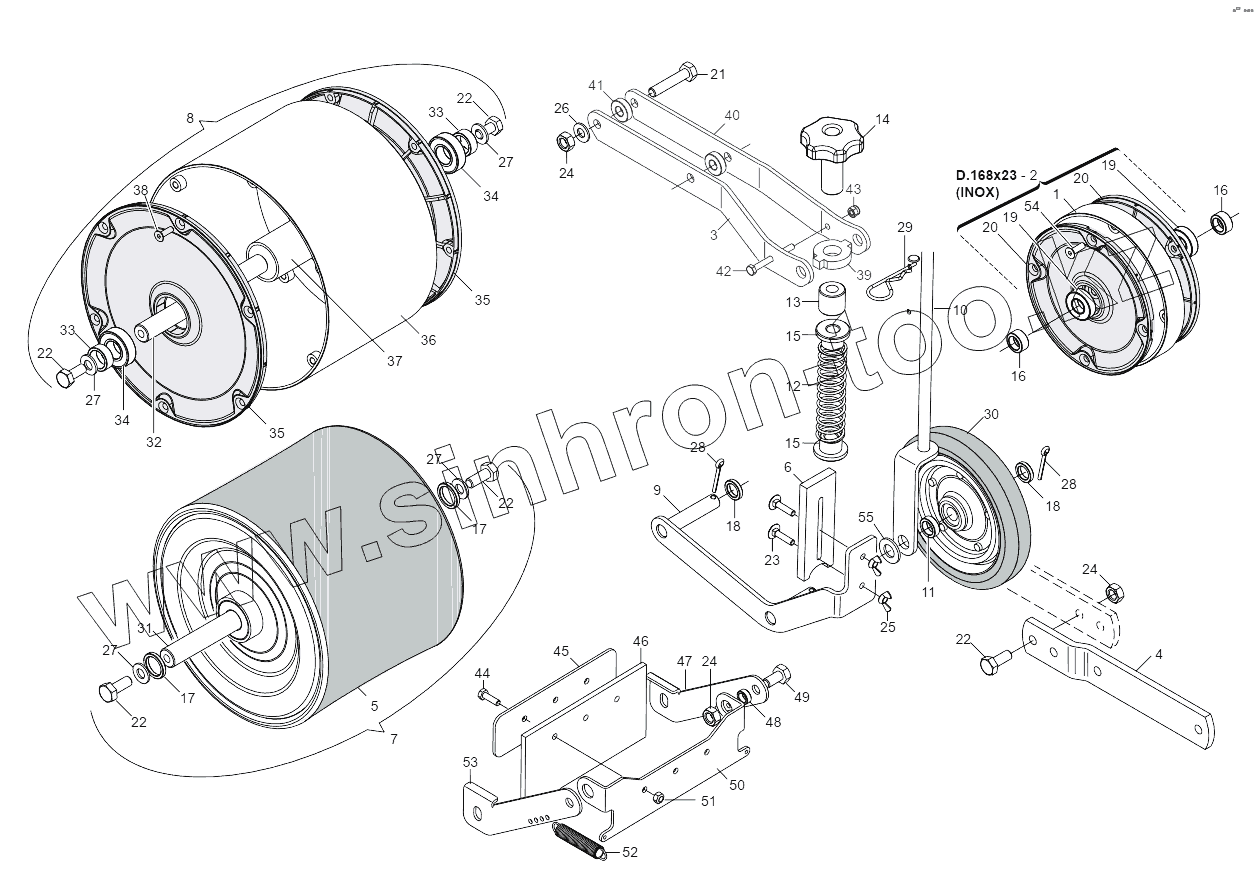

Каталог запасных частей к технике: Gaspardo Сеялка OLIMPIA, ORIETTA-C. COMPRESSION WHEELS AND WHEELS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
18
19
19
20
20
21
22
22
22
22
22
23
24
24
24
25
26
27
27
27
27
28
28
29
30
31
32
33
33
34
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GA5820280 | Anello inox | |
| 2 | GA5820270 | Ruota inox | |
| 3 | G15882490 | Piatto sx supp.basculante | |
| 4 | G15827610 | Prolunga bilanciere | |
| 5 | G15827960 | Ruota gomma | |
| 6 | G15828440 | Wheel soil-scraper fs | |
| 7 | G15829160 | Ruota | |
| 8 | G15829760 | Mont.ruota inox | |
| 9 | G15829610 | Braccio premiseme | |
| 10 | G15829620 | Pressore | |
| 11 | G18802980 | Bushing | |
| 12 | G18903670 | Compr. Wheel spring | |
| 13 | G66248100 | Tightener roller sp | |
| 14 | G19004530 | Handwheel | |
| 15 | G19004560 | Spring bushing | |
| 16 | G19004961 | Distanziale | |
| 17 | G19005081 | Distanziale ruote inox r | |
| 18 | G19005300 | Distanziale | |
| 19 | F04010125 | Bearing | |
| 20 | G19005331 | Fianco ruota | |
| 21 | F01020114 | Screw | |
| 22 | F01020472 | BOLT 10X25 5739 8.G GALVANIZED | |
| 23 | F01060016 | Bolt | |
| 24 | F01200270 | NUT M10X1,5 U5588 6.8 ZN | |
| 25 | F01240012 | NUT 6 UNI 5448 5.8 ZN | |
| 26 | F01410064 | WASHER M10 10,5X20X2 U6592 ZN | |
| 27 | F01420060 | WASHER 10,5X30 | |
| 28 | F02200194 | SPLIT PIN 4X25 1336 GALVAN. | |
| 29 | F02200363 | SPLIT PIN R 3X62 | |
| 30 | F06120066 | Wheel flex | |
| 31 | G15827980 | Wheel axle | |
| 32 | G15826561 | Axle | |
| 33 | G19005600 | Distanziale | |
| 34 | F04010131 | BEARING 6004 2RS EX. SKF | |
| 35 | G19005320 | Fianco ruota | |
| 36 | G15829770 | Ring | |
| 37 | G15829360 | Distanziale | |
| 38 | F01030038 | Screw | |
| 39 | G15882480 | Supp.basculante | |
| 40 | G15882470 | Piatto dx supp.basculante | |
| 41 | G18801680 | Bushing | |
| 42 | F01020043 | BOLT 6X60 5737 8.G GALVANIZED | |
| 43 | F01230022 | NORM.SELF-LOCKING NUT 6 GALVAN | |
| 44 | F01020404 | BOLT 6X20 5739 8.G GALVANIZED | |
| 45 | G15882180 | Piastra | |
| 46 | G15882190 | Raschiatore in gomma | |
| 47 | G15882160 | Supporto dx | |
| 48 | G20980037 | Bushing | |
| 49 | F01020470 | BOLT M10X20 | |
| 50 | G15882171 | Supporto raschiaterra gomma | |
| 51 | F01220011 | NUT M6X1 D980 8 ZN | |
| 52 | G18904170 | Large hatch spring | |
| 53 | G15882150 | Supporto sx | |
| 54 | F01030041 | Bolt | |
| 55 | F01410088 | WAS.M14 15X28X2,5 U6592 ZB |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
