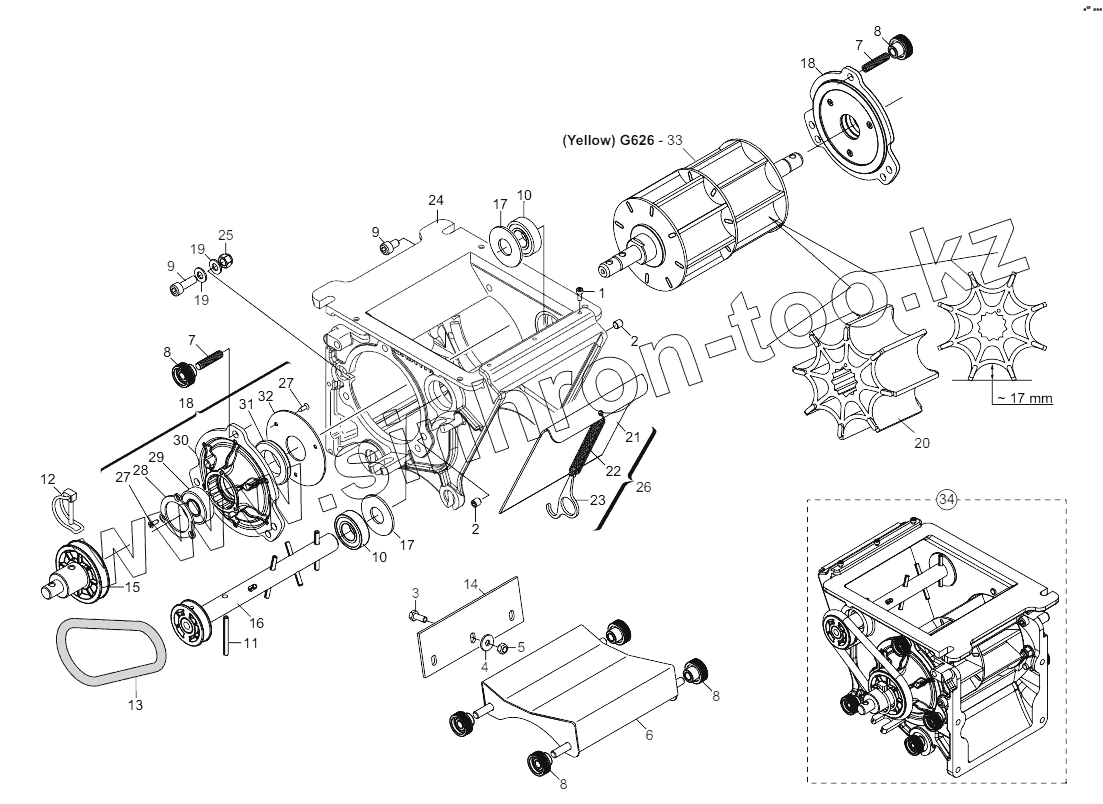

Каталог запасных частей к технике: Gaspardo Сеялка MAXIMETRO. DOSER
1
2
2
3
4
5
6
7
7
8
8
8
8
9
9
10
10
11
12
13
14
15
16
17
17
18
18
19
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | F01040026 | Bolt | |
| 2 | F01050037 | Grub-bolt | |
| 3 | F01020419 | BOLT M6X1X16 U5739 8.8 IX | |
| 4 | F01420038 | WASHER M6 6,4X18X2 U6593 IX | |
| 5 | F01230024 | Norm.self-locking nut | |
| 6 | G16125261 | Assy lower chute roller ix | |
| 7 | F01050040 | Grub-bolt | |
| 8 | F06220037 | Volantino | |
| 9 | F01040090 | Bolt | |
| 10 | F04010132 | Bearing | |
| 11 | F02100316 | Pin | |
| 12 | F02200595 | Pin x gear | |
| 13 | F03011142 | O-ring gasket | |
| 14 | G16124600 | Tastatore in gomma | |
| 15 | G16125241 | Mont.albero trascin.rullo | |
| 16 | G16124421 | Agitator shaft | |
| 17 | G18701920 | Washer | |
| 18 | G16124511 | Mont.flangia porta cusc.rullo | |
| 19 | F01410050 | Washer | |
| 20 | G16063070 | Wheel g313 | |
| 21 | G16060160 | Large hatch | |
| 22 | G18904170 | Large hatch spring | |
| 23 | G16060170 | Hook inox | |
| 24 | G16125151 | Corpo distrib.stagno alluminio | |
| 25 | F01230032 | Nut | |
| 26 | G16060050 | Sportello grande compl. | |
| 27 | F01070122 | Bolt | |
| 28 | G16126880 | Bearing lock ix | |
| 29 | F04010161 | Bearing | |
| 30 | G19006430 | Supp.cusc.rullo dosat.grinta s | |
| 31 | F03010062 | Sealing ring | |
| 32 | G16125691 | Dustcover rear guard frd | |
| 33 | G16124150 | Roller support | |
| 34 | G16125191 | Compl. Fertilizer metering sx |
