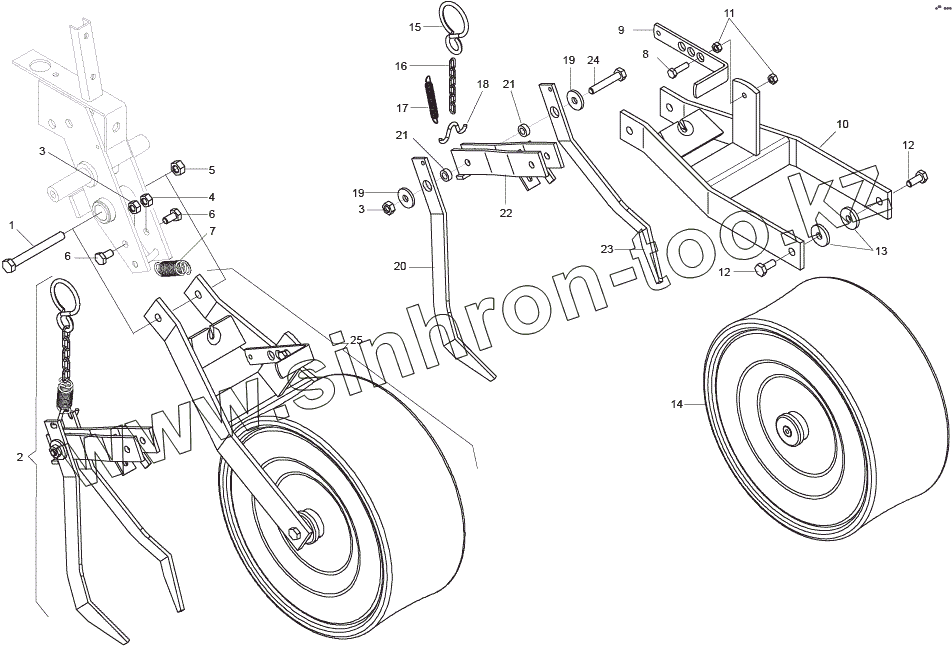

Каталог запасных частей к технике: Gaspardo MT. FARMFLEX O370 COMPRESSION WHEEL (WITH FRONT COVER)
1
2
3
3
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
19
20
21
21
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | F01020172 | BOLT 12X110 5737 8.G GALVANIZ. | |
| 2 | G15224290 | SEED COVERING WHEEL SUPPORT PO | |
| 3 | F01200270 | NUT M10X1,5 U5588 6.8 ZN | |
| 4 | F01220033 | NUT M10X1,5 D980 8 ZN | |
| 5 | F01220048 | NUT M12X1,75 D980 8 ZN | |
| 6 | F01020470 | BOLT M10X20 | |
| 7 | G18902670 | GALV. PRESS. SV-MINI TRACT.SPR | |
| 8 | F01020445 | BOLT M8X30 | |
| 9 | G15224240 | SPRING ADJUSTMENT BRACKET | |
| 10 | G15224230 | WHEEL SUPPORT FARMFLEX | |
| 11 | F01200244 | NUT M8X1,25 U5588 6.8 ZN | |
| 12 | F01020472 | BOLT 10X25 5739 8.G GALVANIZED | |
| 13 | G18701140 | WASHER 11X35X5 | |
| 14 | G14821590 | FARMFLEXWHEEL 370X165 DEPTH.A | |
| 15 | G65336004 | SPEC SPRING- ZN ADD. SEEDER SP | |
| 16 | G15224260 | CHAIN L.122 | |
| 17 | G65337005 | TRACTION COUPLING SPRING- GEAR | |
| 18 | G15224250 | SPRING STOP | |
| 19 | G20970012 | WASHER 32X4X11 | |
| 20 | G15224280 | LEFT CORN SEED COVER | |
| 21 | G20980022 | BUSHING 18X10-25X7 | |
| 22 | G15224180 | SEED COVER SUPPORT | |
| 23 | G15224270 | RIGHT SEED COVER | |
| 24 | F01020118 | BOLT 10X60 5737 8.G GALVANIZED | |
| 25 | G15224300 | WHEEL- FARMFLEX |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
