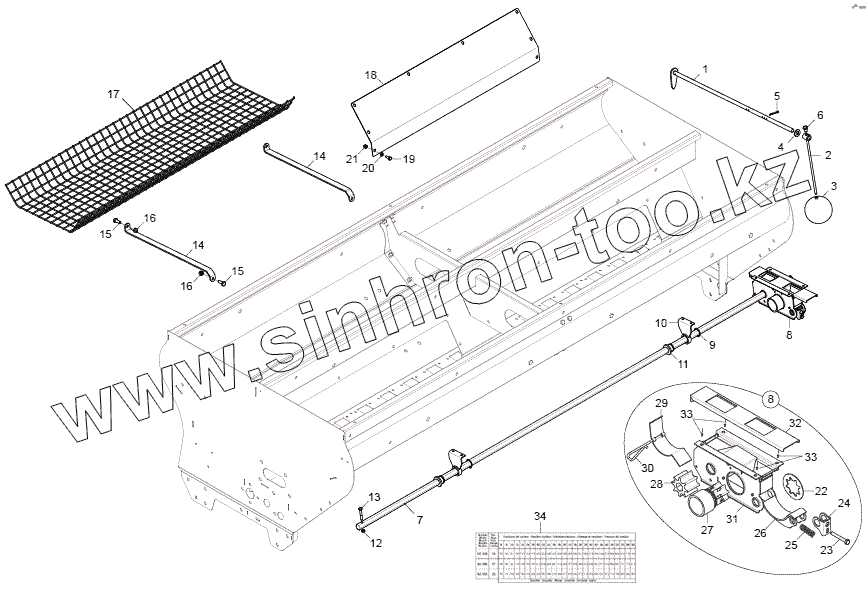

Каталог запасных частей к технике: Gaspardo MEGA 600. VARIATIONS FOR SEED-FERTILIZER DISTRIBUTION HOPPER
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | G16920390 | LEVEL INDEX | |
| 2 | G16920420 | BLOCK FLOATING ROD | |
| 3 | G07000309 | FLOAT | |
| 4 | F01410076 | WASHER D12 U6592 ZN | |
| 5 | F02200195 | Split pin | |
| 6 | F01020427 | Bolt | |
| 7 | G16920560 | FERTILISER DISTRIBUTION SPINDL | |
| 8 | G16920220 | COMPL. DISTRIBUTOR SC | |
| 9 | F02050101 | SEEGER RING E. 25X1,2 7435 C70 | |
| 10 | G16911030 | SHAFT SUPPORT | |
| 11 | G19004410 | ROTATING FERTILIZER SHAFT BUSH | |
| 12 | F01200232 | DADO M6X1 U5588 6.8 ZN | |
| 13 | F01020040 | BOLT 6 X40 5737 8.G GALVANIZED | |
| 14 | G16916610 | SUPPORTO GRIGLIA TRAMOGGIA ECO | |
| 15 | F01020436 | SCREW M8X1,25X20 U5739 8.8 ZN | |
| 16 | F01220022 | NUT M8X1,25 D980 8 ZN | |
| 17 | G16931260 | GRIGLIATO TRAMOGGIA 300 | |
| 18 | G16914540 | SEPARATORE TRAMOGGIA | |
| 19 | F01020403 | SCREW M6X1X16 U5739 8.8 ZN | |
| 20 | F01410037 | PLANE WASHER D.6 | |
| 21 | F01230022 | NORM.SELF-LOCKING NUT 6 GALVAN | |
| 22 | G16930010 | SLIDING SEED ROLLER WASHER | |
| 23 | F01020041 | BOLT 6X45 5737 8.G GALVANIZED | |
| 24 | G16920050 | FEELER POINT SUPPORT | |
| 25 | G18904010 | FEELER PIN PUSH SPRING | |
| 26 | G19004391 | FEELER PIN | |
| 27 | G19004372 | SEED DISTRIBUTION ROLLER | |
| 28 | G19004381 | FERTILIZER DISTRIBUTION ROLLER | |
| 29 | G16930130 | TAPERED ROLLER INSPECTION HATC | |
| 30 | G16920510 | CLOSING HOOK | |
| 31 | G16930120 | SC DISTRIBUTION BOX | |
| 32 | G16930020 | DISTRIBUTOR OPENING LEVER | |
| 33 | F02250148 | PULL RIVET 6X12 ALL | |
| 34 | G19703580 | FERTILIS. DISTRIBUT. TABLE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
