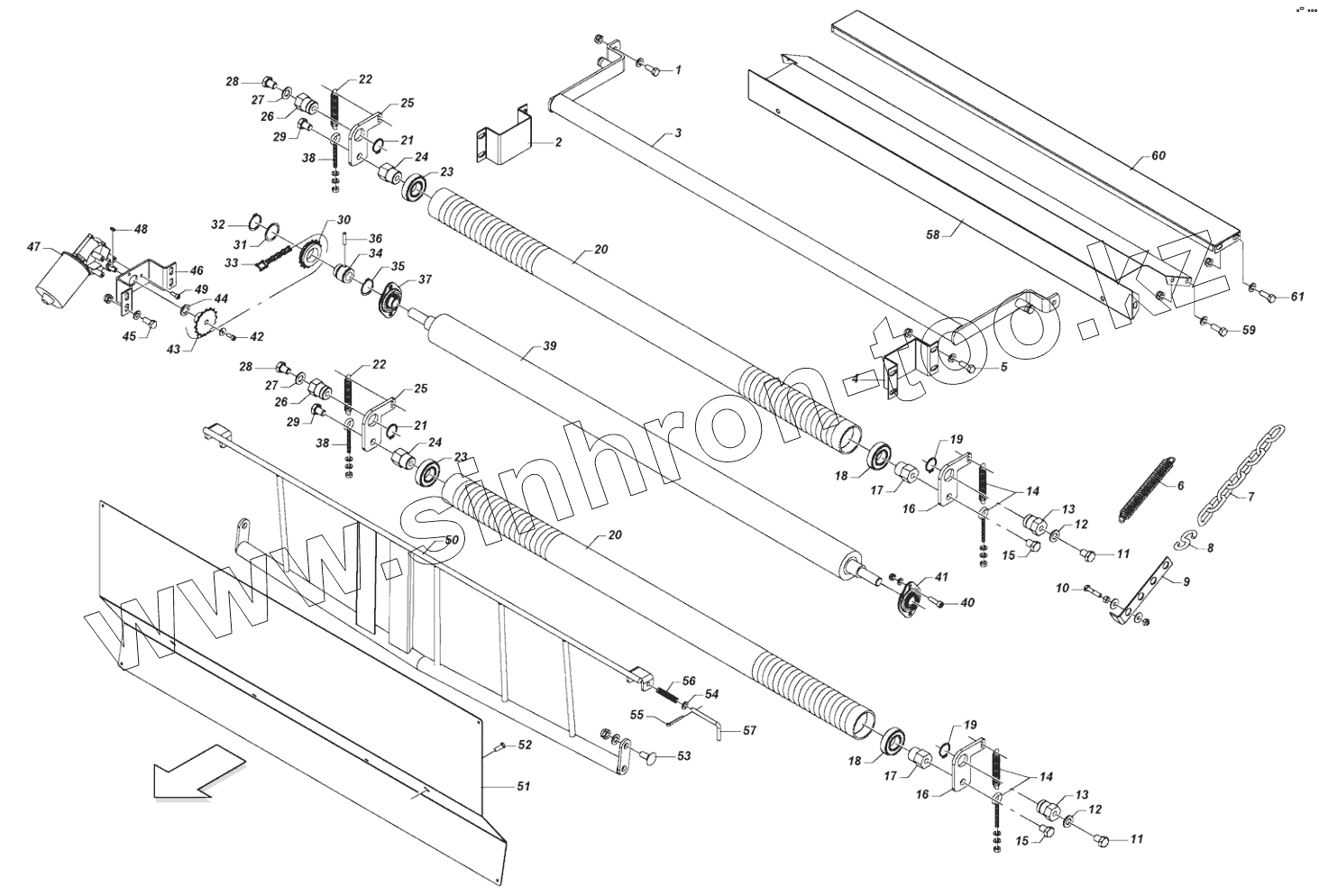

Каталог запасных частей к технике: Gaspardo Feraboli Entry 150. Net binder (part 1)
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
28
29
30
31
32
33
34
35
36
37
38
38
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 0181025 | Screw | |
| 1 | 0545790 | Self-locking nut | |
| 1 | 1421025 | Washer | |
| 2 | C000705 | U bolt | |
| 3 | 7S00220 | Releasing spring linkage | |
| 4 | C000705 | U bolt | |
| 5 | 1421025 | Washer | |
| 5 | 0545790 | Self-locking nut | |
| 5 | 0181030 | Screw | |
| 6 | 1813934 | Spring | |
| 7 | 3300004 | Chain | |
| 8 | 1800098 | s for chain | |
| 9 | C000704 | Tie rod for spring adjustment | |
| 10 | 0190840 | Screw | |
| 10 | 0710208 | Nut | |
| 10 | 0920208 | Nut | |
| 10 | 1420820 | Washer | |
| 10 | 1430820 | Washer | |
| 11 | 0181425 | Screw | |
| 12 | 1421430 | Washer | |
| 13 | 3500106 | Roller fulcrum | |
| 14 | 1420820 | Washer | |
| 14 | 0500004 | Guide for tensioner m8x60 right | |
| 14 | 1800024 | Spring | |
| 14 | 0710208 | Nut | |
| 15 | 0181425 | Screw | |
| 16 | 7S00209 | Roller holder | |
| 17 | 3500105 | Roller pin | |
| 18 | 2043016 | Bearing | |
| 19 | 1700030 | Seeger ring | |
| 20 | 3500107 | Smooth roller | |
| 21 | 1700030 | Seeger ring | |
| 22 | 1800024 | Spring | |
| 23 | 2043016 | Bearing | |
| 24 | 3500105 | Roller pin | |
| 25 | 7S00209 | Roller holder | |
| 26 | 3500106 | Roller fulcrum | |
| 27 | 1421430 | Washer | |
| 28 | 0181425 | Screw | |
| 29 | 0181425 | Screw | |
| 30 | 3400050 | Gear | |
| 31 | 1534416 | Shim | |
| 32 | 1700035 | Seeger ring | |
| 33 | 30C0007 | Spring joint | |
| 33 | 30C1040 | Roller chain | |
| 34 | 3500138 | Pin | |
| 35 | 1700035 | Seeger ring | |
| 36 | 1110630 | Pin | |
| 37 | 2341020 | Support | |
| 38 | 0500004 | Guide for tensioner m8x60 right | |
| 38 | 0710208 | Nut | |
| 38 | 1420820 | Washer | |
| 39 | 3500108 | Rubber roller | |
| 40 | 0410830 | Screw | |
| 40 | 0920208 | Nut | |
| 40 | 1420820 | Washer | |
| 41 | 2341020 | Support | |
| 42 | 0180412 | Screw | |
| 42 | 14B0420 | Wide band washer | |
| 43 | 34P0039 | Pinion | |
| 44 | 1300171 | Hydraulic engine fifth wheel | |
| 45 | 0181025 | Screw | |
| 45 | 0545790 | Self-locking nut | |
| 45 | 1421025 | Washer | |
| 46 | C6P0210 | Electrical motor support | |
| 47 | E0P0055 | Gearmotor | |
| 48 | 1201015 | Tang | |
| 49 | 0400615 | Screw | |
| 50 | 7S00193 | Net tightener | |
| 51 | C001146 | Net skid | |
| 52 | 0470820 | Screw | |
| 52 | 1420820 | Washer | |
| 53 | 0321230 | Screw | |
| 53 | 1421230 | Washer | |
| 53 | 0920412 | Nut | |
| 54 | 1421025 | Washer | |
| 54 | 1420820 | Washer | |
| 55 | 1150325 | Galv pin | |
| 56 | 1812161 | Spring | |
| 57 | 1300629 | Net pin | |
| 58 | C3P0125 | Front support | |
| 59 | 0181020 | Screw | |
| 59 | 0545790 | Self-locking nut | |
| 59 | 1421025 | Washer | |
| 60 | C000915 | Rear rollholder | |
| 61 | 0181020 | Screw | |
| 61 | 0545790 | Self-locking nut | |
| 61 | 1421025 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
