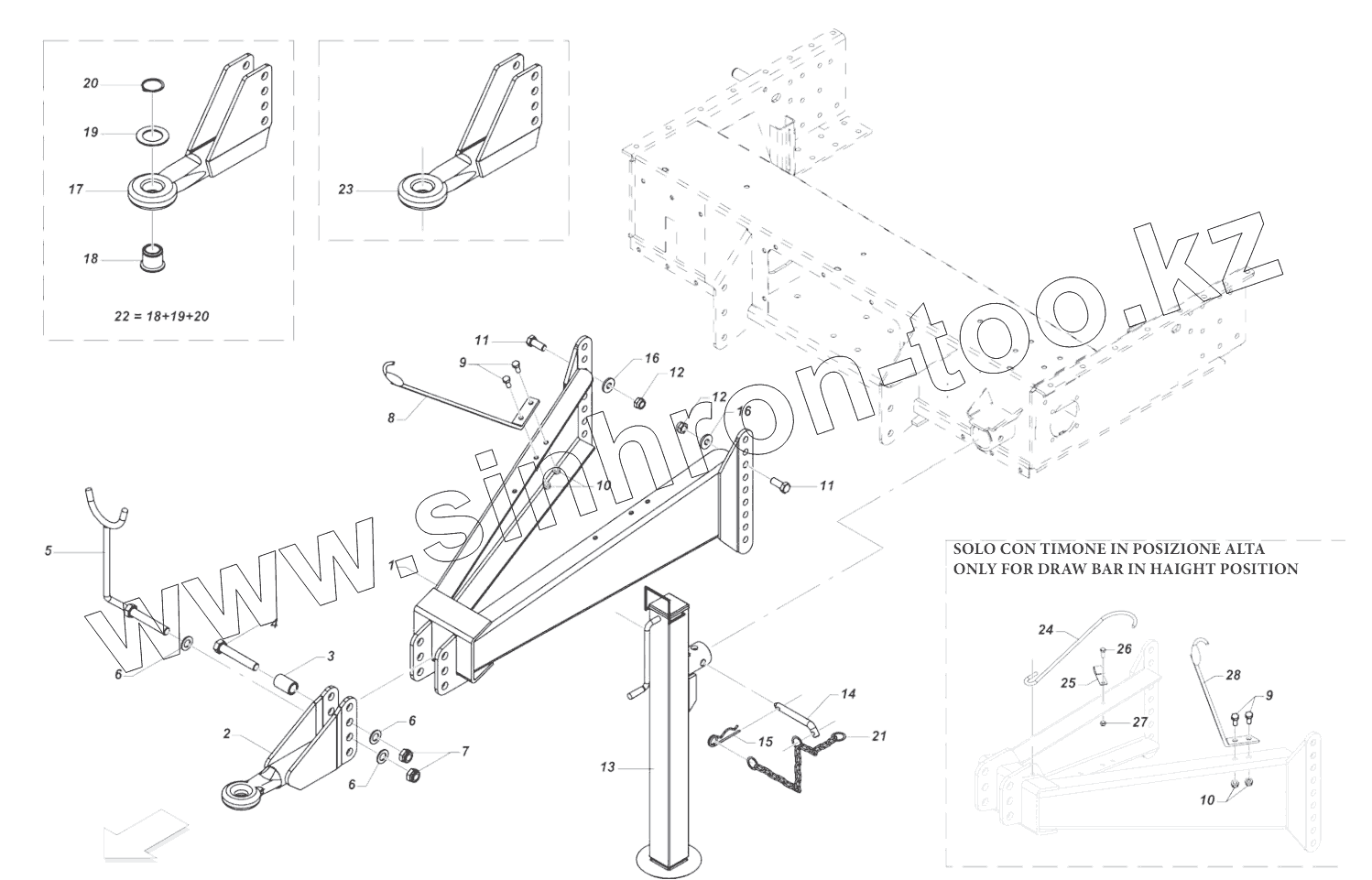

Каталог запасных частей к технике: Gaspardo Feraboli Entry 150. Drawbar
1
2
3
4
5
6
6
6
7
8
9
10
10
11
11
12
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 7S00177 | Draw bar | |
| 2 | 7S01033 | Trail hitch | |
| 3 | 1329574 | Spacer | |
| 4 | 0192093 | Screw | |
| 5 | 7S00489 | Roundbaler pto support | |
| 6 | 1422035 | Washer | |
| 7 | 0920620 | Nut | |
| 8 | 7H34241 | Hose support | |
| 9 | 0181025 | Screw | |
| 10 | 0545790 | Self-locking nut | |
| 11 | 0181640 | Screw | |
| 12 | 0920516 | Nut | |
| 13 | 7S01755 | Draw bar stand | |
| 14 | 13C0001 | Pin | |
| 15 | 11B0499 | Pin | |
| 16 | 1519319 | Fifth wheel | |
| 17 | 7SP0228 | Towing eye diam 50 lm for ff | |
| 18 | 1300957 | Reduction bush | |
| 19 | 1300959 | Flange 50x80x4 | |
| 20 | 1700050 | Seeger ring | |
| 21 | 3300008 | Genovese chain | |
| 22 | ZMP0018 | Tow eye reduction bush | |
| 23 | 7SP0778 | Fixed towing eye | |
| 24 | C6P1186 | Joint support hook | |
| 25 | 1800011 | Back stop cardan support | |
| 26 | 0180820 | Screw | |
| 27 | 0920208 | Nut | |
| 28 | 7SP0911 | Cables support |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
