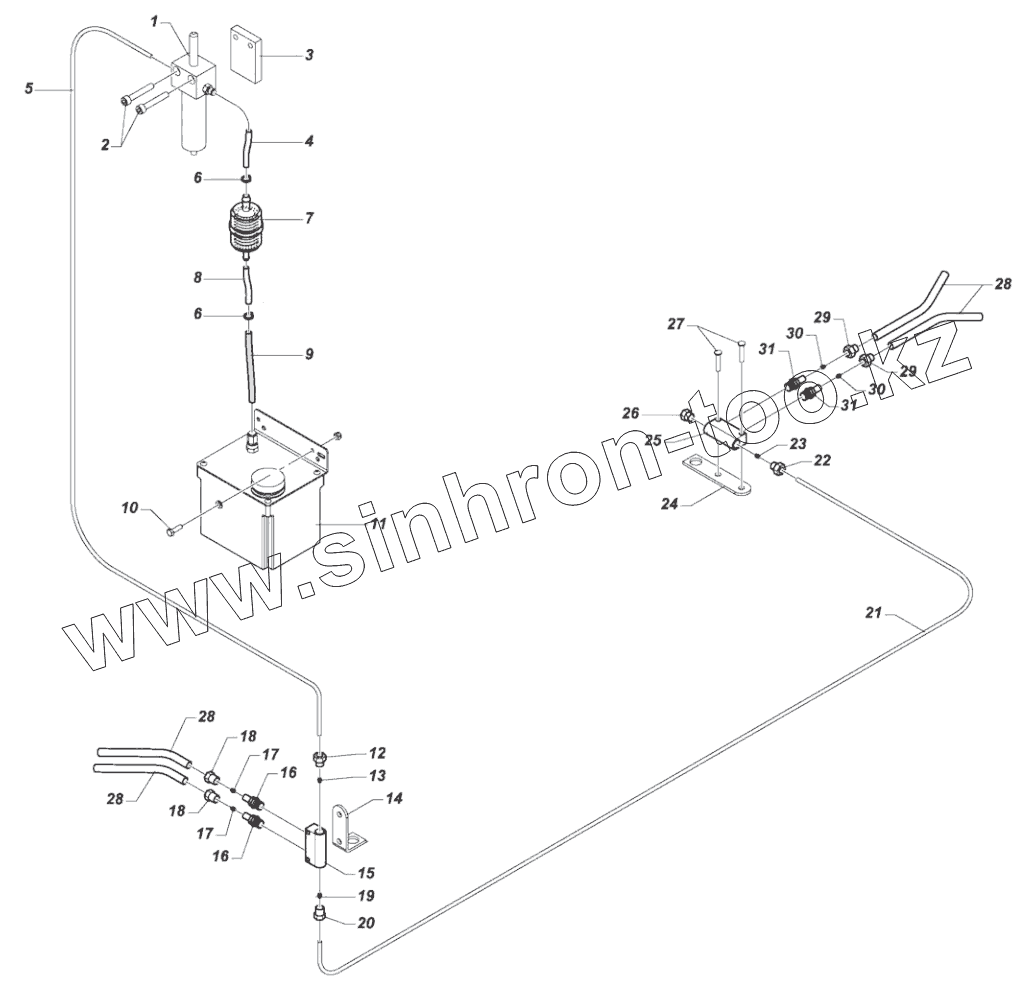

Каталог запасных частей к технике: Gaspardo Feraboli Entry 150. Automatic chain oiling
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
28
28
29
29
30
30
31
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H4P0001 | Piston pump | |
| 2 | 0400850 | Screw | |
| 3 | C003928 | Lubrication attachment | |
| 4 | H000035 | Nylon pipe | |
| 5 | H000135 | Nylon pipe | |
| 6 | E600026 | Clamp | |
| 7 | H000022 | Filter maxifis | |
| 8 | H000023 | Connection pipe | |
| 9 | H000136 | Nylon pipe | |
| 10 | 0920106 | Nut | |
| 10 | 1420615 | Washer | |
| 10 | 0180620 | Screw | |
| 11 | 4800000 | Nylon tank | |
| 11 | 4000056 | Oil agip oso | |
| 12 | H600016 | Union for pipe | |
| 13 | H600013 | Double cone for pipe | |
| 14 | C6P0340 | Distribution attachment | |
| 15 | H000102 | Unilateral distributor | |
| 16 | HE00003 | Type e injector | |
| 17 | H600013 | Double cone for pipe | |
| 18 | H600014 | Injector union for pipe | |
| 19 | 1000024 | Rivet | |
| 20 | H000129 | Copper pipe | |
| 21 | H000191 | Nylon pipe | |
| 22 | H600016 | Union for pipe | |
| 23 | H600013 | Double cone for pipe | |
| 24 | C6P0352 | Oling system support | |
| 25 | H000102 | Unilateral distributor | |
| 26 | H600015 | Plug | |
| 27 | 1000024 | Rivet | |
| 28 | H0P0023 | Copper tube diam | |
| 29 | H600014 | Injector union for pipe | |
| 30 | H600013 | Double cone for pipe | |
| 31 | HE00003 | Type e injector | |
| 32 | H0P0022 | Copper tube diam | |
| 33 | E600021 | Clamp lumefix |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
