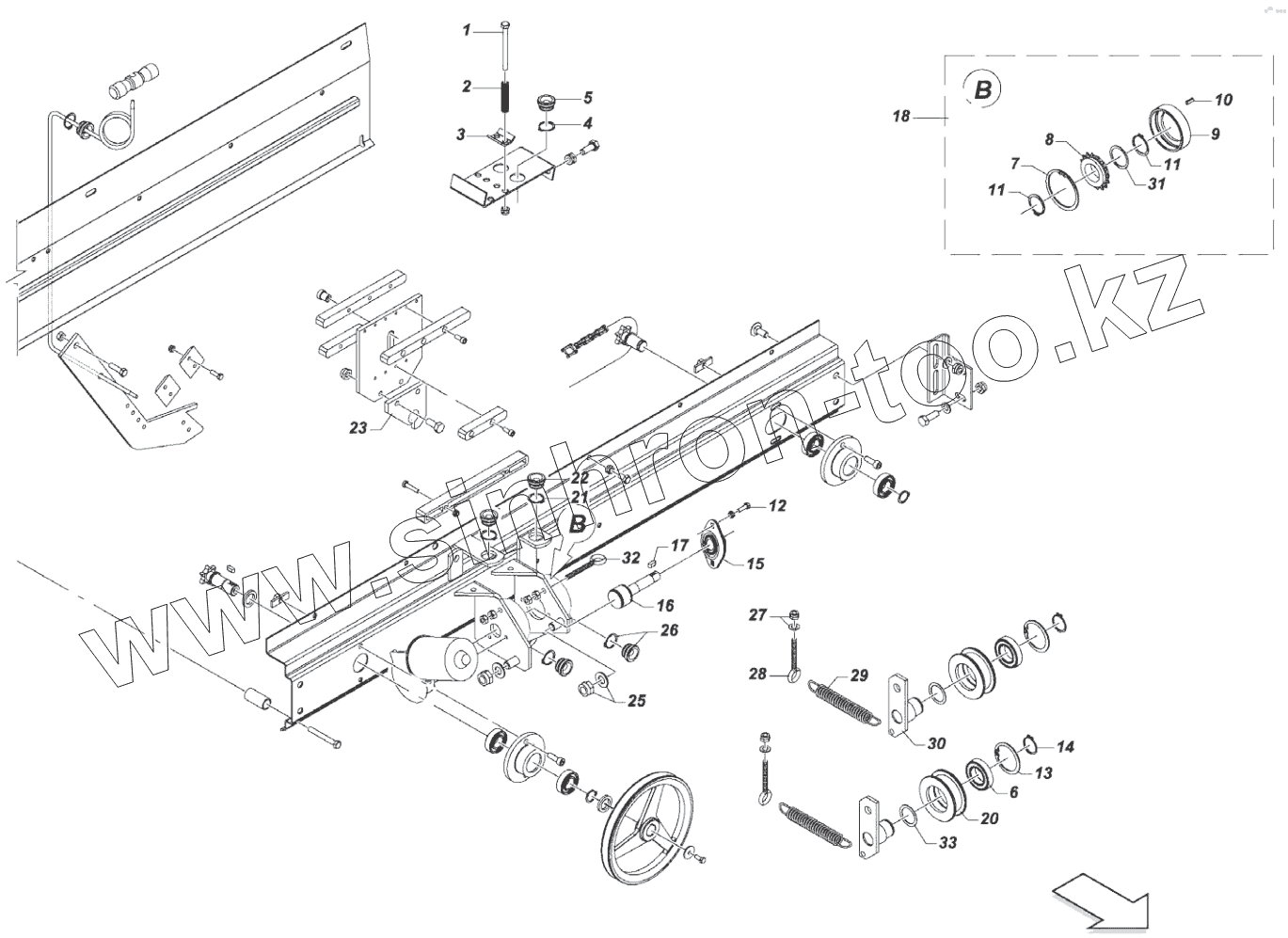

Каталог запасных частей к технике: Gaspardo Feraboli Entry 150. 2 twine binder (only parts added)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
20
21
22
23
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 0920208 | Nut | |
| 1 | 0190890 | Screw | |
| 2 | 1812161 | Spring | |
| 3 | C630434 | Twine brake | |
| 4 | 1700025 | Seeger ring | |
| 5 | 3500097 | Twine guide bush | |
| 6 | 2043013 | Bearing | |
| 7 | 1710072 | Seeger ring | |
| 8 | 3400050 | Gear | |
| 9 | 1300086 | Ring | |
| 10 | 1110615 | Pin | |
| 11 | 1700035 | Seeger ring | |
| 12 | 0920106 | Nut | |
| 12 | 0180620 | Screw | |
| 13 | 1710055 | Seeger ring | |
| 14 | 1700030 | Seeger ring | |
| 15 | 2341017 | Support | |
| 16 | 34P0040 | Double twine pivot | |
| 17 | 1201015 | Tang | |
| 18 | 7M00051 | Free wheel | |
| 19 | 05P0004 | Eye bolt | |
| 19 | 0710208 | Nut | |
| 20 | 2700018 | Guide | |
| 21 | 1700025 | Seeger ring | |
| 22 | 3500097 | Twine guide bush | |
| 23 | C6P0213 | Double twine passing cablehead | |
| 24 | 1534416 | Shim | |
| 25 | 1421430 | Washer | |
| 25 | 0920514 | Nut | |
| 26 | 1300153 | Shim | |
| 26 | 1300101 | Shim | |
| 27 | 0710208 | Nut | |
| 28 | 0500004 | Guide for tensioner m8x60 right | |
| 29 | 1829751 | Spring | |
| 30 | 7S00163 | Guide pulley pin | |
| 31 | 1534416 | Shim |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
