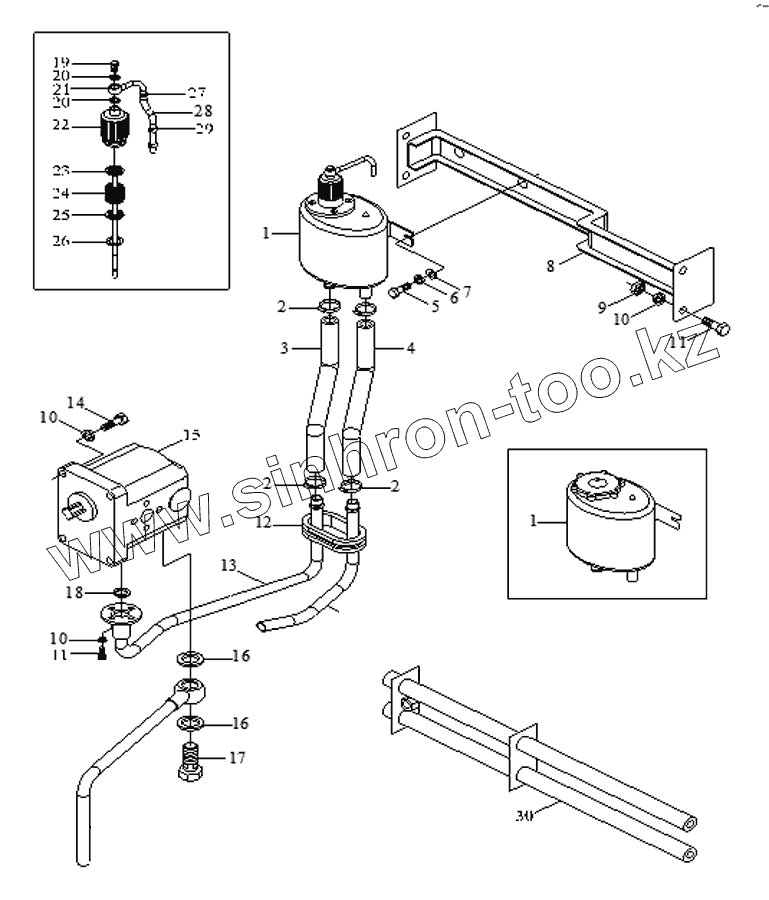

Каталог запасных частей к технике: Foton TA60. Hydraulic Steering Wheel Assembly-2(Adopt Perkins engine)
1
1
2
2
2
3
4
5
6
7
8
9
10
10
10
11
11
12
13
13
13
13
13
14
15
16
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FT650.40.020a | steering hyraulic tank assembly | |
| 2 | ZBJ 15001 | Clamp | |
| 3 | FT650.40.108 | outlet hose | |
| 4 | FT650.40.107 | return hose | |
| 5 | GB/T5781 | Bolt | |
| 6 | GB/T93 | Шайба 12 | |
| 7 | GB/T97.1 | Шайба 12 | |
| 8 | FT650.40.040 | assembly of steering oil tank bracket | |
| 9 | GB/T6170 | Гайка М6 | |
| 10 | GB/T93 | Шайба 12 | |
| 11 | GB/T5783 | Болт M12x35 | |
| 12 | FT650.40.146 | spacer ring | |
| 13 | FT650.40.023 | oil suction pipe assembly,hydraulic pump | |
| 13 | FT550.40B.023 | oil suction pipe assembly,hydraulic pump | |
| 13 | FT700.40A.012 | oil suction pipe assembly,hydraulic pump | |
| 13 | FT700.40S.023 | oil suction pipe assembly,hydraulic pump | |
| 13 | FT700.40K.023 | oil suction pipe assembly,hydraulic pump | |
| 14 | GB/T5783 | Болт M12x35 | |
| 15 | FT650.40.030 | constant overflow pump | |
| 16 | JB/T982 | Шайба комбинированная 27 | |
| 17 | FT650.40.105 | Hollow bolt -2 | |
| 18 | GB3452.1 | O-seal ring | |
| 19 | FT650.40.180 | hollow bolt | |
| 20 | JB/T 982 | Washer | |
| 21 | FT650.40.043 | Breather assembly Joint weldment | |
| 22 | FT650.40.160 | Breather assembly | |
| 23 | FT650.40.028 | Dipstick | |
| 24 | FT650.40.162 | Breather assembly cartridge | |
| 25 | FT650.40.167 | seat plate | |
| 26 | GB/T983.1 | circlip 32 | |
| 27 | ZBJ15001 | Clamp | |
| 28 | FT650.40.165 | hose | |
| 29 | FT650.40.168 | Fix the card | |
| 30 | FT550.40B.040 | assembly of steering oil tank bracket |
