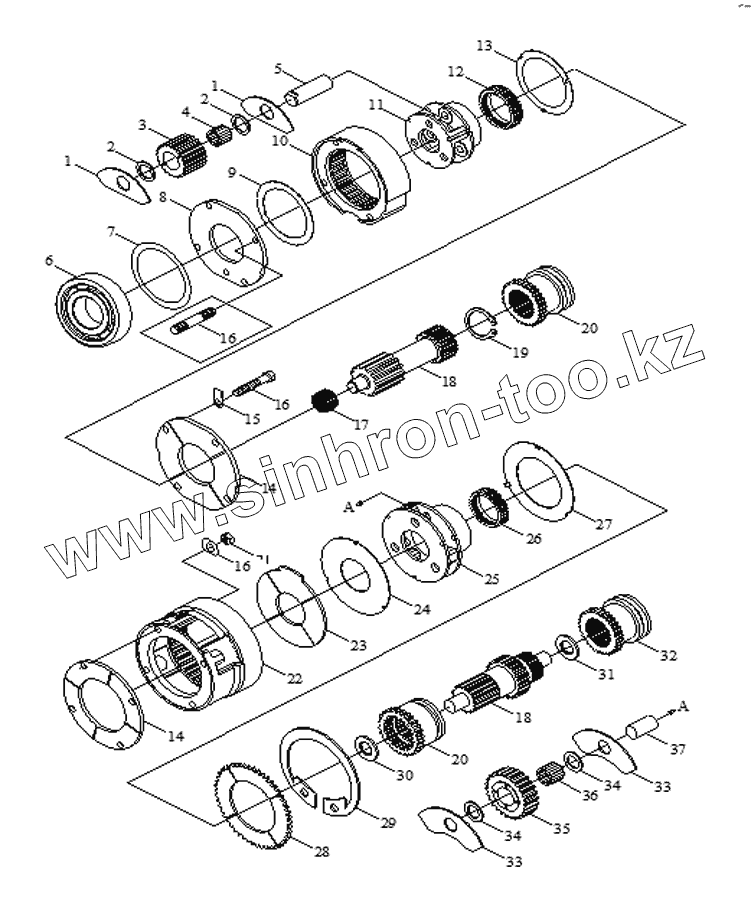

Каталог запасных частей к технике: Foton TA60. Gearbox Assembly-3 (enhance)
1
1
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
14
14
15
15
16
16
16
17
18
18
18
19
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FT700.37.164 | thrust plate,planetary gear | |
| 2 | FT700.37.165 | needl spacer, planetary gear | |
| 3 | FT700.37.166 | planetary gear | |
| 4 | GB/T 309 | round head neddle | |
| 5 | FT700.37.163 | planetary gear shaft | |
| 6 | GB/T 276-1994 | Bearing | |
| 7 | FT700.37.139 | gasket ,planetary gear housing | |
| 8 | FT700.37.145 | spacer plate, planetary housing | |
| 9 | FT65.37.146 | Frount gasket planetary housing | |
| 10 | FT700.37.147 | planetary inner gear | |
| 10 | FT700.37B.147 | planetary inner gear | |
| 11 | FT700.37.162 | planetary gear housing | |
| 12 | FT700.37.167 | inner gear ring,planetary gear housing | |
| 13 | FT700.37.148 | rear gasket ,planetary gear housing | |
| 14 | FT65.37.149 | cover plate of planetary gear | |
| 14 | FT65.37D.219 | Creeping front clapboard | |
| 15 | GB/T 854 | thrust washer12 | |
| 15 | GB/T 855 | thrust washer12 | |
| 16 | GB/T 5782 | Bolt | |
| 16 | GB/T 899 | bolt AM12-M12x1.25x120-8.8-A2L | |
| 17 | GB/T 5846-1986 | needle rooller bearing | |
| 18 | FT700.37.172 | tansmission gear shaft | |
| 18 | FT700.37B.202 | Creeping gear shaft | |
| 19 | GB/T 894.1 | Circlip for shaft | |
| 20 | FT700.37.150 | transmission gear sleeve,2 shaft | |
| 20 | FT700.37B.150 | transmission gear sleeve,2 shaft | |
| 21 | GB/T 6171 | Nut | |
| 22 | FT65.37D.210 | planetary inner gear | |
| 23 | FT65.37D.211 | Creeping clapboard | |
| 24 | FT65.37D.212 | frount gasket planetary housing | |
| 25 | FT65.37D.213 | planetary gear housing | |
| 26 | FT65.37.167 | inner gear ring,planetary gear housing | |
| 27 | FT65.37D.214 | rear gasket, planetary gear housing | |
| 28 | FT65.37D.215 | spacer planetary housing | |
| 29 | GB/T 893.1 | Circlip for shaft | |
| 30 | FT65.37D.140 | washer | |
| 31 | FT700.37B.139 | single coil spring lock washer | |
| 32 | FT700.37B.201 | Creeping gear connecting sleeve | |
| 33 | FT65.37D.217 | thrust plate,planetary gear | |
| 34 | FT65.37.165 | planetary gear shaft | |
| 35 | FT65.37D.216 | Creeping planetary gear | |
| 36 | GB/T 309 | round head neddle | |
| 37 | FT65.37D.218 | planetary gear shaft |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
