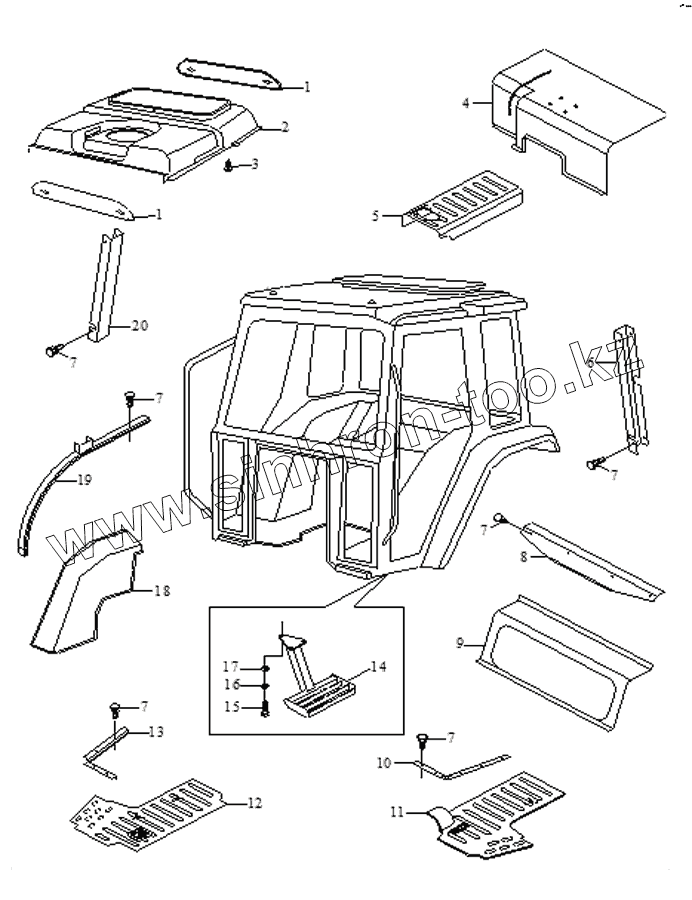

Каталог запасных частей к технике: Foton TA60. Driver's Cab Assembly-4
1
1
2
2
2
2
3
4
5
6
7
7
7
7
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FT65.45.899 | Outer plate of upper beam ,rear window | |
| 2 | FT65.45.954 | Inner top (for simple fan) | |
| 2 | FT65.45.099 | Inner top (for warm-air fan ) | |
| 2 | FT65T.45.954 | Inner top(for simple fan ) | |
| 2 | FT65T.45.099 | Inner top (for warm-air fan ) | |
| 3 | Q69206 | Plastic split pin | |
| 4 | FT65.45.320 | Middle floor cushion,rear floor | |
| 5 | FT65.45.329 | Cover cushion ,front floor | |
| 6 | FT65.45.309 | Inner decoration of left middle stand | |
| 7 | Q69208 | Plastic split pin | |
| 8 | FT65.45.666 | Pressure sheet of inner decorations,rear surounding plate | |
| 9 | FT65T.45.666 | Pressure plate of inner decoration | |
| 9 | FT65.45.313 | Inner decoreations of rear surrounding plate | |
| 10 | FT65.45.444 | pressure sheet of left floor cushion | |
| 11 | FT65.45.302 | left floor cushion | |
| 12 | FT65.45.301 | right floor cushion | |
| 13 | FT65.45.222 | pressure sheet of right floor cushion | |
| 14 | FT65.45.012 | foot lever assembly | |
| 15 | Q150B1030 | Болт | |
| 16 | Q40310 | Шайба пружинная | |
| 17 | Q40110 | Плоская шайба | |
| 18 | FT65.45.307 | inner decoration, left mud washer | |
| 19 | FT65.45.308 | inner decoration,right mud gruard | |
| 19 | FT65.45.317 | pressure plate of inner decoration, left mud guard | |
| 20 | FT65.45.318 | inner decorations of right middle stand | |
| 20 | FT65.45.310 | inner decoration of righyt middle stand |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
