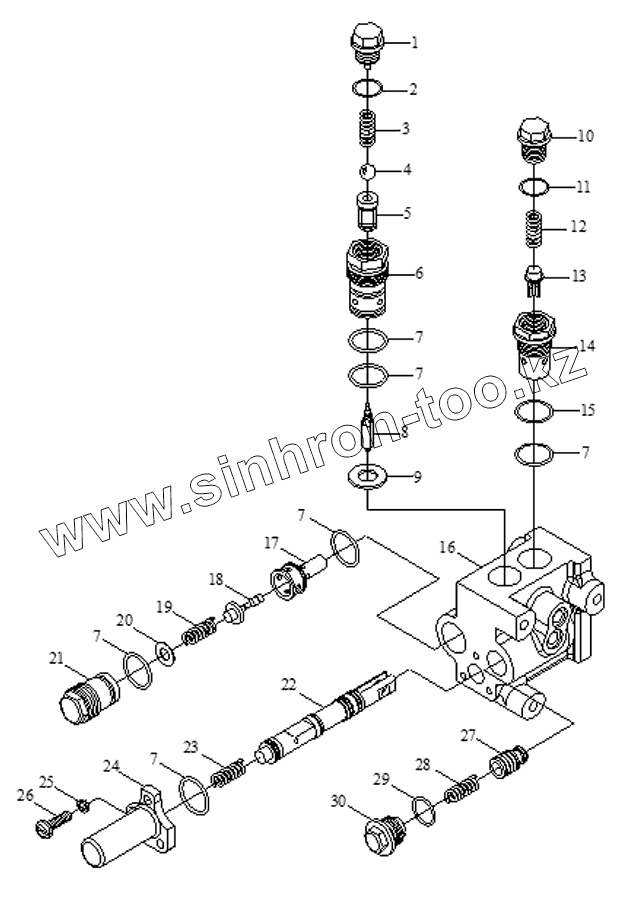

Каталог запасных частей к технике: Foton TA60. Distributor assembly-2
1
2
3
4
5
6
7
7
7
7
7
7
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
20
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FT65.57.146 | Plug,lowering valve | |
| 2 | GB3452.1 | O-seal ring | |
| 3 | FT65.57.149 | Spring, lowering valve | |
| 4 | GB/T 308 | Steel ball | |
| 5 | FT65.57.148 | Lowering valve body | |
| 6 | FT65.57.147 | Lowering valve housing | |
| 7 | GB3452.1 | O-seal ring | |
| 8 | FT65.57.114 | Push pin | |
| 9 | FT65.57.111 | Adjusting shim | |
| 9 | FT65.57.112 | Adjusting shim | |
| 9 | FT65.57.113 | Adjusting shim | |
| 10 | FT65.57.145 | Plug,one-way valve | |
| 11 | GB3452.1 | O-seal ring | |
| 12 | FT65.57.144 | Spring, one-way valve | |
| 13 | FT65.57.140 | One-way valve body | |
| 14 | FT65.57.143 | One-way valve seat | |
| 15 | GB3452.1 | O-seal ring | |
| 16 | FT65.57.118 | Distributor housing | |
| 17 | FT65.57.011 | Safety valve seat unit | |
| 18 | FT65.57.137 | Safety valve body | |
| 19 | FT65.57.136 | Spring,safety valve | |
| 20 | FT65.57.133 | Adjusting shim | |
| 20 | FT65.57.134 | Adjusting shim | |
| 20 | FT65.57.135 | Adjusting shim | |
| 21 | FT65.57.129 | Spring seat safety valve | |
| 22 | FT.57.117 | Main control valve | |
| 23 | FT65.57.115 | Spring,main valve | |
| 24 | FT65.57.116 | Front cap,main valve | |
| 25 | GB/T 859 | Single coil spring lock washer-6 | |
| 26 | GB/T 70.1 | Screw | |
| 27 | FT65.57.126 | Oil return valve body | |
| 28 | FT65.57.127 | Oil return valve spring | |
| 29 | GB3452.1 | O-seal ring | |
| 30 | FT65.57.128 | Plug,oil return valve |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
