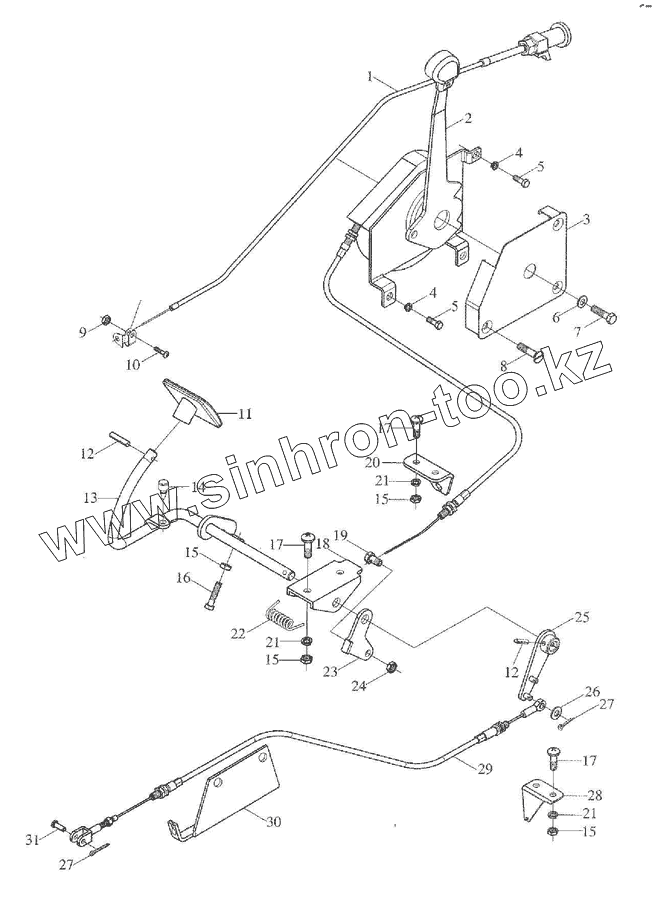

Каталог запасных частей к технике: Foton TA60. Control Mechanism Assembly of the Engine
FT700.20G.001
FT650.20.001
1
2
3
4
4
5
5
6
7
8
9
10
11
12
12
13
14
15
15
15
15
16
17
17
17
18
19
20
21
21
21
22
23
25
26
27
28
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT700.20G.001 | FT700.20G.001 | control mechanism assembly of the engine | |
| FT650.20.001 | FT650.20.001 | control mechanism assembly of the engine | |
| 1 | FT650.20.018 | extinguish wire assembly | |
| 2 | FT700.20.019 | Hand throttle assembly | |
| 3 | FT700.20.324 | Hand throttle cover | |
| 4 | GB/T 93 | Washer | |
| 5 | GB/T 5781 | Bolt | |
| 6 | GB/T 96 | Washer | |
| 7 | GB/T 5780 | Bolt | |
| 8 | GB/T 68 | Screw | |
| 9 | GB/T 6172 | Nut | |
| 10 | GB/T 818 | screw M6*16-A2L | |
| 11 | FT650.20.101 | Foot pedal | |
| 12 | GB/T 879 | Pin | |
| 13 | FT800.20.013 | pfoot padel weldment | |
| 14 | FT650.20.107 | rubber plug | |
| 15 | GB/T 6172 | Nut | |
| 16 | GB/T 5781 | Bolt | |
| 17 | GB/T818 | Винт М6х45 | |
| 18 | FT650.20.108 | throttle bracket | |
| 19 | FT650.20.133 | Fastening bolt | |
| 20 | FT650.20.105 | bracket for hand throttle wire | |
| 21 | GB/T 93 | Washer | |
| 22 | FT650.20.104 | Torsion spring | |
| 23 | FT650.20.114 | Hand throttle rocker | |
| 25 | GB/T6170 | Гайка М6 | |
| 26 | FT650.20.011 | foot throttle rocker weldment | |
| 27 | GB/T 97.1 | Washer | |
| 28 | GB/T91 | Шплинт 3.2x25 | |
| 29 | FT650.20.106 | bracket for foot throttle wire | |
| 30 | FT650.20.014 | foot throttle wire assembly | |
| 31 | FT650.20.102 | bracket for wire | |
| 32 | GB/T 882 | Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
