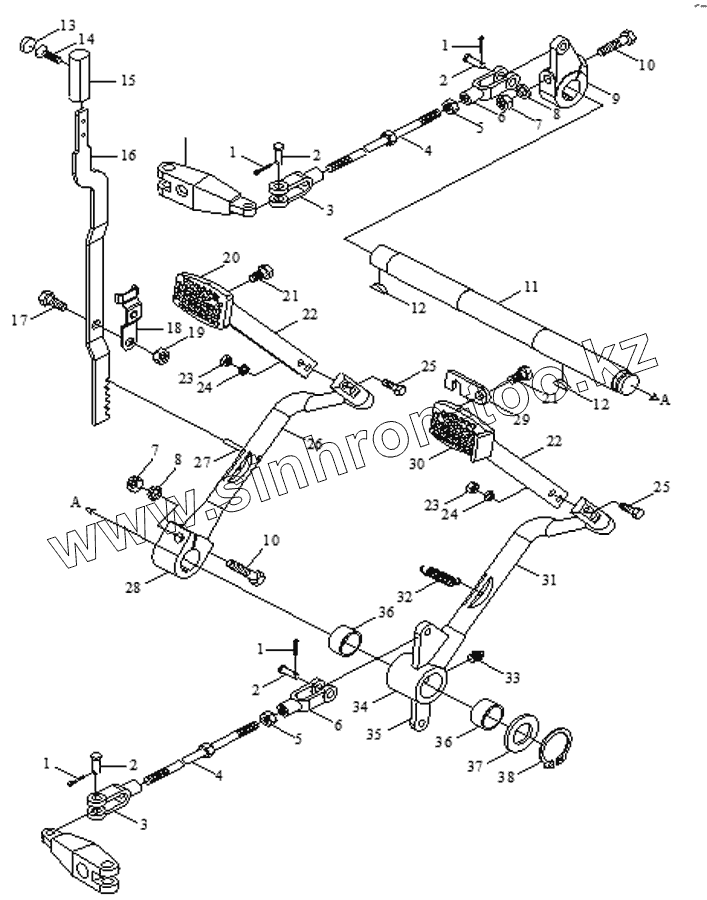

Каталог запасных частей к технике: Foton TA60. Brake Assembly-1
1
1
1
1
2
2
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
10
10
11
11
12
12
13
14
15
16
16
17
18
19
20
21
21
22
22
23
23
24
24
25
25
26
26
27
28
29
30
31
31
32
33
34
34
35
36
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT65.43B.001 | FT65.43B.001 | brake assembly | |
| FT65.43.001 | FT65.43.001 | brake assembly | |
| FT700.43B.001 | FT700.43B.001 | brake assembly | |
| FT700.43.001 | FT700.43.001 | brake assembly | |
| 1 | GB/T 91 | Pin | |
| 2 | GB/T 882 | Pin | |
| 3 | FT65.43.152 | Left-hand rod clevis | |
| 4 | FT65.43.013 | Brake long pull rod unit | |
| 5 | GB/T 6170 | Nut | |
| 6 | FT65.43.134 | Right-hand rod clevis | |
| 7 | GB/T 6170 | Nut | |
| 8 | GB/T 93 | Washer | |
| 9 | FT65.43.123 | left rocker of brake pedal | |
| 10 | GB/T 5782 | Bolt | |
| 11 | FT65.43.124 | brake padel roll | |
| 11 | FT700.43.124 | brake padel roll | |
| 12 | GB/T 1099 | Woodruff key | |
| 13 | FT65.43.151 | Handle cap | |
| 14 | GB/T 68 | Screw | |
| 15 | FT65.43.150 | handle | |
| 16 | FT65.43.137A | packing lock plate | |
| 16 | FT700.43.137A | packing lock plate | |
| 17 | GB/T 5783 | Bolt | |
| 18 | FT65.43.136 | spring piece | |
| 19 | GB/T 6172 | Nut | |
| 20 | FT65.43.144 | brake padel left | |
| 21 | FT65.43.132 | screw | |
| 22 | FT65.43.149 | braking padel connecting shaft | |
| 23 | GB/T 6172 | Nut | |
| 24 | GB/T 93 | Washer | |
| 25 | GB/T 27 | Bolt | |
| 26 | FT65.43.146 | Brake pedal rod,left | |
| 26 | FT700.43.146 | Brake pedal rod,left | |
| 27 | GB/T 119 | Pin | |
| 28 | FT65.43.148 | Brake pedal seat,left | |
| 29 | FT65.43.130 | interlock plate | |
| 30 | FT65.43.141 | brake padel right | |
| 31 | FT65.43.145 | brake padel right | |
| 31 | FT700.43.145 | brake padel right | |
| 32 | FT65.21.135 | Pedal return spring, clutch | |
| 33 | JB/T 7940.1 | Oil cup M10x1 | |
| 34 | FT65.43.147 | brake padel seat,right | |
| 34 | FT700.43.147 | brake padel seat,right | |
| 35 | FT65.43.143 | bracket | |
| 36 | FT65.43.127 | brake padel right bush | |
| 37 | GB/T 97.1 | Washer | |
| 38 | GB/T 895.2 | Circlip for shaft |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
