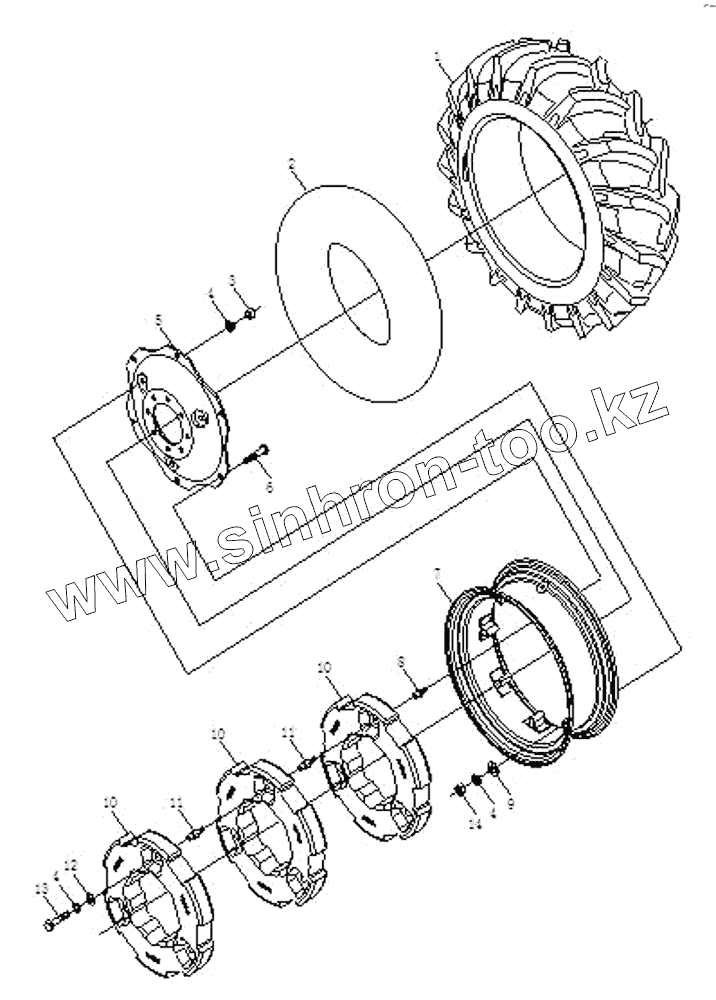

Каталог запасных частей к технике: Foton Europard 40. Rear Driving Wheel and Rear Ballast Assembly
FT350.34.001
FT300.34.001
FT404.34B.001
FT404.34.001
FT400.34.001
1
1
1
1
1
2
2
2
2
2
3
4
4
4
5
5
5
6
7
7
7
8
9
10
10
10
11
11
12
13
14
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT350.34.001 | FT350.34.001 | Rear driving wheel assembly | |
| FT300.34.001 | FT300.34.001 | Rear driving wheel assembly | |
| FT404.34B.001 | FT404.34B.001 | Rear driving wheel assembly | |
| FT404.34.001 | FT404.34.001 | Rear driving wheel assembly | |
| FT400.34.001 | FT400.34.001 | Rear driving wheel assembly | |
| 1 | GB/T2979 | tire 5.00 (4.00) | |
| 1 | GB/T2979 | tire 5.00 (4.00) | |
| 1 | GB/T2979 | tire 5.00 (4.00) | |
| 1 | GB/T2979 | tire 5.00 (4.00) | |
| 1 | GB/T2979 | tire 5.00 (4.00) | |
| 2 | GB/T2979 | tire 5.00 (4.00) | |
| 2 | GB/T2979 | tire 5.00 (4.00) | |
| 2 | GB/T2979 | tire 5.00 (4.00) | |
| 2 | GB/T2979 | tire 5.00 (4.00) | |
| 2 | GB/T2979 | tire 5.00 (4.00) | |
| 3 | GB/T6170 | Гайка М6 | |
| 4 | GB/T93 | Шайба 12 | |
| 5 | FT300.34.104 | Spoke ,Rear driving wheel | |
| 5 | FT400.34.103 | Spoke ,Rear driving wheel | |
| 5 | FT404.34.102 | Spoke ,Rear driving wheel | |
| 6 | FT300.34.102 | Rim bolt | |
| 7 | FT300.34.012 | Rim weldment W10x24 | |
| 7 | FT400.34.012 | Rim weldment W10x28 | |
| 7 | FT404.34.012 | Rim weldment W12x24 | |
| 8 | FT400.91.102 | Rear ballast screw | |
| 9 | FT300.34.106 | Plain washer | |
| 10 | FT300.91.101 | Rear ballast | |
| 10 | FT400.91.101 | Rear ballast | |
| 11 | FT650.91.103 | Rear ballast screw | |
| 12 | FT650.34.104 | Washer | |
| 13 | GB/T5783 | Болт M12x35 | |
| 14 | GB/T6170 | Гайка М6 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
