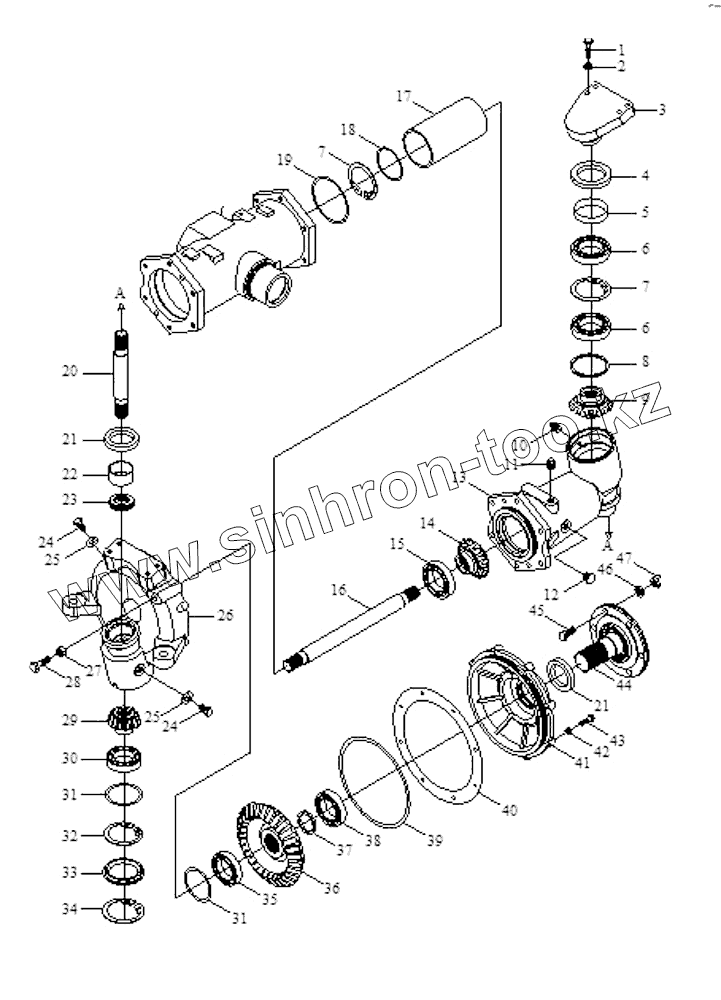

Каталог запасных частей к технике: Foton Europard 40. Front Driving Axle Assembly(yantai)
FT304.31F.001
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
24
25
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT304.31F.001 | FT304.31F.001 | Front driving axle assembly | |
| 1 | GB/T5783 | Болт M12x35 | |
| 2 | GB/T93 | Шайба 12 | |
| 3 | FT304.31F.124 | Joint cover | |
| 4 | GB/T9877.1 | Уплотнение В60х85х7 | |
| 5 | FT304.31F.125 | Oil sealing sleeve | |
| 6 | GB/T276 | Подшипник 212 | |
| 7 | GB/T893.1 | Кольцо установочное для отверстия 110 | |
| 8 | FT304.31F.188 | Plain washer | |
| 9 | FT304.31F.122 | Gear | |
| 10 | JB/T7940.1 | Масленка M10x1 | |
| 11 | Q/YXF70-1992 | Plug Z3/8 | |
| 12 | GB/T1160.2 | Oil mark | |
| 13 | FT304.31F.121 | Housing of half axle | |
| 14 | FT304.31F.126 | Gear | |
| 15 | GB/T276 | Подшипник 212 | |
| 16 | FT304.31F.145 | Spline shaft | |
| 17 | FT304.31F.127 | Sleeve | |
| 18 | FT304.31F.123 | Adjusting shim | |
| 19 | FT304.31F.130 | Adjusting shim | |
| 20 | FT304.31F.110 | Terminal spline shaft | |
| 21 | Sealing | Float oil sealing | |
| 22 | FT304.31F.111 | Sleeve 55x30 | |
| 23 | GB/T301 | Thrust ball bearing51106 | |
| 24 | FT304.31F.105 | Screw | |
| 25 | FT304.31F.106 | Washer | |
| 26 | FT304.31F.146 | Terminal housing, right | |
| 27 | GB/T6170 | Гайка М6 | |
| 28 | GB/T5783 | Болт M12x35 | |
| 29 | FT304.31F.112 | Terminal small gear | |
| 30 | GB/T276 | Подшипник 212 | |
| 31 | FT304.31F.113 | Adjusting shim | |
| 32 | GB/T893.1 | Кольцо установочное для отверстия 110 | |
| 33 | FT304.31F.022 | Sealing cover | |
| 34 | GB/T893.1 | Кольцо установочное для отверстия 110 | |
| 35 | GB/T276 | Подшипник 212 | |
| 36 | FT304.31F.108 | Terminal large gear | |
| 37 | FT304.31F.114 | Circlip | |
| 38 | GB/T276 | Подшипник 212 | |
| 39 | GB/T3452.1 | Кольцо типа "О" 145x3.55 | |
| 40 | FT304.31F.190 | Adjusting shim | |
| 41 | FT304.31F.107 | Terminal big cover | |
| 42 | GB/T93 | Шайба 12 | |
| 43 | GB/T5783 | Болт M12x35 | |
| 44 | FT304.31F.117 | Front driving axle | |
| 45 | FT304.31F.115 | Knurled bolt | |
| 46 | FT204.31F.205 | Washer | |
| 47 | GB/T6176 | Гайка M10х1.25 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
