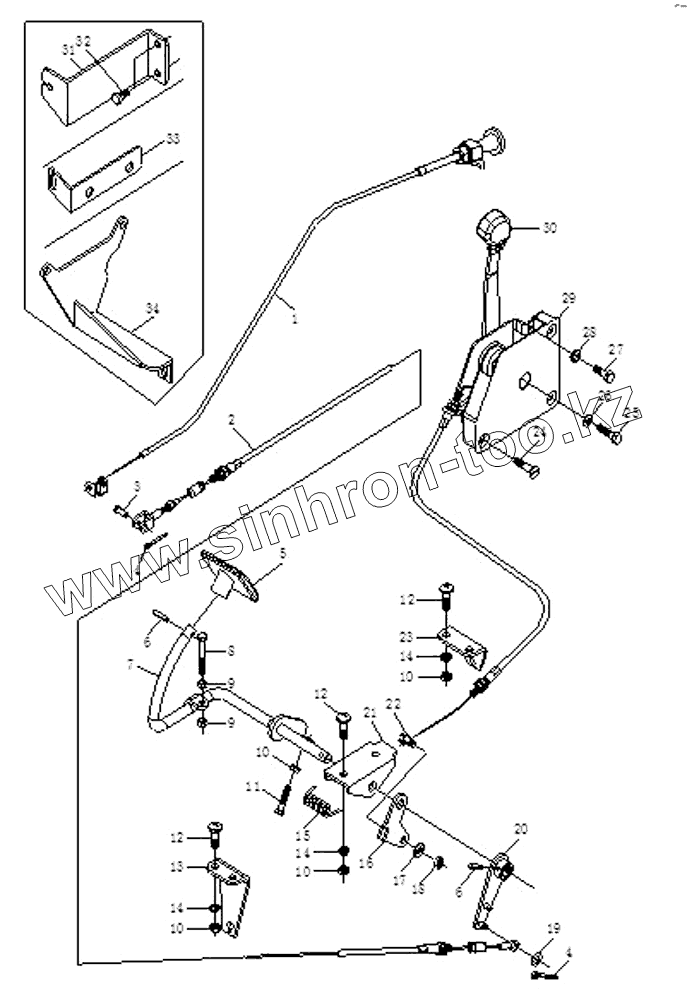

Каталог запасных частей к технике: Foton Europard 40. Control Mechanism Assembly of the Engine
1
1
2
2
3
4
4
5
6
6
7
8
9
9
10
10
10
10
11
12
12
12
13
14
14
14
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FT400.20.018 | Extinguish wire assenbly | |
| 1 | FT300.20.018 | Extinguish wire assenbly | |
| 2 | FT300.20.014 | Foot throttle wire assenbly | |
| 3 | GB/T882 | Валик фиксирующий В8х40 | |
| 4 | GB/T91 | Шплинт 3.2x25 | |
| 5 | FT650.20.101 | Foot pedal | |
| 6 | GB/T879 | Spring type straight | |
| 7 | FT300.20.013 | Foot pedal rocker weldment | |
| 8 | GB/T5781 | Bolt | |
| 9 | GB/T6172 | Гайка M10 | |
| 10 | GB/T6172 | Гайка M10 | |
| 11 | GB/T5781 | Bolt | |
| 12 | GB/T818 | Винт М6х45 | |
| 13 | FT300.20.106 | Bracket for foot throttle wire | |
| 14 | GB/T93 | Шайба 12 | |
| 14 | GB/T93 | Шайба 12 | |
| 15 | FT650.20.104 | Torsion spring | |
| 16 | FT650.20.114 | Hand throttle rocker | |
| 17 | GB/T97.1 | Шайба 12 | |
| 17 | GB/T97.1 | Шайба 12 | |
| 18 | GB/T6170 | Гайка М6 | |
| 19 | GB/T97.1 | Шайба 12 | |
| 20 | FT300.20.011 | Foot throttle rocker weldment | |
| 21 | FT650.21.108 | Throttle bracket | |
| 22 | FT650.20.133 | Fastening bolt | |
| 23 | FT300.21.105 | Bracket for hand throttle wire | |
| 24 | GB/T68 | Slotted flat countersunk screw | |
| 25 | GB/T5780 | Болт M16x35-8.8 | |
| 26 | GB/T96 | Шайба 12 | |
| 27 | GB/T5781 | Bolt | |
| 28 | GB/T93 | Шайба 12 | |
| 29 | FT700.20.324 | Hand throttle cover | |
| 30 | FT700.20.019 | Hand throttle assembly | |
| 31 | FT300.20B.102 | Bracket for wire | |
| 32 | GB/T5781 | Bolt | |
| 33 | FT300.20C.103 | Bracket for wire | |
| 34 | FT400.20.102 | Bracket for wire |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
