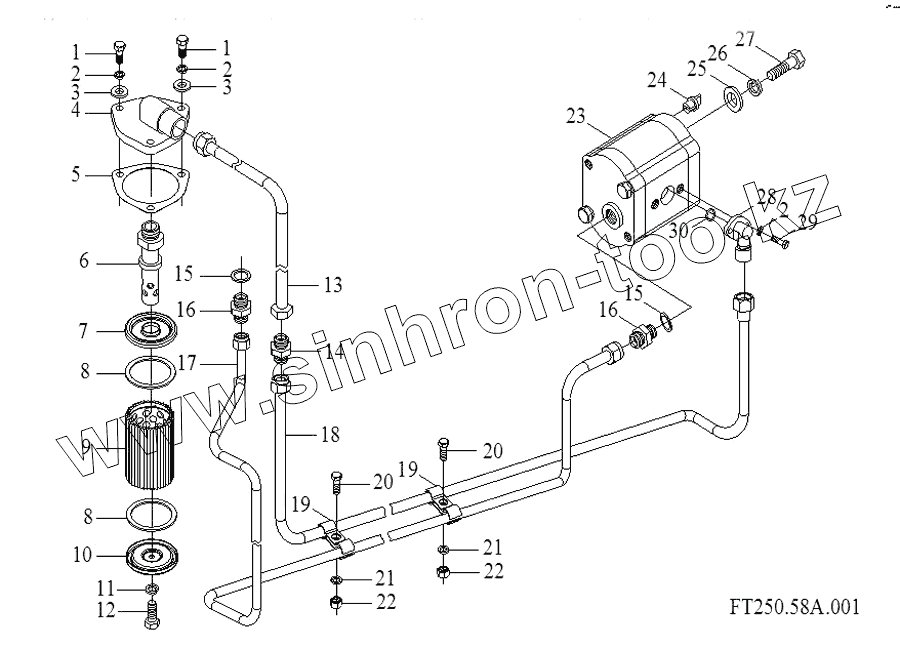

Каталог запасных частей к технике: Foton Europard 25. Oil pump and pipe assembly-1
FT250.58A.001
1
1
2
2
2
3
3
4
5
6
7
8
8
9
10
11
12
13
14
15
15
16
16
17
18
19
19
20
20
21
21
22
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT220.58A.001 | FT220.58A.001 | Oil pump and pipe assembly | |
| FT250.58A.001 | FT250.58A.001 | oil pump and pipe assembly | |
| 1 | GB/T5783 | Болт M12x35 | |
| 2 | GB/T93 | Шайба 12 | |
| 3 | GB/T97.1 | Шайба 12 | |
| 4 | FT254.58.115 | filter cover | |
| 5 | FT254.58.114 | paper gasket | |
| 6 | FT254.58.116 | center pipe of filter | |
| 7 | FT254.58.117 | upper cover of filter screen | |
| 8 | FT254.58.119 | sealing washer | |
| 9 | FT254.58.020 | filter screen assembly | |
| 10 | FT254.58.118 | lower cover of filter screen | |
| 11 | GB/T97.1 | Шайба 12 | |
| 12 | GB/T5783 | Болт M12x35 | |
| 13 | FT254.58.012 | oil suction pipe weldment1 | |
| 14 | FT254.58.102 | oil pipe coupling 1 | |
| 15 | JB/T982 | Шайба комбинированная 27 | |
| 16 | FT804.58.112 | sheath type of straight through coupling | |
| 17 | FT250.58A.010 | Oil inlet pipe assembly for distributor | |
| 18 | FT250.58.021 | oil suction pipe weldment2 | |
| 19 | FT254.58.018 | oil pipe ferrule and rubber washer agglutination | |
| 20 | GB/T5781 | Bolt | |
| 21 | GB/T93 | Шайба 12 | |
| 22 | GB/T6170 | Гайка М6 | |
| 23 | FT254.58.010 | CBJ30-E14L Gear pump | |
| 24 | FT254.58.127 | Crosss lider | |
| 25 | GB/T97.1 | Шайба 12 | |
| 26 | GB/T93 | Шайба 12 | |
| 27 | GB/T5780 | Болт M16x35-8.8 | |
| 28 | FT254.58.126 | oil pipe union, front gear pump | |
| 29 | GB/T5783 | Болт M12x35 | |
| 30 | GB3452.1 | O-seal ring |
