Каталог запасных частей к технике: Foton Europard 25. Frout wheel assembly-2 (optional)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Foton Europard 25 (2010) Foton Europard 40 (2010) TA60 (2010)

Схема > Не выбрано Cleaner Assembly-1 Cleaner Assembly-2 Cooling System Assembly Control Mechanism Assembly of the Engine-1 Control Mechanism Assembly of the Engine-2 Clutch Assembly-1 Clutch Assembly-2 Exhaust Tube Assembly-1 Exhaust Tube Assembly-2 (Optional) Exhaust Tube Assembly-3 (Optional) Battery assembly-1 Battery assembly-2 Battery assembly-3 Front driving axle assembly-1 Front driving axle assembly-2 Front driving axle assembly-3 Front driving axle assembly-4 Front driving axle assembly-5 Front driving axle assembly-6 Front driving axle assembly-7 Front axle assembly-1 Front axle assembly-2 Front axle assembly-3 Front axle assembly-3 Front axle assembly-4 Frout wheel assembly-1 Frout wheel assembly-2 (optional) Front driving wheel assembly-1 Front driving wheel assembly-2 (optional) Driving wheel assembly-1 Driving wheel assembly-2 (optional) Towing mechanism assembly Clutch housing assembly-1 Clutch housing assembly-2 Clutch housing assembly-3 Gearbox assembly-1 Gearbox assembly-2 Gearbox assembly-3 Gearbox assembly-4 Gearbox assembly-5 Gearbox assembly-6 Gearbox assembly-7 Mechanical steering wheel assembly Hydraulic steering wheel assembly Power take-off assembly Transfer case assembly-1 Transfer case assembly-2 Brake assembly-1 Brake assembly-2 Driver's seat assembly Driver's seat assembly-2 (optional) Safety frame assembly Helmet and mud guard assembly-1 Helmet and mud guard assembly-2 Helmet and mud guard assembly-3 Helmet and mud guard assembly-4 Electrical system assembly-1 Electrical system assembly-2 Toolbox installation assembly-1 Toolbox installation assembly-2 (optional) Fuel tank assembly Hitch Mechanism Assembly Hitch Mechanism Assembly-2 (optional) Lifter assembly-1 Lifter assembly-2 Suspension mechanism assembly Distributor assembly Multi-way valve's oil pump/pipe assembly-1 Multi-way valve's oil pump/pipe assembly-2 Oil pump and pipe assembly-1 Oil pump and pipe assembly-1 Oil pump and pipe assembly-2 Front ballast assembly Pneumatic braking assembly of trailer-1

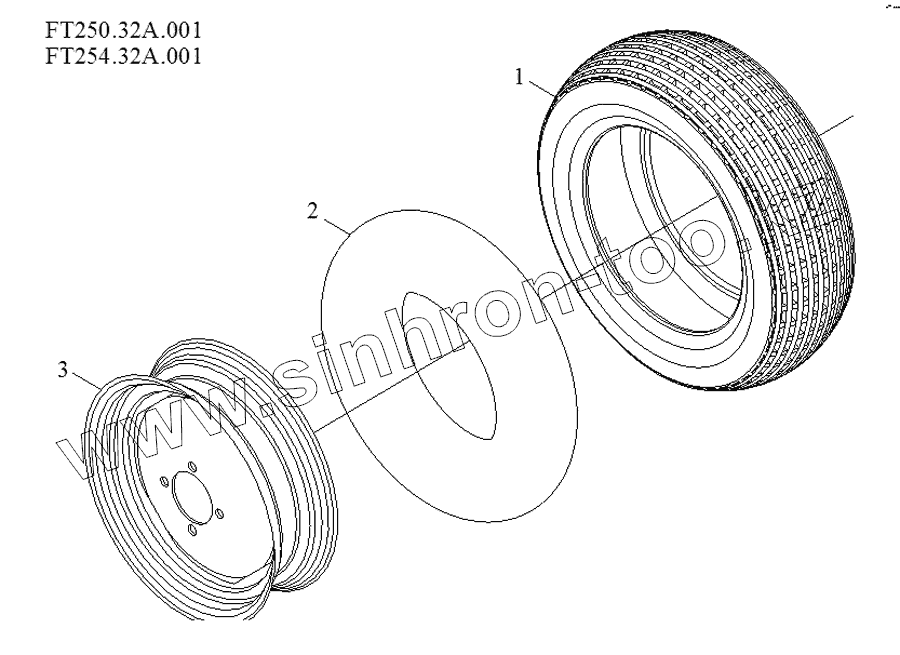

FT250.32A.001

FT254.32A.001

1

2

3

3

Позиция на иллюстрации	Заводской номер детали		Название детали
FT250.32A.001	FT250.32A.001		frout wheel assembly
FT254.32A.001	FT254.32A.001		frout wheel assembly
FT254.32A.101	FT254.32A.101		rim (5.00E-12)
FT250.32A.102b	FT250.32A.102b		web
FT254.32A.102	FT254.32A.102		web
1	GB/T2979		tire 5.00 (4.00)
2	GB/T2979		tire 5.00 (4.00)
3	FT250.32A.010b		rim weldment(5.00E-12)
3	FT254.32A.010		rim weldment(5.00E-12)
