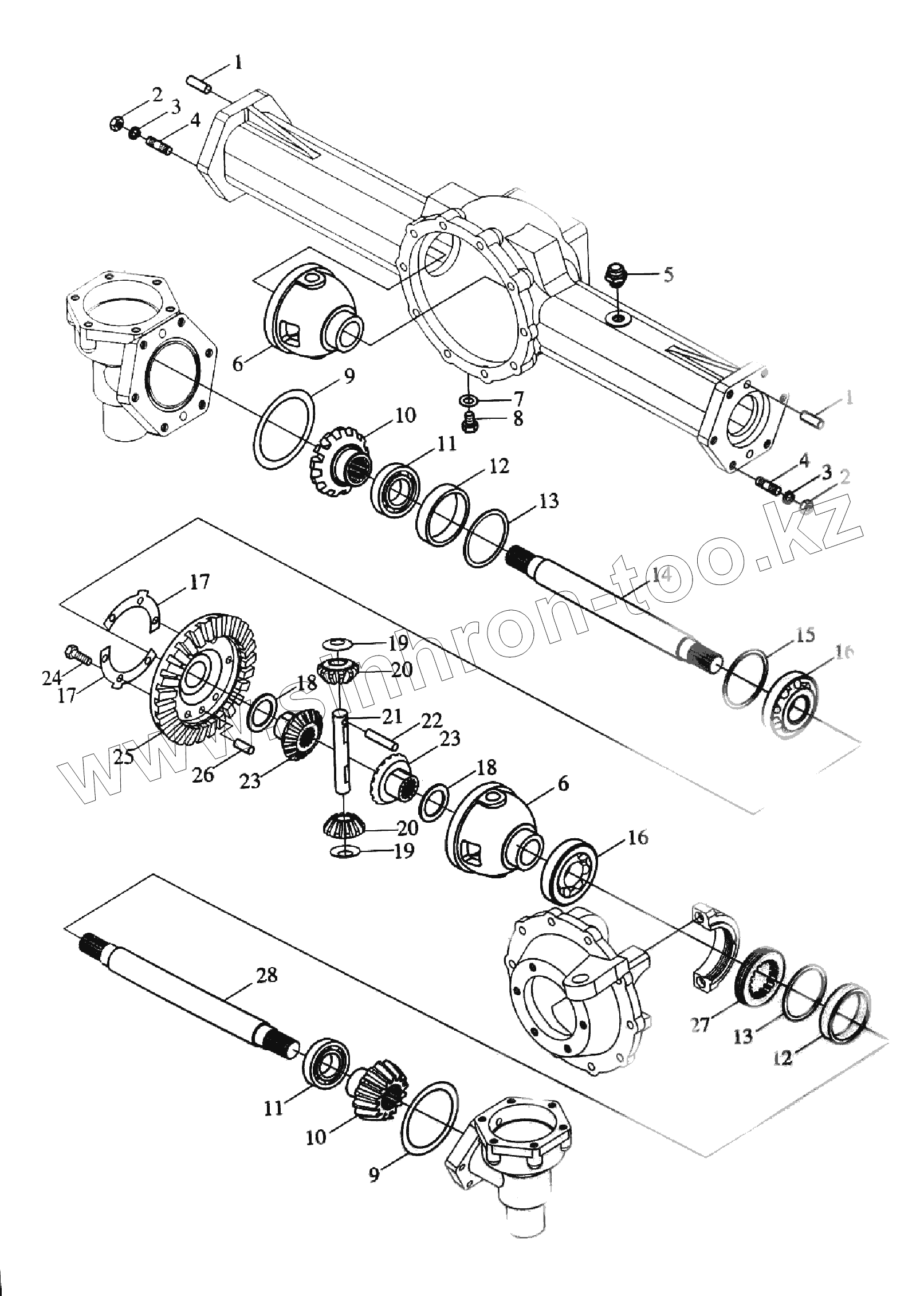

Каталог запасных частей к технике: Foton Europard 25. Front driving axle assembly-3
1
1
2
2
3
3
4
4
5
6
6
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
16
17
17
18
18
19
19
20
20
21
22
23
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT254.31F.001 | FT254.31F.001 | front driving axle assembly | |
| 1 | GB/T119 | Straight pin B12x24 | |
| 2 | GB/T6171 | Гайка М20х1.5 | |
| 3 | GB/T93 | Шайба 12 | |
| 4 | GB/T899 | Doube end stud AM12-M12x1.25x50-8.8-A2L | |
| 5 | Q/YXF68-1992 | outlet air valve | |
| 6 | FT254.31F.149 | differential housing | |
| 7 | FT304.42.118 | Washer | |
| 8 | JB/T3798 | bolt M12x1.5 | |
| 9 | GB3452.1 | O-seal ring | |
| 10 | FT304.31F.101 | Small gear of half shaft | |
| 11 | GB/T276 | Подшипник 212 | |
| 12 | FT254.31.123 | dowel bush | |
| 13 | FT254.31.124 | adjusting shim | |
| 14 | FT254.31F.142 | half shaft,left | |
| 15 | FT254.31F.134 | adjusting shim | |
| 16 | GB/T297 | Подшипник 32016 | |
| 17 | FT254.31F.135 | stop shim | |
| 18 | FT254.31F.148 | plain washer | |
| 19 | FT254.31F.146 | spherical washer | |
| 20 | FT254.31F.147 | planetary gear | |
| 21 | FT254.31F.145 | clevis pin with head of differential | |
| 22 | GB/T119 | Straight pin B12x24 | |
| 23 | FT254.31F.143 | big gear of differential | |
| 24 | GB/T5783 | Болт M12x35 | |
| 25 | FT254.31F.144 | fastigiate gear | |
| 26 | GB/T119 | Straight pin B12x24 | |
| 27 | FT254.31F.140 | Adjusting gear | |
| 28 | FT254.31F.151 | half shaft,right |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
