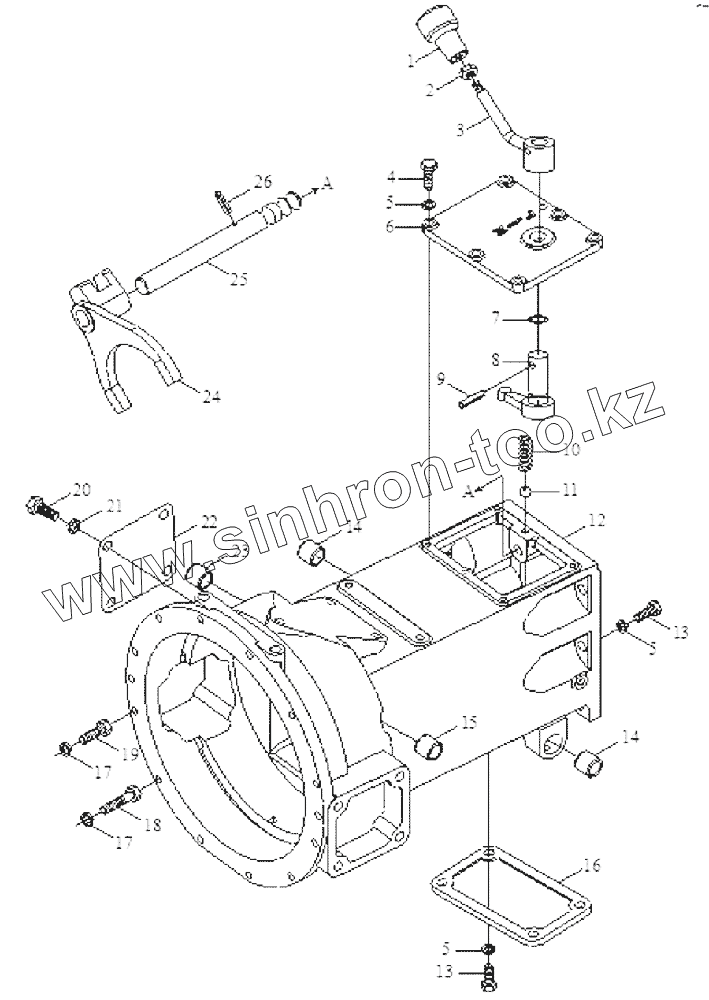

Каталог запасных частей к технике: Foton Europard 25. Clutch housing assembly-1
FT250.36B.001
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
17
18
19
20
21
22
23
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT250.36B.001 | FT250.36B.001 | Clutch housing assembly | |
| 1 | FT250.36B.020 | handle,creeping gear | |
| 2 | GB/T6172 | Гайка M10 | |
| 3 | FT250.36B.018 | shifting lever weldment,creeping gear | |
| 4 | GB/T5783 | Болт M12x35 | |
| 5 | GB/T93 | Шайба 12 | |
| 6 | FT250.36B.121 | upper cover,creeping gear | |
| 7 | GB3452.1 | O-seal ring | |
| 8 | FT250.36B.124 | auxiliary shifting rocker | |
| 9 | GB/T879 | Spring type straight | |
| 10 | FT220.37.148 | locking spring of shifting fork shaft | |
| 11 | GB/T308 | Steel bal | |
| 12 | FT250.36.101 | clutch housing | |
| 13 | GB/T5783 | Болт M12x35 | |
| 14 | FT250.36.104 | sleeve of pedal axle | |
| 15 | FT250.36.103 | long sleeve of rocker shaft | |
| 16 | FT250.36.108 | cover plate | |
| 17 | GB/T93 | Шайба 12 | |
| 18 | GB/T5782 | Болт M12x50 | |
| 19 | GB/T5783 | Болт M12x35 | |
| 20 | GB/T5781 | Bolt | |
| 21 | GB/T93 | Шайба 12 | |
| 22 | FT250.36.110 | side cover of checking hole | |
| 23 | FT250.36.102 | short sleeve of rocker shaft | |
| 24 | FT250.36B.123 | shifting fork, creeping gear | |
| 25 | FT250.36B.119 | shifting fork shaft, creeping gear | |
| 26 | GB/T879 | Spring type straight |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
