Каталог запасных частей к технике: DongFeng 504G3. Hood and Panel (A)

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

8

9

9

10

11

11

11

12

12

12

13

13

13

14

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

32

33

33

34

34

35

36

37

38

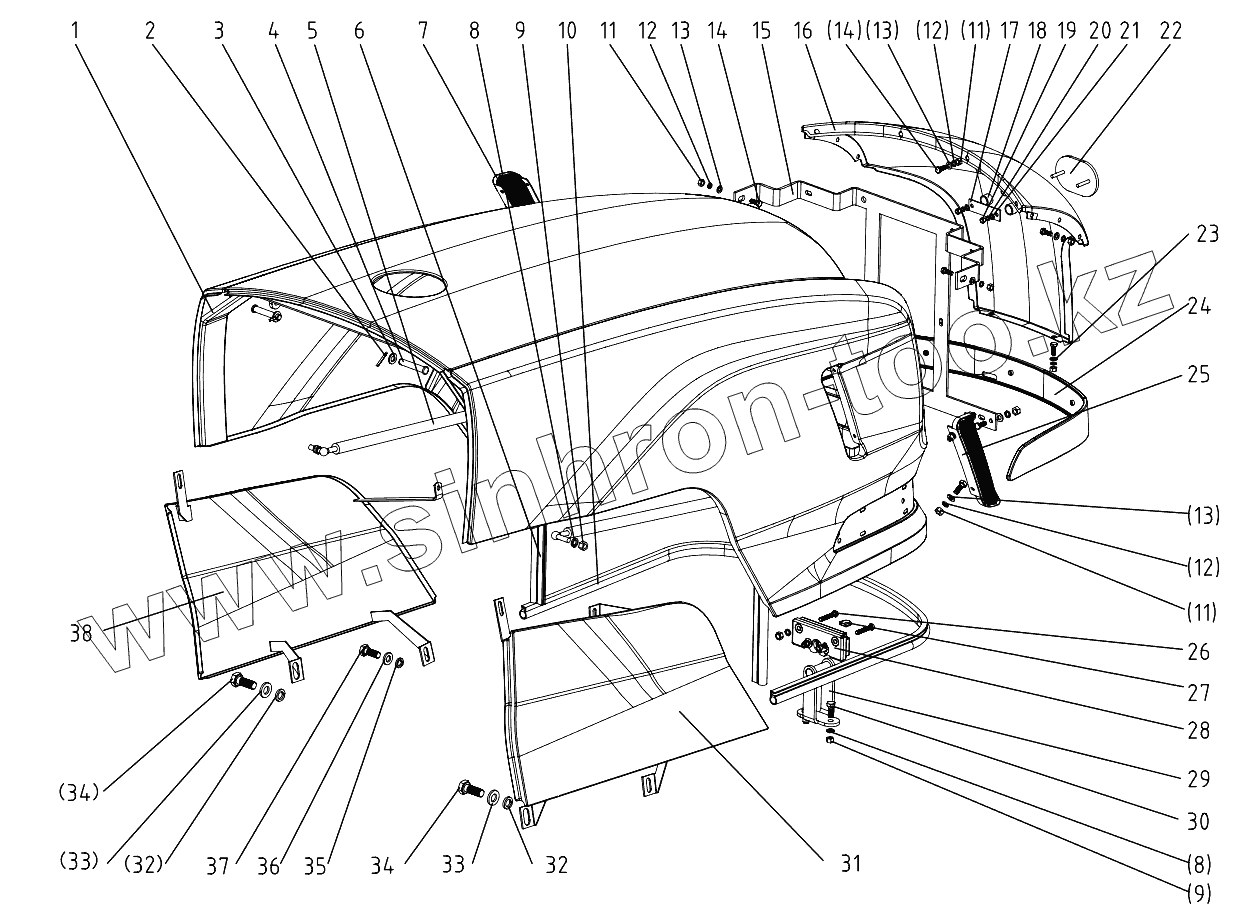

Позиция на иллюстрации	Заводской номер детали		Название детали
1	504G3.47.011		Engine Hood
2	GB/T91-2000-3.2x32		Split pin 3.2x32
3	GB/T97.1-2002-10		Plain washer 10
4	GB/T882-1986-B10x60		Clevis pin with head B10x60
5	QD16-695x293x380-BB		Gas spring
6	TFT.70.012		30# draught excluder strip
7	404-11.47.105		Left radiator grill
8	GB/T93-1987-8		Spring lock washer 8
9	GB/T6170-2000-M8		Hex. Nut M8
10	800.47.101		Rubber ring
11	GB/T6170-2000-M6		Hex. Nut M6
12	GB/T93-1987-6		Spring lock washer 6
13	GB/T97.1-2002-6		Plain washer 6
14	GB/T5783-2000-M6x16		Hex.head bolt M6x16
15	504-4.47A.014		Bracket
16	504-4.47A.103		Front cover
17	300.47.113		Scutcheon bracket
18	350.47A.104		Brand mark cushion sleeve
19	GB/T6170-2000-M5		Nut M5
20	GB/T93-1987-5		Spring lock washer 5
21	GB/T97.1-2002-5		Plain washer 5
22	550.47E.101		DF brand
23	GB/T96.2-1985-6		Plastic washer 6
24	504G3.47.018		Front garnish
25	404-11.47.106		Right radiator grill
26	GB/T5783-2000-M6x35		Hex.Head bolt M6x35
27	550.47E.105-1		Rubber sheath
28	550.47E.026		Hood lock
29	504G3-3.47.012		Lockpin
30	GB/T5783-2000-M8x20		Hex. head bolt M8x20
31	504G3-E.47.017		Left hood side under panel
32	GB/T93-1987-16		Spring Lock washer16
33	GB/T97.1-2002-16		Plain washer 16
34	GB/T5783-2000-M16x35		Hex. head bolt M16x35
35	GB/T93-1987-14		Spring lock washer 14
36	GB/T97.1-2002-14		Plain washer 14
37	GB/T5783-2000-M14x25		Hex. head bolt M14x25
38	504G3-E.47.018		Right hood side under panel
