Каталог запасных частей к технике: DongFeng 504G3. Front Wheel Drive Axle (Left Side-Slowdown)
1
2
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

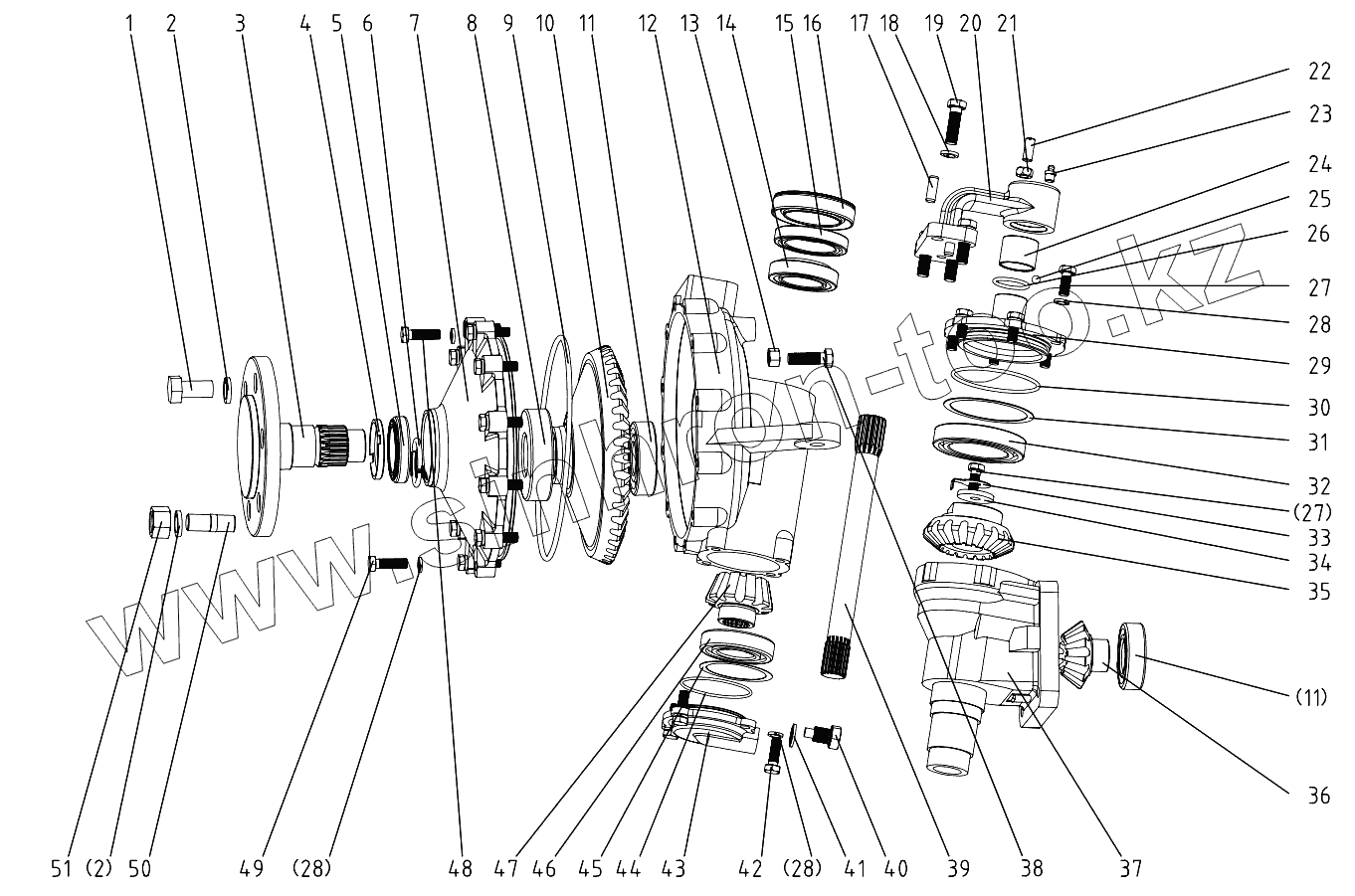

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5786-2000-M18x1.5x35 | hex. head bolt M18x1.5x35 | |
| 2 | GB/T93-1987-18 | Spring lock washer 18 | |
| 3 | 504G3.31.101 | Drive shaft | |
| 4 | 504G3.31.127-1 | Oil seal blocking ring | |
| 5 | 404-9.31.111 | Oil-seal MC50x72x12/15 | |
| 6 | 304.31.102-2 | Fixing ring of drive shaft | |
| 7 | 504G3.31.102-1 | Drive shaft cover | |
| 8 | GB/T276-1994-6309 | Ball bearing 6309 | |
| 9 | GB/T3452.1-1992-236x5.3 | O-ring seal 236x5.3 | |
| 10 | 504G3.31.117 | Driven bevel gear of final drive | |
| 11 | GB/T276-1994-6307 | Ball bearing 6307 | |
| 12 | 504G3.31.122 | Left final drive housing | |
| 13 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 14 | GB/T276-1994-32009 | Ball bearing 32009 | |
| 15 | GB/T276-1994-61911 | Ball bearing 61911 | |
| 16 | 504G3.31.123 | Guard against turbid oil-seal MC60x90x20/14 | |
| 17 | GB/T119.1-2000-B10x28 | Straight pin B10x28 | |
| 18 | GB/T93-1987-12 | Spring lock washer 12 | |
| 19 | GB/T5783-2000-M12x40 | Hex. head bolt M12x40 | |
| 20 | 504G3.31.201 | Steering arm | |
| 21 | GB/T6171-2000-M10x1 | Fine thread hex. nut M10x1 | |
| 22 | 504.31.144 | Set screw M10x1 | |
| 23 | JB/T7940.2-1995-M8x1 | Grease cup M8x1 | |
| 24 | 304.31.202-1 | Steering arm bushing | |
| 25 | GB/T308-2002-8.7312G200b | Ball 8.7312G200b | |
| 26 | GB/T3452.1-1992-34.5x2.65 | O-ring seal 34.5x2.65 | |
| 27 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 | |
| 28 | GB/T93-1987-10 | Spring lock washer 10 | |
| 29 | 504G3.31.107 | Upper bearing cover | |
| 30 | GB/T3452.1-1992-92.5x3.55 | O-ring seal 92.5x3.55 | |
| 31 | 554.31C.147 | Adjusting shims | |
| 32 | GB/T276-1994-6013 | Ball bearing 6013 | |
| 33 | 304.31.138 | Lock washer | |
| 34 | 304.31.110-1 | Blocking ring of upright shaft | |
| 35 | 504G3.31.108 | Driven bevel gear of the first drive | |
| 36 | 504G3.31.109 | Driving bevel gear of the first drive | |
| 37 | 504G3.31.104-1 | Upright shaft housing | |
| 38 | GB/T5783-2000-M12x30 | Hex. head bolt M12x30 | |
| 39 | 504G3.31.106-1 | Upright shaft | |
| 40 | 200.38.024 | Oil drain plug | |
| 41 | JB-FT-CU-16 | Copper washer 16 | |
| 42 | GB/T5783-2000-M10x30 | Hex. head bolt M10x30 | |
| 43 | 504G3.31.118 | Lower bearing cover | |
| 44 | GB/T3452.1-1992-75x2.65 | O-ring seal 75x2.65 | |
| 45 | 850-2.39.112/113/114 | Adjusting shims | |
| 46 | GB/T276-1994-6208 | Ball bearing 208 | |
| 47 | 504G3.31.120 | Driving bevel gear of final drive | |
| 48 | GB/T5783-2000-M10x40 | Hex. head bolt M10x40 | |
| 49 | GB/T5783-2000-M10x35 | Hex. head bolt M10x35 | |
| 50 | 304.31.179 | Double screw bolt | |
| 51 | GB/T6176-2000-M18x1.5 | Hex. nut M18x1.5 |
