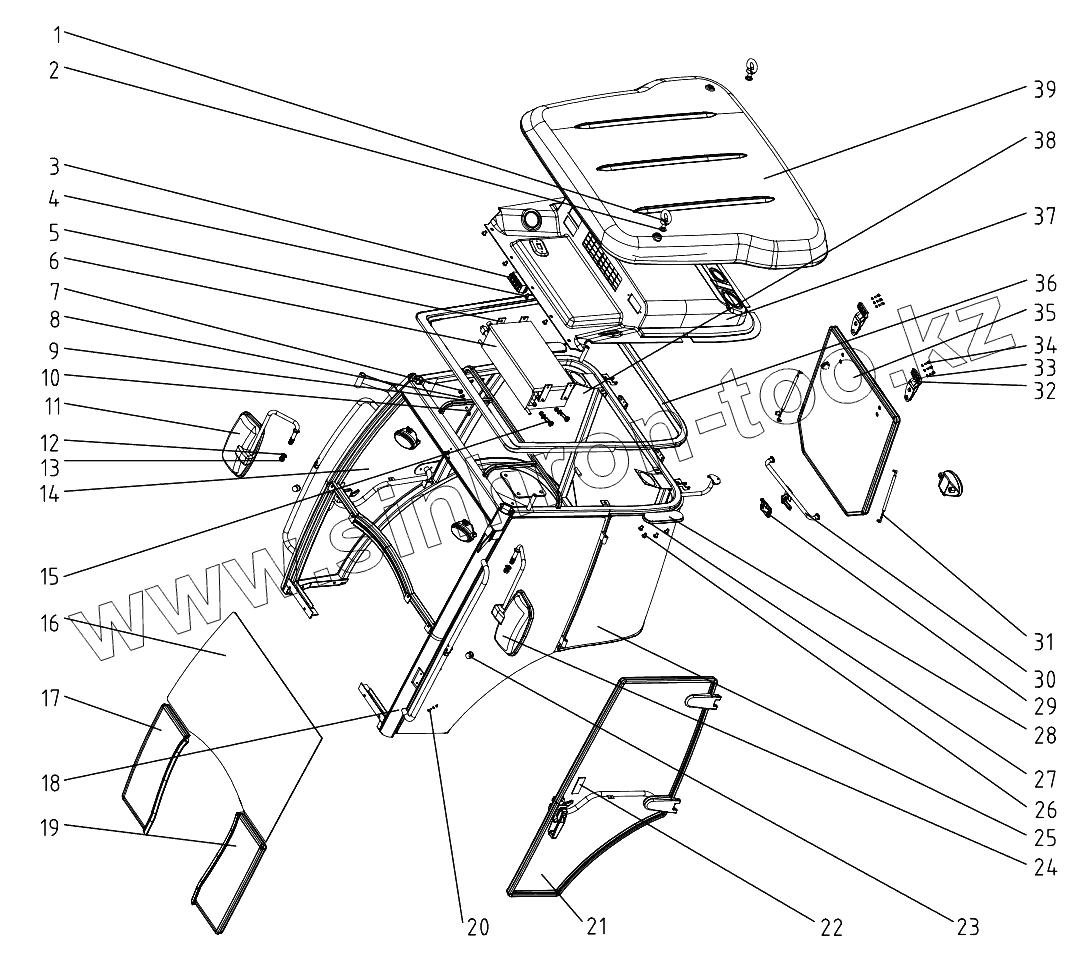

Каталог запасных частей к технике: DongFeng 504G3. Cab Assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Позиция на иллюстрации Заводской номер детали Название детали
1 504G3.45.223 Washer
2 GB/T825-1988 Lifting eye bolt M12
3 504G3.48A.102 Light switch
4 Set screw Set screw
5 550-1.45A.220 The steel plate fixed air conditioning
6 550-1.45A.059 Air conditioning
7 GB/T6170-2000-M8 Hex. Nut M8
8 GB/T93-1987-8 Spring lock washer 8
9 GB/T97.1-2002-8 Plain washer 8
10 GB/T5783-2000-M8x35 Hex. Head bolt M8x35
11 550-1.45A.045 Rearview mirror assembly
12 GB/T97.1-2002-10 Plain washer 10
13 GB/T6170-2000-M10 Hex .nut M10
14 504G3.45.042-1 Right door assembly
15 GB/T5783-2000-M8x35 Hex. Head bolt M8x35
16 504G3-E.45.401 Front window
17 504G3-E.45.403 Front right windscreen
18 504G3-E.45.050 Cab assembly weldment
19 504G3-E.45.402 Front left windscreen
20 GB/T5783-2000-M8x40 Hex. head bolt M8x40
21 504G3.45.041-1 Left door assembly
22 550-1.45A.223 Door lock warning sign
23 504G3.45.368 Rubber sheath
24 550-1.45A.052 Rearview mirror assembly
25 504G3.45.211 The left side rear window
26 GB/T845-1985-ST4.8x16 Self tapping screw ST4.8x16
27 504G3.45.364 Vent cover plate
28 504G3.45.365 Vent the sponge
29 550-1.45A.216 Rear window lock baffle
30 550-1.45A.049 Rear window lock assembly
31 504G3.45.051 Gas spring
32 550-1.45A.055 Air condtioning air inlet
33 GB/T93-1987-6 Spring lock washer 6
34 GB/T70.1-2000-M6x20 Nut bolt M6x20
35 504G3.45.215 Rear window
36 504G3.45.221 Plafond sponge
37 504G3.45.056 Top decorate combination
38 504G3.45.218 The right side rear window
39 504G3.45.091 Top
