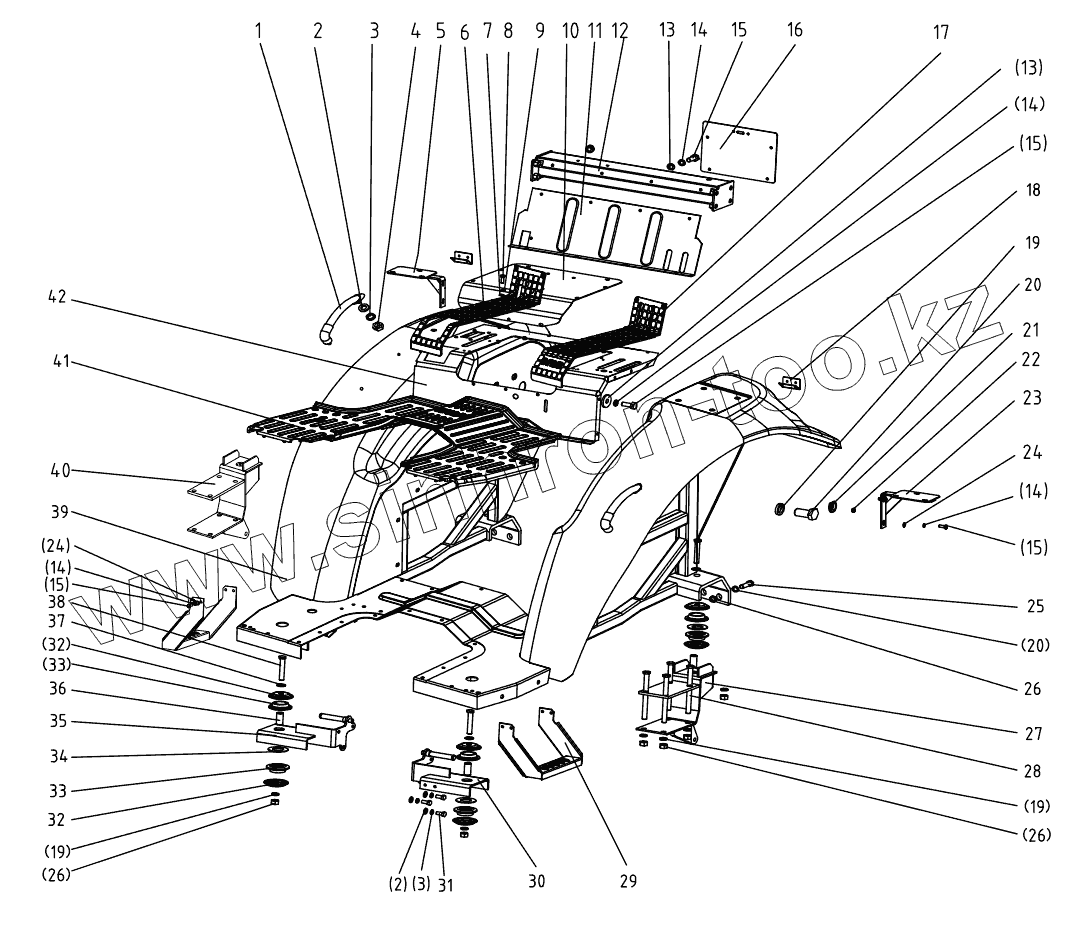

Каталог запасных частей к технике: DongFeng 504G3. Foot Mud Shields Rest 504G3.51.001-1
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
15
15
15
16
17
18
19
19
19
20
20
21
22
23
24
24
25
26
26
26
27
28
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 550.51D.101 | Handle hold | |
| 2 | GB/T97.1-2002-12 | Plain washer 12 | |
| 3 | GB/T93-1987-12 | Spring lock washer 12 | |
| 4 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 5 | 404-11.51.026 | Right taillight bracket rest | |
| 6 | 504G3.51.109-1 | Right joy stick cover board | |
| 7 | GB/T97.1-2002-6 | Plain washer 6 | |
| 8 | GB/T5783-2000-M6x16 | Hex.head bolt M6x16 | |
| 9 | GB/T93-1987-6 | Spring lock washer 6 | |
| 10 | 504G3.51.015 | Seat plank | |
| 11 | 504G3.51.024 | Squab panel | |
| 12 | 504G3.51.023 | Rear crossbeam | |
| 13 | GB/T5287-2002-8 | Plain washer 8 | |
| 14 | GB/T93-1987-8 | Spring lock washer 8 | |
| 15 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 16 | 504G3.51.107 | License plate scaleboard | |
| 17 | 504G3.51.108-1 | Left joy stick cover board | |
| 18 | 404-11.51.107 | Back eflex reflector subpanel | |
| 19 | GB/T93-1987-16 | Spring Lock washer16 | |
| 20 | GB/T5783-2000-M16x40 | Hex. head bolt M16x40 | |
| 21 | 550-1.47.104 | Battery line guard | |
| 22 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 23 | 404-11.51.025 | Left taillight bracket rest | |
| 24 | GB/T97.1-2002-8 | Plain washer 8 | |
| 25 | GB/T5783-2000-M16x60 | Hex. head bolt M16x60 | |
| 26 | GB/T6170-2002-M16 | Hex. nut M16 | |
| 27 | 504G3.51.016-2 | Rear bracket | |
| 28 | GB/T5782-2000-M16x210 | Hex. head bolt M16x210 | |
| 29 | 504G3.51.011-1 | Ladder frame | |
| 30 | 504G3.45.022-1 | Left-front backstop | |
| 31 | GB/T5783-2000-M12x25 | Hex. head bolt M12x25 | |
| 32 | 504G3.51.123 | Damping protecting cover | |
| 33 | 504G3.51.124 | Rubber damping ring | |
| 34 | 504G3.51.127 | Rubber pad | |
| 35 | 504G3.45.019-1 | Right-front backstop | |
| 36 | 504G3.51.125 | Damping block sleeve | |
| 37 | GB/T97.1-1987-16 | Plain washer 16 | |
| 38 | GB/T5782-2000-M16x100 | Hex. head bolt M16x100 | |
| 39 | 504G3.51.010-1 | floor frame weld | |
| 40 | 504G3.51.032-2 | Rear bracket (right) | |
| 41 | 504G3.51.101 | Rubber floor | |
| 42 | 504G3.51.014-1 | rear foot rest |
