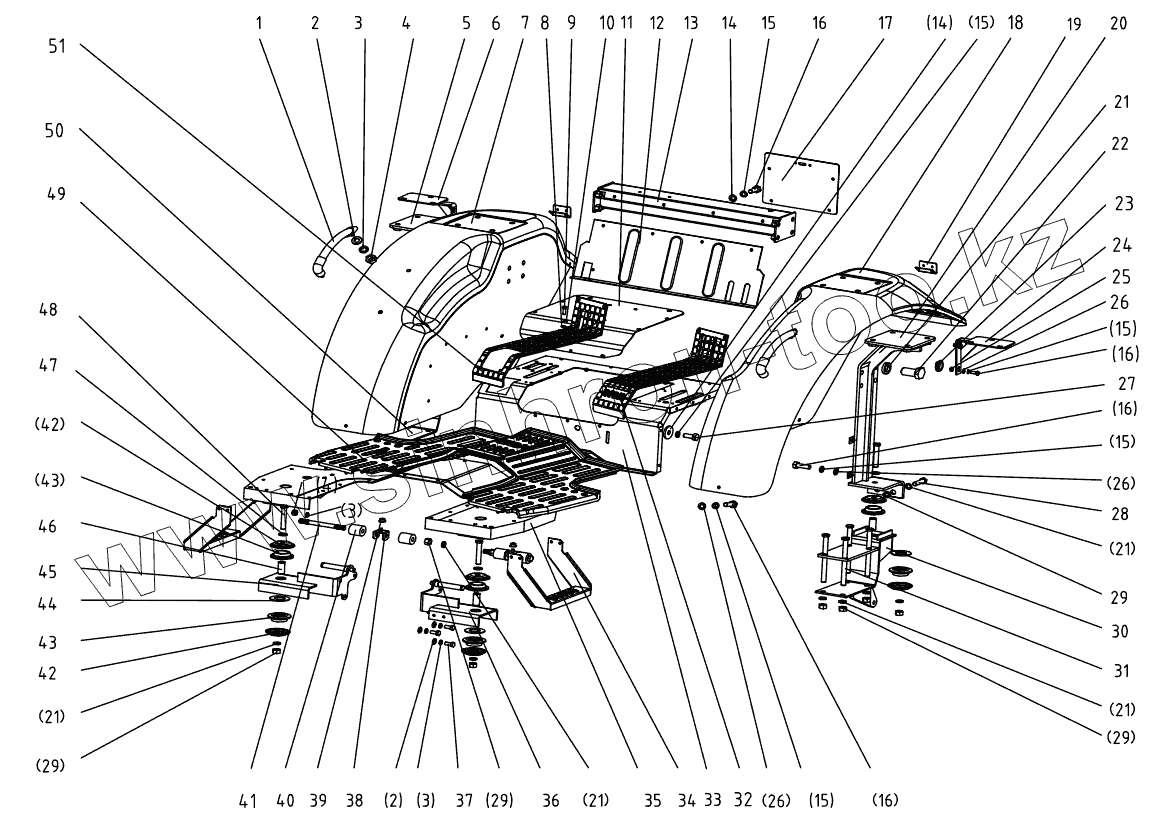

Каталог запасных частей к технике: DongFeng 504G3. Foot Mud Shields Rest 504G3.51.001
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
15
15
15
16
16
16
16
17
18
19
20
21
21
21
21
21
22
23
24
25
26
26
26
27
28
29
29
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
42
43
43
44
45
46
47
48
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 550.51D.101 | Handle hold | |
| 2 | GB/T97.1-2002-12 | Plain washer 12 | |
| 3 | GB/T93-1987-12 | Spring lock washer 12 | |
| 4 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 5 | 504G3.51.018A-1 | Right-rear stanchion | |
| 6 | 404-11.51.026 | Right taillight bracket rest | |
| 7 | 504G3.51.031A | Right mud Shield | |
| 8 | GB/T97.1-2002-6 | Plain washer 6 | |
| 9 | GB/T5783-2000-M6x16 | Hex.head bolt M6x16 | |
| 10 | GB/T93-1987-6 | Spring lock washer 6 | |
| 11 | 504G3.51.015 | Seat plank | |
| 12 | 504G3.51.024 | Squab panel | |
| 13 | 504G3.51.023 | Rear crossbeam | |
| 14 | GB/T5287-2002-8 | Plain washer 8 | |
| 15 | GB/T93-1987-8 | Spring lock washer 8 | |
| 16 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 17 | 504G3.51.107 | License plate scaleboard | |
| 18 | 504G3.51.021A | Left mud Shield | |
| 19 | 404-11.51.107 | Back eflex reflector subpanel | |
| 20 | 504G3.51.017A-1 | Left-rear stanchion | |
| 21 | GB/T93-1987-16 | Spring Lock washer16 | |
| 22 | GB/T5783-2000-M16x40 | Hex. head bolt M16x40 | |
| 23 | 550-1.47.104 | Battery line guard | |
| 24 | 404-11.51.025 | Left taillight bracket rest | |
| 25 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 26 | GB/T97.1-2002-8 | Plain washer 8 | |
| 27 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 28 | GB/T5783-2000-M16x60 | Hex. head bolt M16x60 | |
| 29 | GB/T6170-2002-M16 | Hex. nut M16 | |
| 30 | 504G3.51.016-1 | Rear bracket | |
| 31 | GB/T5782-2000-M16x210 | Hex. head bolt M16x210 | |
| 32 | 504G3.51.108-1 | Left joy stick cover board | |
| 33 | 504G3.51.014-1 | rear foot rest | |
| 34 | 504G3.51.011-1 | Ladder frame | |
| 35 | 504G3.45.012 | Front foot rest | |
| 36 | 504G3.45.022 | Left-front backstop | |
| 37 | GB/T5783-2000-M12x25 | Hex. head bolt M12x25 | |
| 38 | 504G3.51.036 | Orientation part for middle bearing | |
| 39 | 504G3.51.102 | Rubber sheath | |
| 40 | 504G3.51.162 | Rubber bearing | |
| 41 | 504G3.51.163 | Hex. head bolt | |
| 42 | 504G3.51.123 | Damping protecting cover | |
| 43 | 504G3.51.124 | Rubber damping ring | |
| 44 | 504G3.51.126 | Washer | |
| 45 | 504G3.45.019 | Right-front backstop | |
| 46 | 504G3.51.125 | Damping block sleeve | |
| 47 | GB/T97.1-1987-16 | Plain washer 16 | |
| 48 | GB/T5782-2000-M16x100 | Hex. head bolt M16x100 | |
| 49 | 504G3.51.101 | Rubber floor | |
| 50 | 504G3.51.032-1 | Rear bracket | |
| 51 | 504G3.51.109-1 | Right joy stick cover board |
