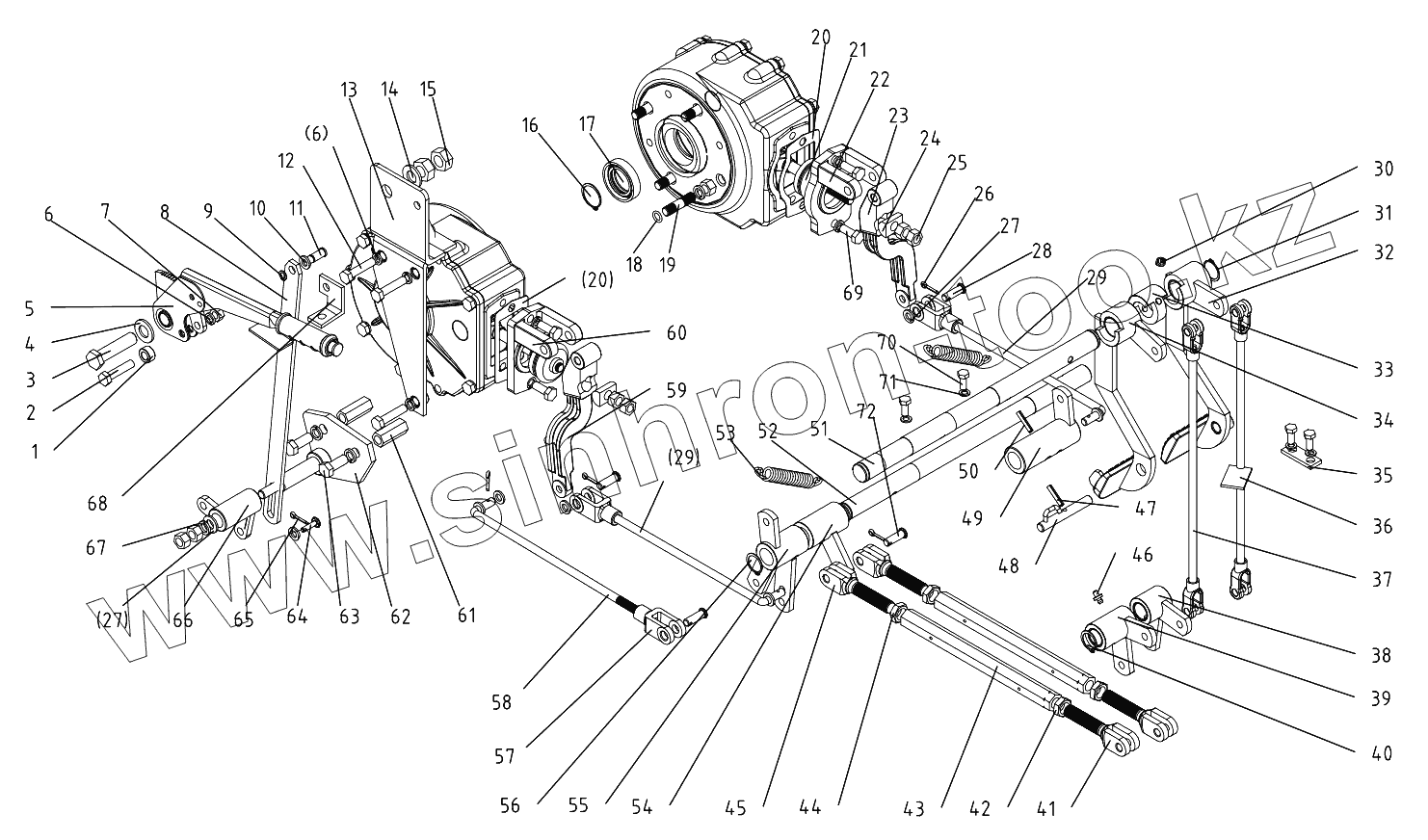

Каталог запасных частей к технике: DongFeng 404G2. Brake Operation Mechanism

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
Позиция на иллюстрации Заводской номер детали Название детали
1 450.43.106 Cushion
2 GB/T5783-2000-M10x35 Hex. head bolt M10x35
3 GB/T5783-2000-M16x60 Hex. head bolt M16x60
4 GB/T97.1-2002-16 Plain washer 16
5 250-1.43.012 Hand brake weld part
6 GB/T93-1987-10 Spring lock washer 10
7 GB/T 6170-2000-M10 Hex .nut M10
8 404G2-6.43.028 Upright pull bar weld part
9 GB/T894.1-1986-10 Circlip for shaft 10
10 GB/T97.1-2002-10 Plain washer 10
11 450.43.137 Brake bar clevis pin
12 GB/T5783-2000-M10x45 Hex. head bolt M10x45
13 350-1.43.013 Hand brake pull link weldment
14 GB/T93-1987-16 Spring Lock washer16
15 GB /T6170-2000-M16 Hex. nut M16
16 GB/T894.1-1986-35 Circlip for shaft 35
17 HG4-692-67-SD32x52x12 Oil envelop SD32x52x12
18 GB/T3452.1-1992-10.6x2.65 O-ring seal10.6x2.65
19 GB/T898-1988-AGM12-M12x35 Double end stud AGM12-M12x35
20 280.43.103 Paper gasket
21 280.43.118 Pressurize bar
22 280.43.104 Left rocker arm pedestal
23 300.43.155 Left rocker arm
24 280.43.105 Self-aligning block
25 GB /T6170-2000-M12 Hex. nut M12
26 GB/T91-2000-3.2x28 Split pin 3.2x28
27 GB/T97.2-2002-12 Chamfered plain washer 12
28 GB/T882-1986-B12x40 Clevis pin with head B12x40
29 404G2-6.43.018 Back pullback weld part
30 JB/T7940.1-1995-M10x1 Grease cup M10x1
31 GB/T894.1-1986-26 Circlip for shaft 26
32 304G2-6.43.020 Right brake pedal
33 304G2-6.43.112 Limit sheath
34 304G2-6.43.019 Left brake pedal
35 304G2-6.43.133 Safety on-off fix board
36 304G2-6.43.024 Left pull bar weld part
37 304G2-6.43.010 Right front pullback weld part
38 304G2-6.43.025 Left connect cannula assembled
39 304G2-6.43.026 Right connect cannula assemble
40 GB/T894.1-1986-22 Circlip for shaft 22
41 304G2-6.43.118 Pullback fork
42 GB/T6173-2000-M16x11.5 Hex. nut M16x11.5
43 304G2-6.43.142 Handspike
44 GB/T6173-2000-M16x11.5 Hex. nut M16x11.5
45 304G2-6.43.119 Pullback fork
46 JB/T7940.2-1995- 45°M10x1 Angle grease nipple 45°M10x1
47 GB/T879.1-2000-5x20 Slotted spring pin 5x20
48 800.43.024 Brake pedal link axis weld part
49 404G2-6.43.016 Left brake cannula weld part
50 GB/T879.4-2000-8x40 Spring split pin 8x40
51 304G2-6.43.204 Detent axis
52 404G2-6.43.205 Back brake transmission axis
53 200.43.125 External return spring
54 304G2-6.43.016 Middle cannula weld part
55 304G2-6.43.017 Right brake cannula weld part
56 GB/T894.1-1986-24 Circlip for shaft 24
57 254G2.43.102 Draw rod fork
58 404G2-6.43.021 Hand brake pull link weldment
59 300.43.150 Right rocker arm
60 280.43.110 Right rocker arm pedestal
61 350-1.43.106 Сonnecting nut
62 404G2-6.43.014 Turn axis Support boare weld part
63 GB/T5783-2000-M12x30 Hex. head bolt M12x30
64 GB/T882-1986-B12x22 Clevis pin with head B10x22
65 GB/T91-2000-3.2x20 Split pin 3.2x20
66 404G2-6.43.015 Turn axis weld part
67 GB/T93-1987-12 Spring lock washer 12
68 404G2-6.43.123 Safety on-off fix board
69 GB/T5783-2000-M10x25 Hex. head bolt M10x25
70 GB/T29.1-1988-M8x25 Hex. head bolt M8x25
71 GB/T97.1-2002-8 Plain washer 8
72 GB/T882-1986-B10x32 Clevis pin with head B10x32
