Каталог запасных частей к технике: DongFeng 404CE. Transmission shaft

Тип техники

Марка

Модель

Схема

1

2

3

4

4

4

5

6

7

8

9

10

11

12

12

12

13

13

13

14

14

15

15

16

16

17

17

18

19

19

20

21

22

23

24

24

25

26

27

28

29

30

31

32

33

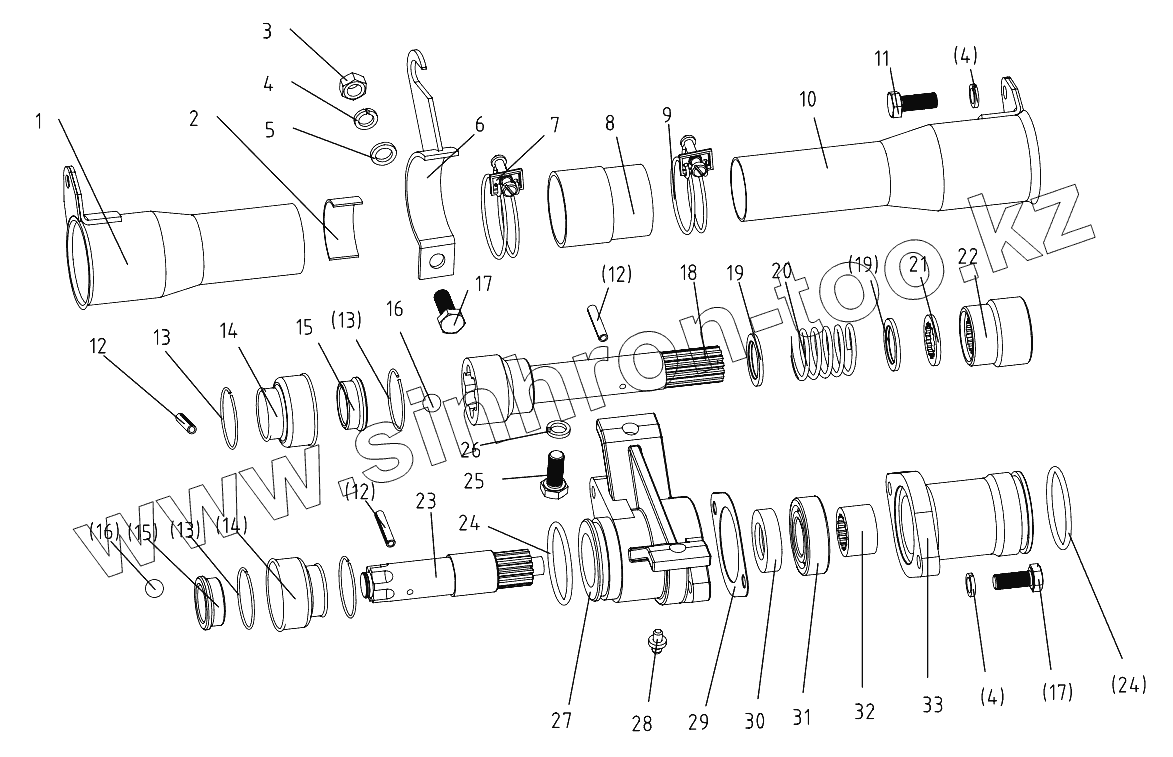

Позиция на иллюстрации	Заводской номер детали		Название детали
1	404В.36.012		Front housing
2	304.36.114		Rubber pad
3	GB/T6170-2000-М8		Hex. nut M8
4	GB/T93-1987-8		Spring lock washer 8
5	GB/T97.1-2002-8		Plain washer 8
6	304.36.013-1		Fixing bracket
7	304.36.014		Hoop 53
8	304.36.103		Seal sleeve
9	304.36.015		Hoop 48
10	304.36.016		Rear housing
11	GB/T5783-2000- М8x20		Hex. head bolt М8х20
12	GB/T879.1-2000-4x30		Slotted spring pin 4x30
13	GB/T3081-1982-1-1.4		Steel wire I-1.4
14	304.36.108		Rubber cover
15	304.36.101		Support sleeve
16	GB/T308-2002-9		Steel ball dia.9
17	GB/T5783-2000-M8x25		Hex. head bolt M8x25
18	404В.36.011		Transmission shaft
19	304.36.104		Blocking ring (2)
20	304.36.105		Spring
21	304.36.106		Seal blocking ring
22	304.36.107		Rear connecting-sleeve
23	304.36.112		Rear mid-shaft
24	GB/T3452.1-1992-48.7x3.55		O-ring seal 48.7x3.55
25	GB/T5783-2000- М10х25		Hex. head bolt M10x25
26	GB/T93-1987-10		Spring lock washer 10
27	304.36.109		Mid-shaft seat
28	JB/T7940.1-1995- M10x1		Angle grease nipple M10x1
29	304.36.110		Paper gasket
30	HG4-692-67- PG25x42x10		Oil seal PG25x42x10
31	GB/T278-1989-60205		Ball bearing with shields 6020
32	304.36.113		Connecting sleeve
33	304.36.111		Mid-shaft housing
