Каталог запасных частей к технике: DongFeng 304G2. Water Pump and Fan Assembly
1
2
2
2
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
41
42
43

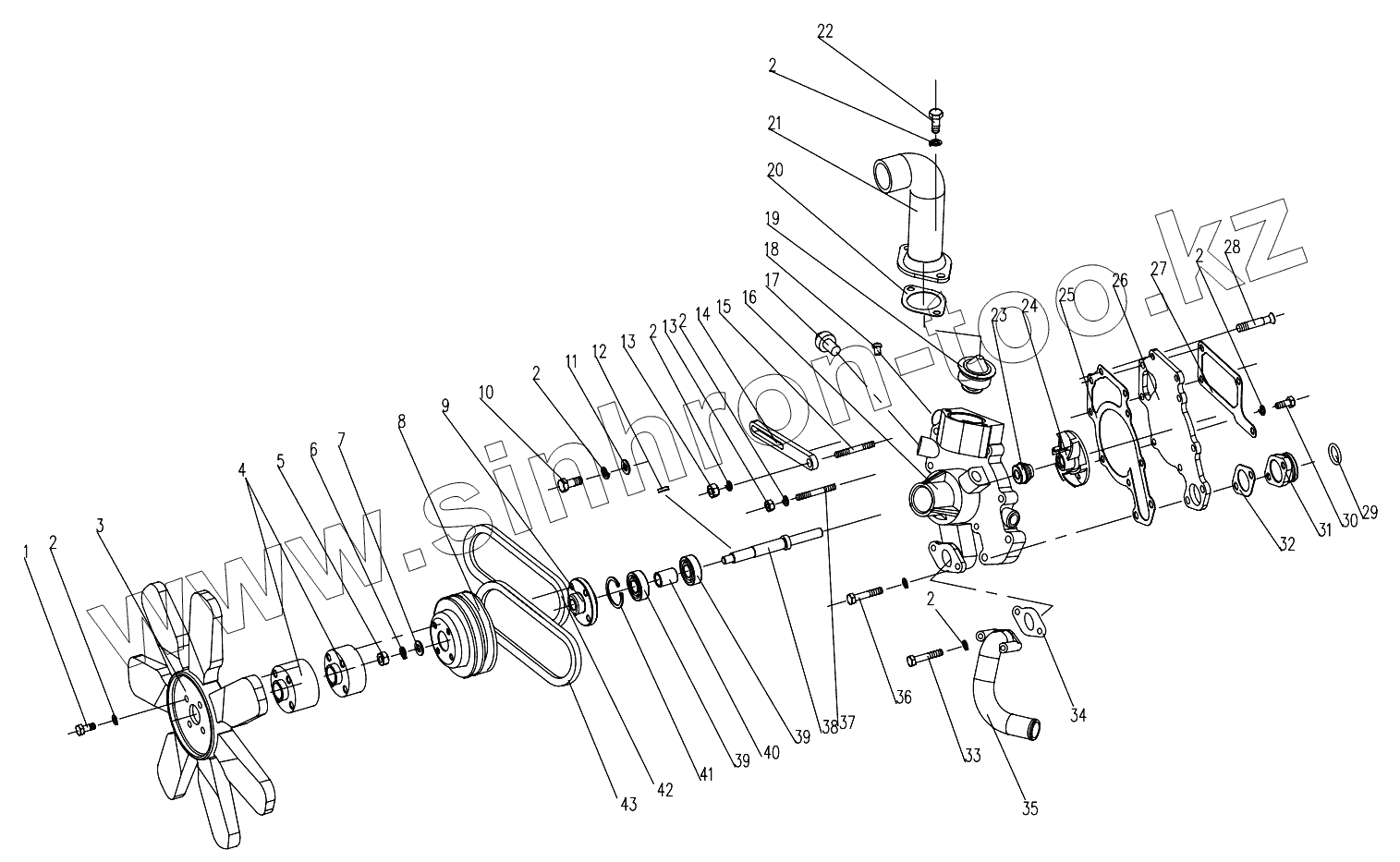

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5783-2000-M8x85 | Bolt M8x85 | |
| 2 | GB/T859-1987-8 | Washer 8 | |
| 3 | CC490Q-080012 | Cooling fan | |
| 4 | N390T-08020(B) | Fan pad | |
| 5 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 6 | GB/T859-1987-10 | Washer 10 | |
| 7 | GB/T97.1-2002-10 | Plain washer 10 | |
| 8 | N390T-08011(A) | Water pump pulley | |
| 9 | N485T-08012 | Water pump pulley housing | |
| 10 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 11 | GB/T97.1-2002-8 | Plain washer 8 | |
| 12 | GB/T1099-2003-4x36 | Key 4x36 | |
| 13 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 14 | N390T-08018C | Bracing | |
| 15 | GB/T898-1976-M8x50 | Stud M8x50 | |
| 16 | N85T-08004E | Water pump housing | |
| 17 | CZ475Q-170006 | Plug | |
| 18 | N390T-03025A | Stuffy cover | |
| 19 | N85Q-17003 | Thermostat | |
| 20 | N85T-08008 | Thermostat housing gasket | |
| 21 | N485Q-17001(R) | Thermostat cover | |
| 22 | GB/T5783-2000-M8x30 | Hex. head bolt M8x30 | |
| 23 | N85T-08003 | Water seal ring IF-12 | |
| 24 | N85T-08005 | Water pump impeller | |
| 25 | N85T-08009 | Water pump gasket | |
| 26 | N85T-08010 | Water pump adapter | |
| 27 | N85T-08017 | Water pump adapter gasket | |
| 28 | GB/T68-2000-M8x16 | Screw M8x16 | |
| 29 | GB/T3452.1-2005- 40x3.1 | Seal ring 40x3.1 | |
| 30 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 31 | N85T-08013 | Water drain connector | |
| 32 | N85T-08014 | Water drain connector gasket | |
| 33 | GB/T5782-2000-M8x80 | Hex. head bolt M8x80 | |
| 34 | N485T-08022 | gasket | |
| 35 | N485T-08021 | Water pipe | |
| 36 | GB/T5780-2000-M8x45 | Bolt M8x45 | |
| 37 | GB/T898-1988-M8x45 | Stud M8x45 | |
| 38 | N85T-08006 | Water pump shaft | |
| 39 | GB/T276-1994-6007 | Ball bearing 6007 | |
| 40 | N85T-08002 | Bearing spacing sleeve | |
| 41 | GB/T893.2-1986-35 | Circlip 35 | |
| 42 | GB12732-2008-AV15x900 | Fan belt AV15x900 | |
| 43 | GB12732-2008-AV15x650 | Fan belt AV15x650 |
