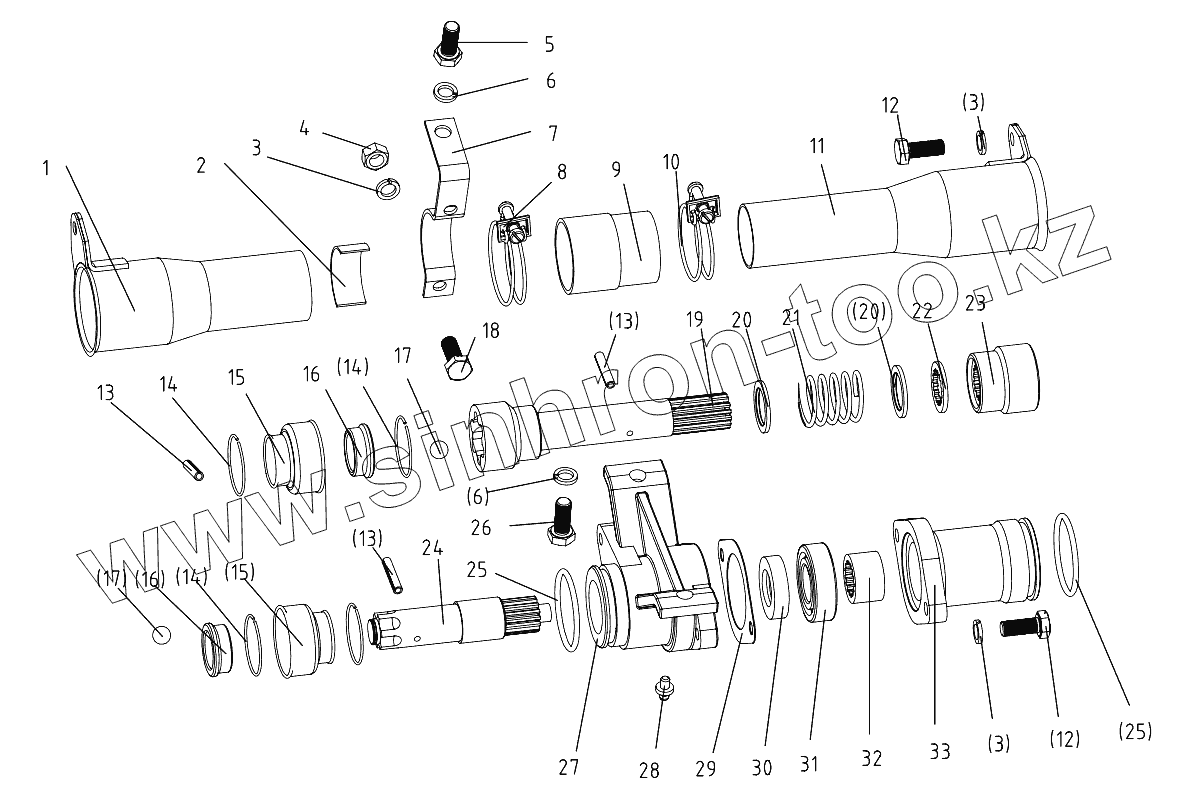

Каталог запасных частей к технике: DongFeng 304G2. Transmission shaft

Тип техники

Марка

Модель

Схема

1

2

3

3

3

4

5

6

6

7

8

9

10

11

12

12

13

13

13

14

14

14

15

15

16

16

17

17

18

19

20

20

21

22

23

24

25

25

26

27

28

29

30

31

32

33

Позиция на иллюстрации	Заводской номер детали		Название детали
1	354.36.012		Front housing
2	304.36.114		Rubber pad
3	GB/T93-1987-8		Spring lock washer 8
4	GB/T6170-2000-M8		Hex. Nut M8
5	GB/T5783-2000-M10x20		Hex.head bolt M10x20
6	GB/T93-1987-10		Spring lock washer 10
7	254D.36.104		Sleeve ring
8	304.36.014		Hoop 53
9	304.36.103		Seal sleeve
10	304.36.015		Hoop 48
11	304.36.016		Rear housing
12	GB/T5783-2000-M8x25		Hex. head bolt M8x25
13	GB/T879.1-2000-4x30		Slotted spring pin 4x30
14	GB/T343-1994-I-1.4		Steel wire I-1.4
15	304.36.108		Rubber cover
16	304.36.101		Support sleeve
17	GB/T308-2002-9		Steel ball dia.9
18	GB/T5783-2000-M8x20		Hex. head bolt M8x20
19	354.36.011		Transmission shaft
20	304.36.104		Blocking ring (2)
21	304.36.105		Spring
22	304.36.106		Seal blocking ring
23	304.36.107		Rear connecting-sleeve
24	304G2.36.102		Rear mid-shaft
25	GB/T3452.1-1992-48.7x3.55		O-ring seal 48.7x3.55
26	GB/T5783-2000-M10x25		Hex. head bolt M10x25
27	304.36.109		Mid-shaft seat
28	JB/T7940.1-1995-M10x1		Grease cup M10x1
29	304.36.110		Paper gasket
30	HG4-692-67-PG25x42x10		Oil seal PG25x42x10
31	GB/T276-1994-6205-Z		Ball bearing with shields 6205-Z
32	304.36.113		Connecting sleeve
33	254G2.36A.104		Mid-shaft seat
