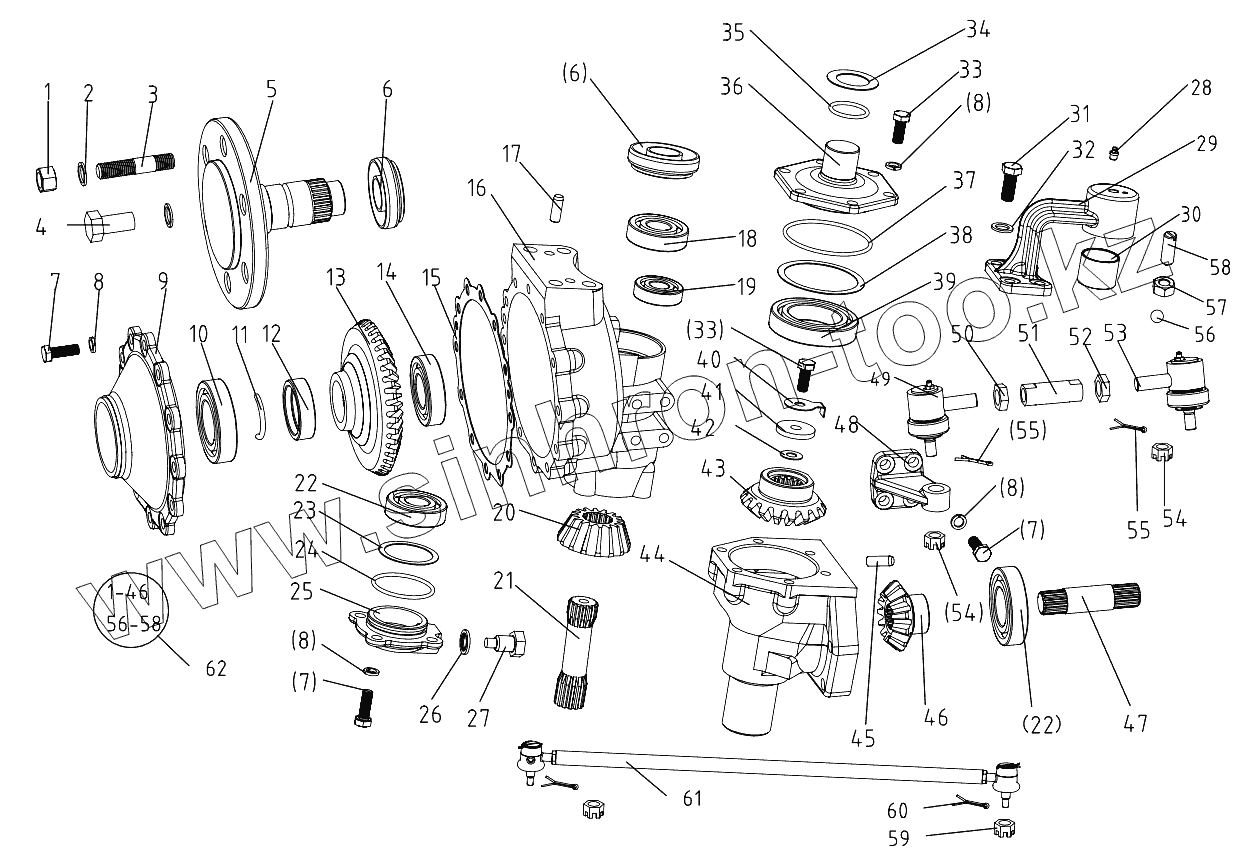

Каталог запасных частей к технике: DongFeng 304G2. Front Wheel Drive Axle (Left Side-Slowdown)
1
1
2
3
4
5
6
6
7
7
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
47
48
49
50
51
52
53
54
54
55
55
56
56
57
58
58
59
60
61
61
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T6176-2000-M18x1.5 | Hex. nut M18x1.5 | |
| 2 | GB/T93-1987-18 | Spring lock washer 18 | |
| 3 | 304.31.179 | Double screw bolt | |
| 4 | GB/T5786-2000-M18x1.5x35 | hex. head bolt M18x1.5x35 | |
| 5 | 304.31.101-3 | Drive shaft | |
| 6 | 404-9.31.111 | Oil-seal MC50x72x12/15 | |
| 7 | GB/T5783-2000-M10x30 | Hex. head bolt M10x30 | |
| 8 | GB/T93-1987-10 | Spring lock washer 10 | |
| 9 | 304.31.104-3 | Drive shaft cover | |
| 10 | GB/T276-1994-6209 | Ball bearing 6209 | |
| 11 | 304.31.102-2 | Fixing ring of drive shaft | |
| 12 | 304.31.103-2 | Drive shaft sleeve | |
| 13 | 304.31.132-3 | Driven bevel gear of final drive | |
| 14 | GB/T276-1994 | Подшипник | |
| 15 | 304.31.105-1 | Gasket for drive shaft cover | |
| 16 | 304.31.228-5 | Left final drive housing | |
| 17 | GB/T119.2-2000-A10x24 | Straight pin A10x24 | |
| 18 | GB/T276-1994-61910 | Ball bearing 61910 | |
| 19 | GB/T297-1994-32909 | Tapered roller bearing 32909 | |
| 20 | 304.31.131-3 | Driving bevel gear of final drive | |
| 21 | 304.31.107-4 | Upright shaft | |
| 22 | GB/T276-1994 | Подшипник | |
| 23 | 850-2.39.112/113/114 | Adjusting shims | |
| 24 | GB/T3452.1-1992-75x2.65 | O-ring seal 75x2.65 | |
| 25 | 304.31.137-3 | Lower bearing cover | |
| 26 | JB-FT-CU-16 | Copper washer 16 | |
| 27 | 200.38.024 | Oil drain plug | |
| 28 | JB/T7940.1-1995-M8x1 | Grease cup M8x1 | |
| 29 | 254G2.31B.101 | Left steering arm | |
| 29 | 254G2.31B.101A | Left steering arm | |
| 30 | 304.31.202-1 | Steering arm bushing | |
| 31 | GB/T5783-2000-M12x40 | Hex. head bolt M12x40 | |
| 32 | GB/T93-1987-12 | Spring lock washer 12 | |
| 33 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 | |
| 34 | 304.31.249/250/251/252 | Steering arm adusting shim | |
| 35 | GB/T3452.1-1992-34.5x2.65 | O-ring seal 34.5x2.65 | |
| 36 | 304.31.111-4 | Upper bearing cover | |
| 37 | GB/T3452.1-1992-85x2.65 | O-ring seal 85x2.65 | |
| 38 | 304.31.133 | Adjusting shims for the first drive | |
| 39 | GB/T276-1994-6011 | Ball bearing 6011 | |
| 40 | 304.31.138 | Lock washer | |
| 41 | 304.31.110-1 | Blocking ring of upright shaft | |
| 42 | 304.31.112-2 | Adjusting shims | |
| 43 | 304.31.113-1 | Driven bevel gear of the first drive | |
| 44 | 254G2.31B.103 | Upright shaft housing | |
| 45 | GB/T119.2-2000-A10x20 | Straight pin A10x20 | |
| 46 | 304.31.129-1 | Driving bevel gear of the first drive | |
| 47 | 254G2.31.106 | Half shaft | |
| 48 | 254D.31.120 | Left steering trapezoid arm | |
| 49 | 450.31.024-1 | Linkage ball joint (Left) | |
| 50 | GB/T6173-2000-M18x1.5-Left | Hex.thin nut M18x1.5-Left | |
| 51 | 254G2.31A.110-1 | Steering tie rod | |
| 52 | GB/T6173-2000-M18x1.5 | Hex.thin nut M18x1.5 | |
| 53 | 450.31.026-1 | Linkage ball joint (Right) | |
| 54 | GB/T6181-1986-M14 | Hex. thin slotted nut M14 | |
| 55 | GB/T91-2000-3.2x24 | Split pin 3.2x24 | |
| 56 | GB/T308-2002-8.7312G200b | Ball 8.7312G200b | |
| 57 | GB/T6171-2000-M10x1 | Fine thread hex. nut M10x1 | |
| 58 | 504.31.144 | Set screw M10x1 | |
| 59 | GB/T6181-1986-M12 | Hex. thin slotted nut M12 | |
| 60 | GB/T91-2000-3.2x32 | Split pin 3.2x32 | |
| 61 | 200.31B.017-1 | Steering drag link | |
| 61 | 300.31.017-1 | Steering drag link | |
| 62 | Left final drive housing assembly | Left final drive housing assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
