Каталог запасных частей к технике: DongFeng 304G2. Brake Operation Mechanism
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
52
52
53
54
55
56
57
58
59
60
61
62

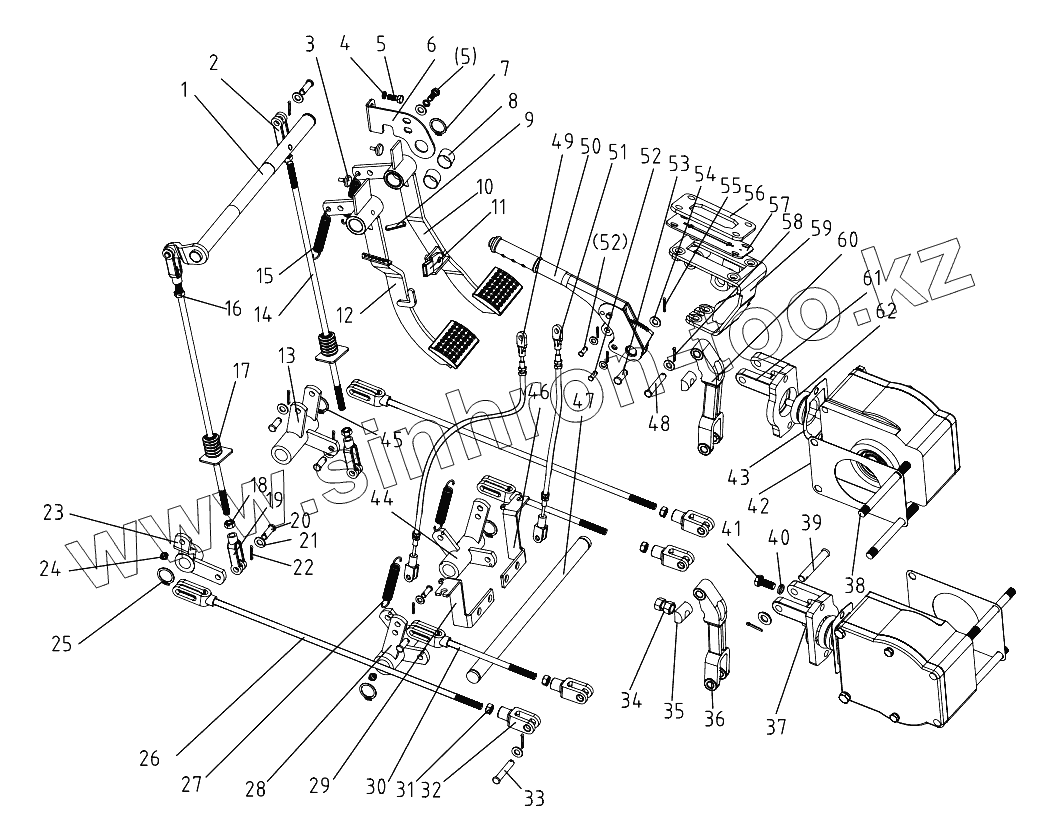

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 404G2-6F.43.018 | Brake transmission axis | |
| 2 | 254G2.43.106 | Draw rod fork | |
| 3 | 504G3.43.101 | Rubber plug | |
| 4 | GB/T93-1987-8 | Spring lock washer 8 | |
| 5 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 6 | 504G3.43.104 | Support board | |
| 7 | GB/T894.1-1986-25 | Circlip for shaft 25 | |
| 8 | 504G3.43.135 | Bush(2520) | |
| 9 | GB/T879.4-2000-8x40 | Spring split pin 8x40 | |
| 10 | 504G3.43.033 | Right brake lever weldment | |
| 11 | GB/T13527.2-1992-DT-14x0.6 | DT-14x0.6 | |
| 12 | 404G2-6F.43.032 | Left brake lever weldment | |
| 13 | 404G2-6F.43.012 | Left cannula weldment | |
| 14 | 404G2-6F.43.126 | Front pull rod | |
| 15 | 504G3.43.103-1 | Return spring | |
| 16 | GB/T6171-2000-M10x1-L | Fine thread hex. nut | |
| 17 | 504G3.43.110 | Rubber sheath | |
| 18 | GB/T6171-2000-M10x1 | Fine thread hex. nut M10x1 | |
| 19 | 300.21A.148 | Rod clevis | |
| 20 | GB/T882-1986-B10x30 | Clevis pin with head B10x30 | |
| 21 | GB/T97.1-2002-10 | Plain washer 10 | |
| 22 | GB/T91-2000-3.2x20 | Split pin 3.2x20 | |
| 23 | 404G2-6F.43.011 | Right cannula weldment | |
| 24 | JB/T7940.1-1995- M10x1 | Angle grease nipple M10x1 | |
| 25 | GB/T894.1-1986-22 | Circlip for shaft 22 | |
| 26 | 304G2-6F.43.019 | Rear brake pull link weldment | |
| 27 | 254G3.38.118 | Returning spring | |
| 28 | 404G2-6F.43.013 | Left hand brake cannula weldment | |
| 29 | 404G2-6F.43.016 | Left hand brake stay wire mounting pan | |
| 30 | 304G2-6F.43.020 | Hand brake pull link weldment | |
| 31 | GB/T 6170-2000-M10 | Hex .nut M10 | |
| 32 | 280.43.107 | Rod clevis | |
| 33 | GB/T882-1986-B12x75 | Clevis pin with head B12x75 | |
| 34 | GB /T6170-2000-M12 | Hex. nut M12 | |
| 35 | 280.43.105 | Self-aligning block | |
| 36 | 404G2-6F.43.109 | Right brake rocker arm | |
| 37 | 280.43.104 | Left rocker arm pedestal | |
| 38 | GB/T899-1988-GM12x130 | Double end stud GM12x130 | |
| 39 | GB/T882-1986-B12x70 | Clevis pin with head B12x70 | |
| 40 | GB/T93-1987-10 | Spring lock washer 10 | |
| 41 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 | |
| 42 | 280.43.122-1 | Brake gasket | |
| 43 | 280.43.103 | Paper gasket | |
| 44 | 404G2-6F.43.014 | Right hand brake cannula weldment | |
| 45 | GB/T894.1-1986-24 | Circlip for shaft 24 | |
| 46 | 404G2-6F.43.015 | Right hand brake stay wire mounting pa | |
| 47 | 404G2-6F.43.101 | Rear brake transmission axis | |
| 48 | GB/T882-1986-B12x70 | Clevis pin with head B12x70 | |
| 49 | 404G2-6F.43.022 | Left hand brake stay wire | |
| 50 | 300-6.43.015 | Hand brake assembled | |
| 50 | 504G3-3.43.025 | Hand brake | |
| 51 | 404G2-6F.43.021 | Right hand brake stay wire | |
| 52 | GB/T882-1986-B10x40 | Clevis pin with head B10x40 | |
| 53 | GB/T882-1986-B16x40 | Clevis pin with head B16x40 | |
| 54 | GB/T97.1-2002-16 | Plain washer 16 | |
| 55 | GB/T91-2000-4x25 | Split pin4x25 | |
| 56 | 504G3-3.51.110 | Brake control device keep plate | |
| 57 | 504G3-3.51.111 | Rubber blanket | |
| 58 | GB/T91-2000-3.2x28 | Split pin 3.2x28 | |
| 59 | 404G2-6F.43.025 | Hand brake fix board | |
| 60 | 404G2-6F.43.108 | Left brake rocker arm | |
| 61 | 280.43.110 | Right rocker arm pedestal | |
| 62 | 280.43.118-1 | Seal cartridge |
