Каталог запасных частей к технике: DongFeng 304EC. Transmission shaft

Тип техники

Марка

Модель

Схема

1

2

3

4

4

5

6

6

7

8

9

10

11

12

12

12

13

13

13

14

14

15

15

16

16

17

18

18

19

20

21

22

23

23

24

25

26

27

28

29

30

31

32

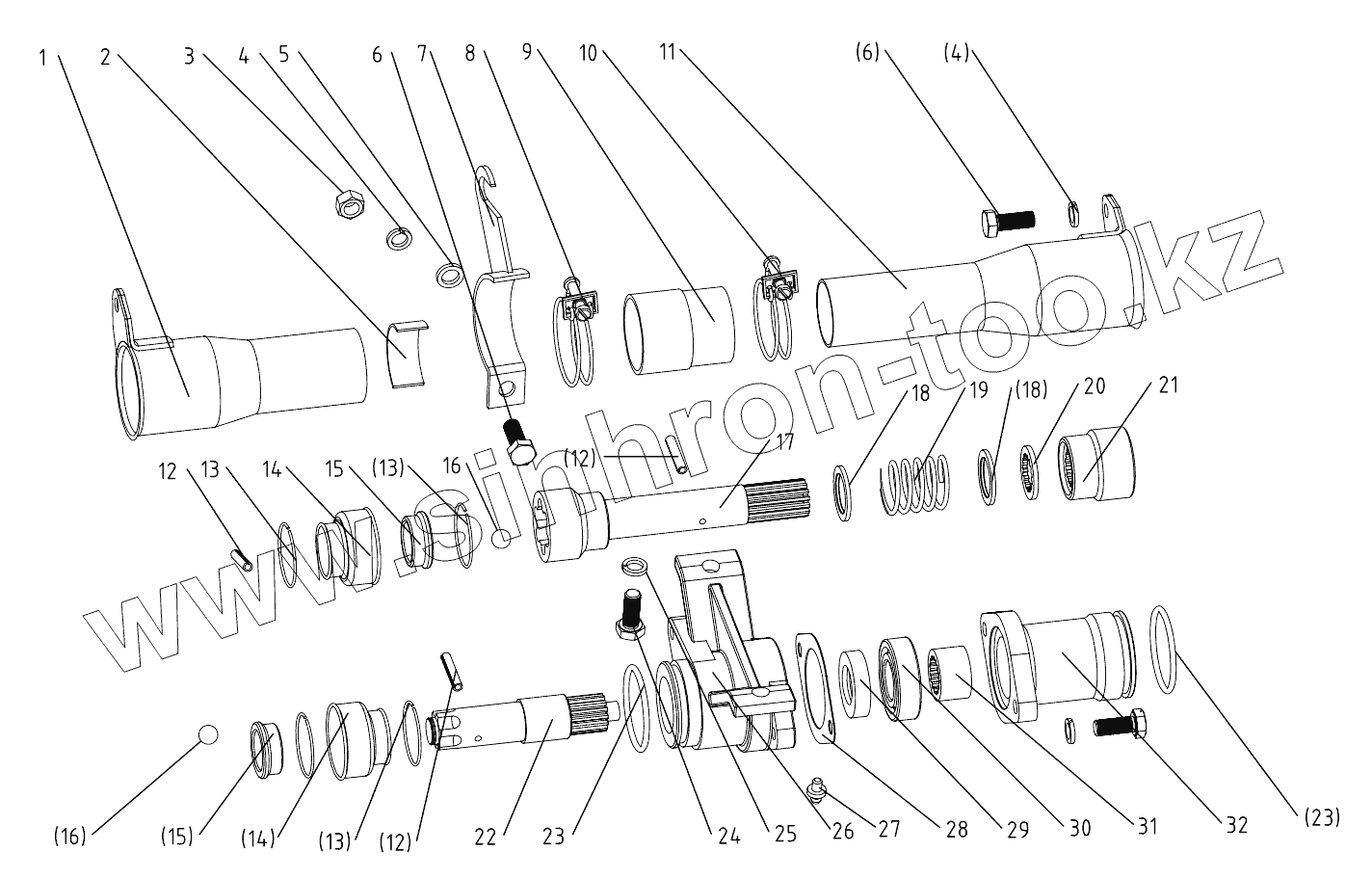

Позиция на иллюстрации	Заводской номер детали		Название детали
1	304.36.012		Front housing
2	304.36.114		Rubber pad
3	GB/T6170-2000-M8		Hex. Nut M8
4	GB/T93-1987-8		Spring lock washer 8
5	GB/T97.1-2002-8		Plain washer 8
6	GB/T5783-2000-M8x25		Hex. head bolt M8x25
7	304.36.013-1		Fixing bracket
8	304.36.014		Hoop 53
9	304.36.103		Seal sleeve
10	304.36.015		Hoop 48
11	304.36.016		Rear housing
12	GB/T879.1-2000- 4x30		Slotted spring pin 4x30
13	GB/T3081-1982-I-1.4		Steel wire I-1.4
14	304.36.108		Rubber cover
15	304.36.101		Support sleeve
16	GB/T308-2002-9		Steel ball dia.9
17	304-6.36.011		Transmission shaft
18	304.36.104		Blocking ring (2)
19	304.36.105-1		Spring
20	304.36.106		Seal blocking ring
21	304.36.107		Rear connecting-sleeve
22	304A .36.107		Rear mid-shaft
23	GB/T3452.1-1992-48.7x3.55		O-ring seal 48.7x3.55
24	GB/T5783-2000-M10x25		Hex. head bolt M10x25
25	GB/T93-1987-10		Spring lock washer 10
26	304.36.109		Mid-shaft seat
27	GB/T1152-1995- M10x1		Grease cup M10x1
28	304.36.110		Paper gasket
29	HG4-692-67-PG25x42x10		Oil seal PG25x42x10
30	GB/T276-1994-60205		Ball bearing with shields 60205
31	304.36.113		Connecting sleeve
32	304A.36.106		Mid-shaft housing
