Каталог запасных частей к технике: DongFeng 254G2. Foot Mud Shields Rest
1
2
2
3
3
4
4
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
14
15
15
16
16
17
18
19
20
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
33
33
34
34
35
36
37
38
39
39
40
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
64

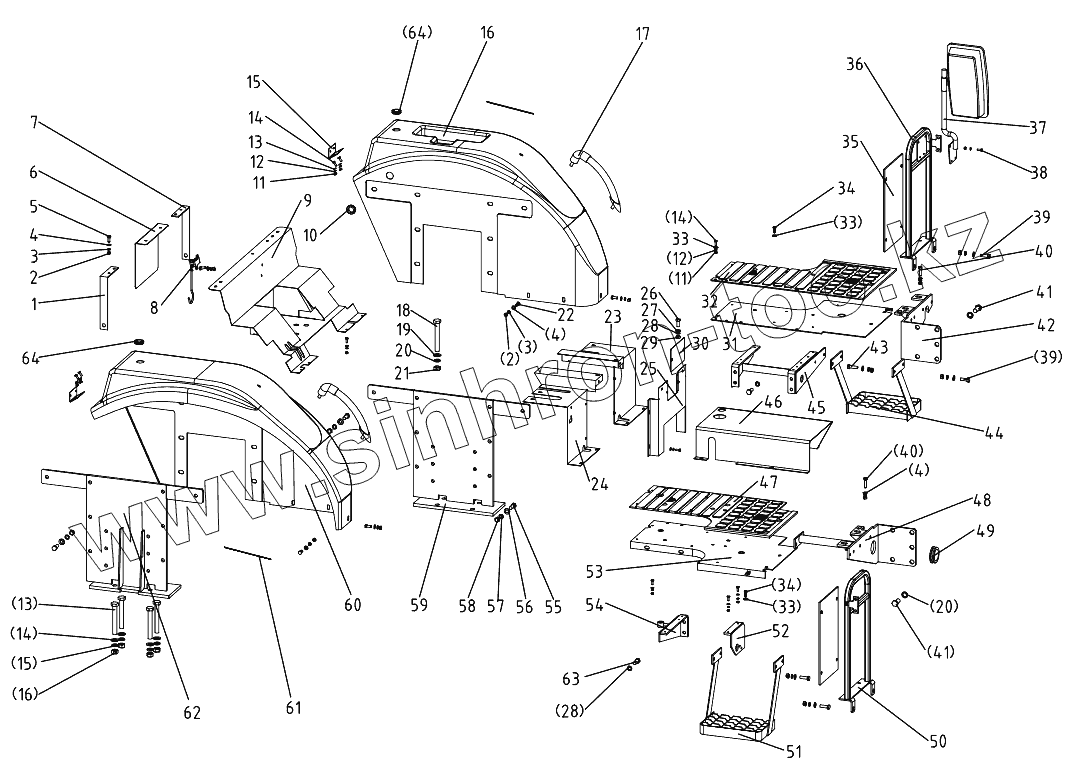

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 304G2-6.51.105 | Right bracket rest of Back close board | |
| 2 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 3 | GB/T97.1-2002-8 | Plain washer 8 | |
| 4 | GB/T93-1987-8 | Spring lock washer 8 | |
| 5 | GB/T5783-2000-M8x20 | Hex. head bolt M8x20 | |
| 6 | 304G2-6E.51.101 | Back number stay | |
| 7 | 304G2-6.51.110 | Left bracket rest of Back close board | |
| 8 | 304G2-6.51.031 | Suspender | |
| 9 | 304G2-6E.51.028 | Back close board | |
| 10 | 304G2-6.51.106 | Sealing rubber ring | |
| 11 | GB/T6170-2000-M6 | Hex. Nut M6 | |
| 12 | GB/T97.1-2002-6 | Plain washer 6 | |
| 13 | GB/T93-1987-6 | Spring lock washer 6 | |
| 14 | GB/T5783-2000-M6x16 | Hex.head bolt M6x16 | |
| 15 | 404-11.51.107 | Back eflex reflector subpanel | |
| 16 | 304G2-6.51.019 | Left mud Shield | |
| 17 | 550.51C.204 | Handle hold | |
| 18 | GB/T5783-2000-M16x165 | Hex. head bolt M6x165 | |
| 19 | GB/T97.1-2002-16 | Plain washer 16 | |
| 20 | GB/T93-1987-16 | Spring Lock washer16 | |
| 21 | GB/T6170-2000-M16 | Hex .nut M16 | |
| 22 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 23 | 304G2-6.51.016 | Left close board | |
| 24 | 304G2-6.51.017 | Right close board | |
| 25 | 304G2-6.51.018 | Central board | |
| 26 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 | |
| 27 | GB/T97.1-2002-10 | Plain washer 10 | |
| 28 | GB/T93-1987-10 | Spring lock washer 10 | |
| 29 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 30 | 304G2.51.203 | Cover board | |
| 31 | 304G2-6E.51.013 | Left foot rest | |
| 32 | 304G2-6E.51.107 | Left foot rest rubber board | |
| 33 | GB/T96-2002-6 | Plain washer 6 | |
| 34 | GB/T818-2000-M6x20 | Philips pan head screw M6x20 | |
| 35 | 304G2-6.51.030 | Windscreen | |
| 36 | 304G2-6.51.025-1 | Left frame | |
| 37 | 1B17382 x 0001 | Driving mirror | |
| 38 | GB/T5783-2000-M6x20 | Hex.head bolt M6x20 | |
| 39 | GB/T5783-2000-M10x30 | Hex. head bolt M10x30 | |
| 40 | GB/T5783-2000-M8x35 | Hex. Head bolt M8x35 | |
| 41 | GB/T5783-2000-M16x35 | Hex. head bolt M16x35 | |
| 42 | 304G2-6.51.011-1 | Left Front bracket rest | |
| 43 | GB/T5783-2000-M10x40 | Hex. head bolt M10x40 | |
| 44 | 304G2-6.51.015 | Left foot ladder | |
| 45 | 254G2.51A.014 | Left bracket joint | |
| 46 | 304G2-6.51.102 | Gear box cap tray | |
| 47 | 304G2-6E.51.108 | Right foot rest rubber board | |
| 48 | 304G2-6.51.029-2 | Right-front bracket joint | |
| 49 | 254G2.51.108 | Rudder nest | |
| 50 | 304G2-6.51.026-1 | Right frame | |
| 51 | 304G2-6.51.027-1 | Right foot ladder | |
| 52 | 304G2-6.51.023 | Right floor gibbet (I) | |
| 53 | 304G2-6E.51.014 | Right foot rest | |
| 54 | 304G2-6.51.024-1 | Right floor gibbet (II) | |
| 55 | GB/T5783-2000-M12 X 30 | Hex. head bolt M12x30 | |
| 56 | GB/T93-1987-12 | Spring lock washer 12 | |
| 57 | GB/T97.1-2002-12 | Plain washer 12 | |
| 58 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 59 | 304G2-6E.51.021 | Left bracket joint | |
| 60 | 304G2-6.51.020 | Right mud Shield | |
| 61 | TFT.70.012 | 30# draught excluder strip | |
| 62 | 304G2-6E.51.022 | Rightt bracket joint | |
| 63 | GB/T5783-2000-M10 X 20 | Hex. head bolt M10x20 | |
| 64 | 200.47A.316 | Right mud Shield |
