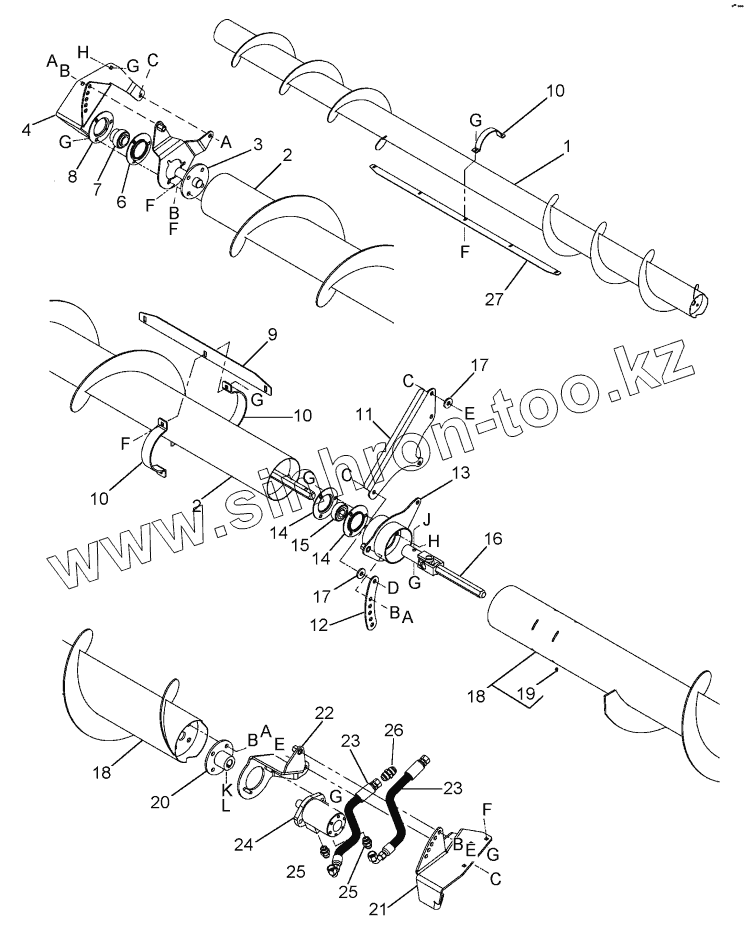

Каталог запасных частей к технике: CASE IH Жатка-2152. UPPER CROSS AUGER (ATTACHMENT)
1
1
2
2
2
2
2
2
3
3
3
4
6
7
8
9
10
10
10
11
12
13
14
14
14
14
15
16
17
17
17
17
18
18
19
20
21
22
22
22
23
23
24
25
25
26
27
A
A
A
A
B
B
B
B
B
C
C
C
C
D
E
E
E
F
F
F
F
F
G
G
G
G
G
G
G
G
H
H
J
K
L
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| NSS | NSS | NOT SERVICED SEPARATELY | |
| NSS | NSS | NOT SERVICED SEPARATELY | |
| NSS | NSS | NOT SERVICED SEPARATELY | |
| NSS | NSS | NOT SERVICED SEPARATELY | |
| NSS | NSS | NOT SERVICED SEPARATELY | |
| 1 | 87585181 | AUGER | |
| 1 | 87585182 | AUGER | |
| 2 | 87585171 | AUGER | |
| 2 | 87585178 | AUGER | |
| 2 | 87585179 | AUGER | |
| 3 | 87585176 | AUGER | |
| 3 | 87585177 | AUGER | |
| 3 | 87585180 | AUGER | |
| 4 | 219-8 | NIPPLE | |
| 5 | 87585428 | SHAFT | |
| 6 | 87627082 | SHAFT | |
| 7 | 87627083 | BEARING | |
| 8 | 87627084 | SUPPORT ASSY | |
| 9 | BRACKET | BRACKET | |
| 10 | 87585406 | PLATE ASSY | |
| 11 | 87735707 | Center Mount | |
| 12 | 87655434 | SUPPORT | |
| 13 | 87459410 | CLAMP | |
| 14 | 87585190 | BAR | |
| 14 | 87585191 | BAR | |
| 15 | 428426A1 | FLANGE | |
| 16 | 87566352 | INSERT | |
| 17 | 87735706 | Shim | |
| 17 | 495-21056 | WASHER | |
| 18 | 428425A1 | FLANGE | |
| 19 | 87585353 | CHAIN ASSY(CE) | |
| 20 | 87627086 | BRACKET | |
| 21 | 87627085 | BRACKET | |
| 22 | 87585346 | HOSE ASSY | |
| 22 | 87585345 | HOSE ASSY | |
| 22 | 87585343 | HOSE ASSY | |
| 23 | 87627078 | MOTOR | |
| 429255A1 | 429255A1 | KIT | |
| 24 | 218-5062 | CONNECTOR | |
| 25 | 144121 | CONNECTOR | |
| 26 | 219603 | ELBOW | |
| 27 | 432-828 | PIN | |
| 28 | 87627081 | SPACER | |
| 29 | 87383360 | STRAP | |
| 29 | 87383361 | STRAP | |
| 30 | 470375C1 | CLAMP | |
| 31 | 86511946 | SCREW | |
| A | 87909 | BOLT | |
| B | 492-11050 | WASHER | |
| C | 231-4148 | NUT | |
| D | 87689 | BOLT | |
| E | 87670 | BOLT | |
| F | 88682 | BOLT | |
| G | 86521609 | NUT | |
| H | 86508748 | BOLT | |
| J | 88436 | BOLT | |
| K | 86509499 | NUT | |
| L | 80435 | SET SCREW |
