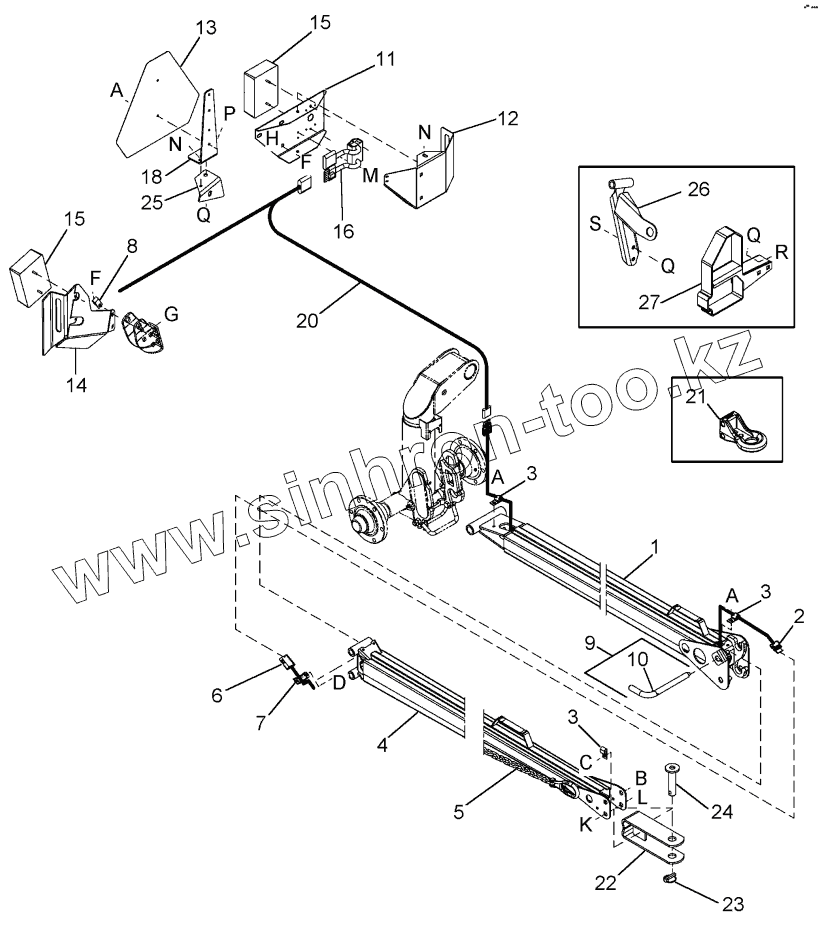

Каталог запасных частей к технике: CASE IH Жатка-2152. TRANSPORT - HITCH AND LIGHTS (OPTION)
1
2
3
3
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
16
16
18
20
21
22
23
24
25
26
27
A
A
A
B
C
D
F
F
G
H
K
L
M
N
N
P
Q
Q
Q
R
S
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 87585324 | HITCH ASSY | |
| 2 | HARNESS | HARNESS | |
| 2 | 87585322 | HARNESS | |
| 3 | 352693A1 | HOLDER | |
| 4 | 87714768 | HITCH ASSY | |
| 5 | 87585230 | CHAIN | |
| 6 | HARNESS | HARNESS | |
| 6 | 87585323 | HARNESS | |
| 7 | 87714767 | CLIP | |
| 7 | 87585254 | CLIP | |
| 8 | 87566342 | CLAMP | |
| 9 | 87585914 | PIN | |
| 10 | 118827 | PIN | |
| 11 | 87585474 | SUPPORT ASSY | |
| 12 | 87585278 | COVER ASSY | |
| 13 | 87585413 | REFLECTOR | |
| 14 | 87585470 | SUPPORT ASSY | |
| 15 | 369989A1 | LAMP | |
| 16 | 362463A1 | LAMP | |
| 16 | RELAY | RELAY | |
| 18 | 87585471 | SUPPORT ASSY | |
| 20 | 347506A1 | HARNESS | |
| 21 | 362451A1 | HITCH ASSY | |
| 22 | 347549A1 | CLEVIS | |
| 23 | 362443A1 | PIN | |
| 24 | 410682A1 | PIN | |
| 25 | REF | INSTRUCTION | |
| 26 | 87585469 | SUPPORT ASSY | |
| 27 | 87585468 | SUPPORT ASSY | |
| 28 | SUPPORT | SUPPORT | |
| 30 | 410679A1 | RING | |
| 31 | REF | INSTRUCTION | |
| 32 | HARNESS | HARNESS | |
| 33 | 87725608 | SUPPORT | |
| A | 281-54812 | SCREW | |
| B | 87872 | BOLT | |
| C | 87034814 | NUT | |
| D | 87585926 | SCREW | |
| E | 80280806 | BOLT | |
| F | 86521609 | NUT | |
| G | 88682 | BOLT | |
| H | 280430 | BOLT | |
| J | 260-14412 | SCREW | |
| K | 86977740 | BOLT | |
| L | 86521611 | NUT | |
| M | 275-14510 | SCREW | |
| N | 281-54910 | SCREW | |
| P | 9706716 | BOLT | |
| Q | 87323841 | NUT | |
| R | 280486 | BOLT | |
| S | 87909 | BOLT | |
| U | 88043 | BOLT |
